RSK-2405SRUW/H3

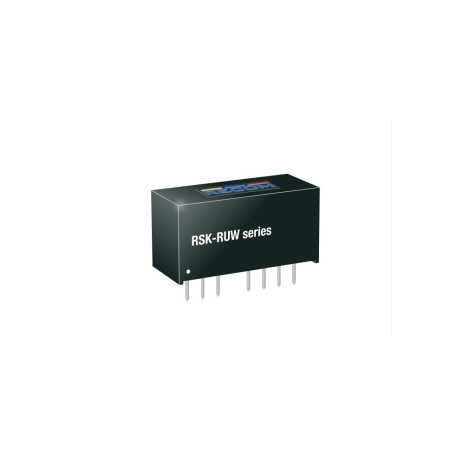

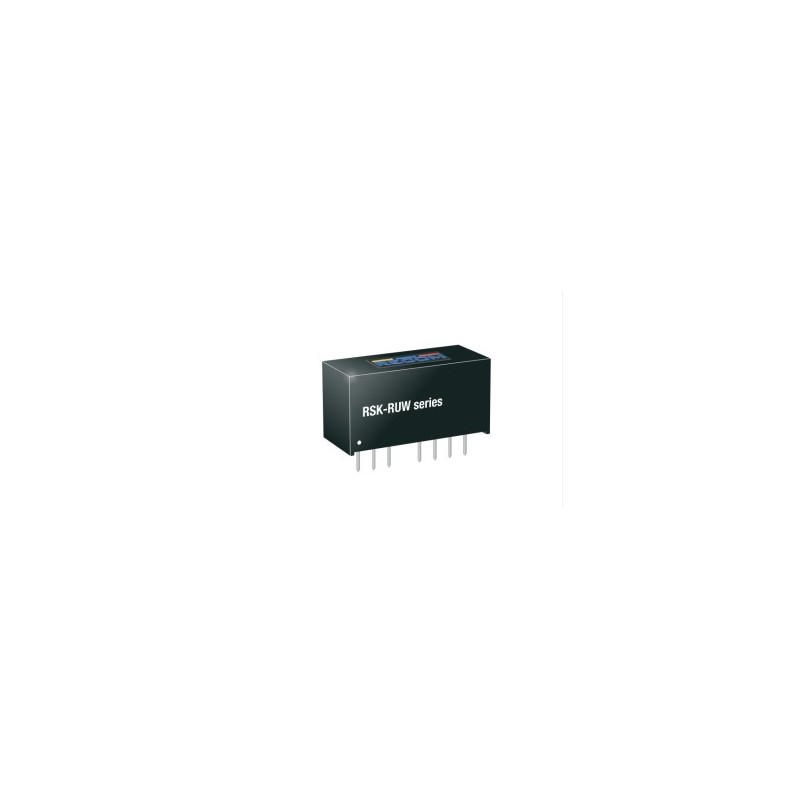

Recom DC/DC converter series RSK-RUW

DC/DC converter modules in a SIL8 housing with 2W, a regulated output voltage and an ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They have an input voltage ratio of 8:1, require no minimum load and comply with EN62368-1. We offer the following types of this Recom series: RSK-2405SRUW/H3 and  RSK-2412SRUW/H3/ADJ.

  • single output
  • output: 2W
  • output voltage tolerance: ±3%
  • withstand voltage I/P-O/P: 3000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,7g
RSK-2405SRUW/H3, Recom DC/DC converters, 2W, SIL8 housing, RSK-RUW series

RSK-2405SRUW/H3

242820 RSK-2405SRUW/H3 RSK-2405SRUW/H3 Recom DC/DC converter series RSK-RUW. DC/DC converter modules in a SIL8 housing with 2W, a regulated output voltage and an ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They have an input voltage ratio of 8:1, require no minimum load and comply with EN62368-1. We offer the following types of this Recom series: RSK-2405SRUW/H3 and  RSK-2412SRUW/H3/ADJ. single output output: 2W output voltage tolerance: ±3% withstand voltage I/P-O/P: 3000V DC operating temperature: -40 to +105°C dimensions: 21,8x9,2x11,1mm weight: 4,7g

Specifications

manufacturer
Manufacturer's name RSK-2405SRUW/H3
Input voltage [V] 4,5...36
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 88,5
Ripple [mVp-p] 50
Data Sheet

Unit price

8,49 €

Stock: 42
Further delivery:
CW 08/2025
