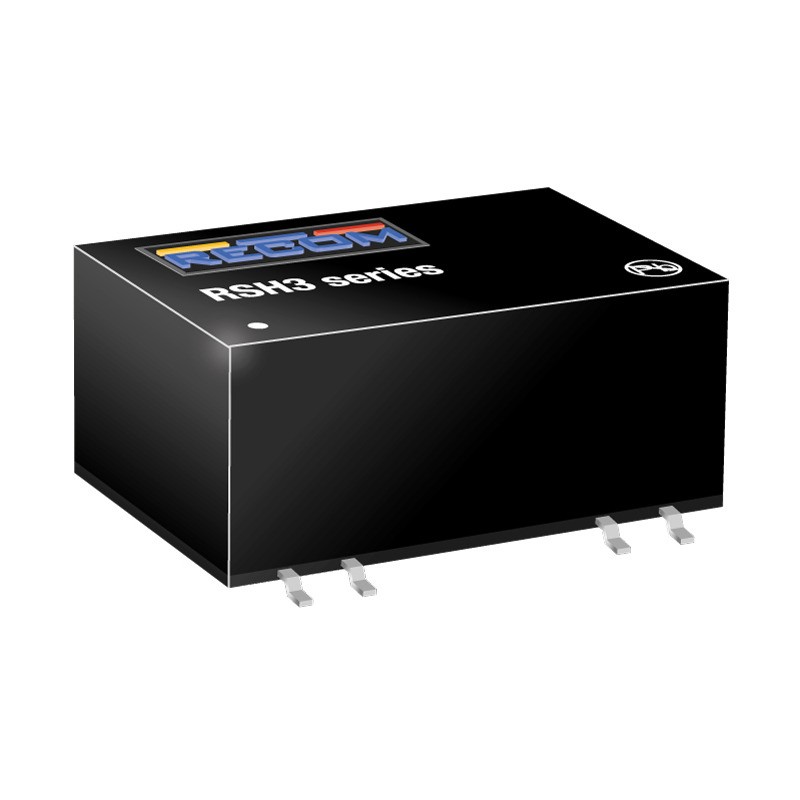

RSH3-2412D/H2

Recom DC/DC converter series RSH3

DC/DC converters in a DIL14 housing with 3W and an isolation voltage of 2kV DC. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have a single (RSH3-_S/H2) or a dual output (RSH3-_D/H2) and comply with EN62368-1, EN55032, EN55035 as well as EN55024. We offer the following types of this Recom series: RSH3-1205S/H2, RSH3-2405S/H2, RSH3-2412D/H2 and RSH3-2415D/H2.

  • single and dual output
  • output: 3W
  • output voltage tolerance: ±1%
  • maximal ripple and noise: 75mVpp
  • withstand voltage I/P-O/P: 2000V DC
  • operating temperature: -40 to +100°C
  • dimensions: 18,9x17,2x8,7mm
  • weight: 2,5g
RSH3-2412D/H2, Recom DC/DC converters, 3W, DIL14 housing, RSH3 series

RSH3-2412D/H2

242043 RSH3-2412D/H2 RSH3-2412D/H2 Recom DC/DC converter series RSH3. DC/DC converters in a DIL14 housing with 3W and an isolation voltage of 2kV DC. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have a single (RSH3-_S/H2) or a dual output (RSH3-_D/H2) and comply with EN62368-1, EN55032, EN55035 as well as EN55024. We offer the following types of this Recom series: RSH3-1205S/H2, RSH3-2405S/H2, RSH3-2412D/H2 and RSH3-2415D/H2. single and dual output output: 3W output voltage tolerance: ±1% maximal ripple and noise: 75mVpp withstand voltage I/P-O/P: 2000V DC operating temperature: -40 to +100°C dimensions: 18,9x17,2x8,7mm weight: 2,5g

Specifications

manufacturer
Manufacturer's name RSH3-2412D/H2
Output voltage [V] ±12
Input voltage range [V] 18...36
Output current [mA] ±125
Efficiency [%] 83
Data Sheet

Unit price

10,69 €

Stock: 174
Further delivery:
CW 10/2025
