RS6-2415S

Recom DC/DC converter series RS6

DC/DC converters in a SIL8 housing with 6W, suitable for direct PCB mounting and available with either a single (RS6_S) or dual output (RS6_D), offer an exceptional power density of 2.7W/cm³. These devices comply with EN60950-1, EN55032 class A as well as B standards and feature continuous short circuit protection. They are designed specifically for industrial applications where high performance is required from compact components that can be easily integrated into existing systems without the need for additional space-consuming equipment. We offer various types of this Recom series.

  • single (RS6_S) and dual output (RS6_D)
  • output: 6W
  • maximal ripple and noise: 75mVpp
  • operating temperature: -40 to +75°C
  • weight: 4g

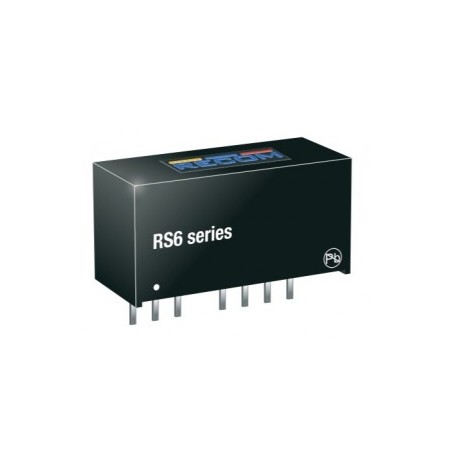

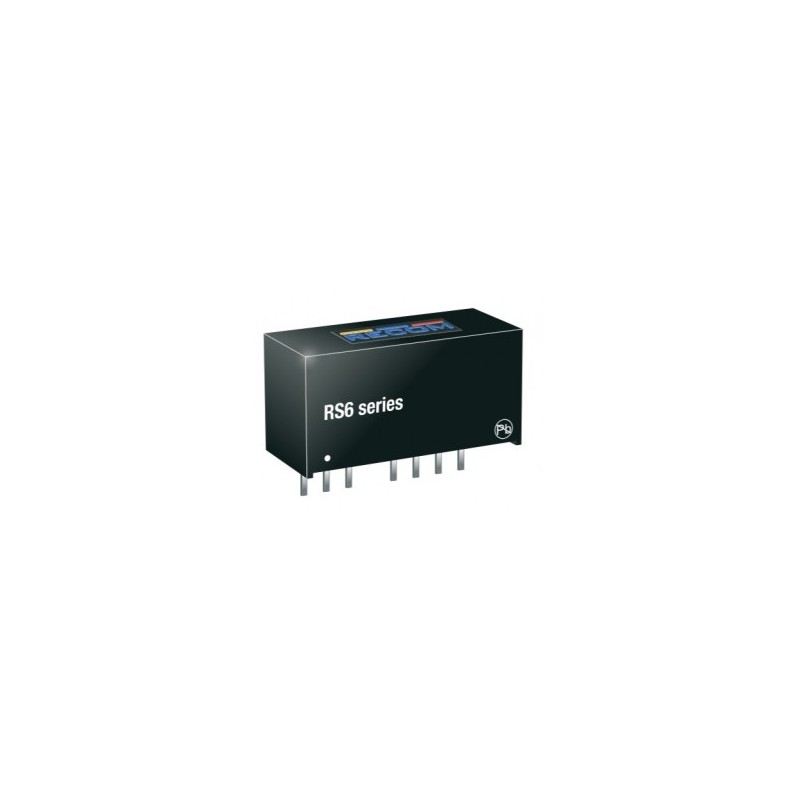

RS6-2415S, Recom DC/DC converters, 6W, SIL8 housing, RS6 series

RS6-2415S

247114 RS6-2415S RS6-2415S Recom DC/DC converter series RS6. DC/DC converters in a SIL8 housing with 6W, suitable for direct PCB mounting and available with either a single (RS6_S) or dual output (RS6_D), offer an exceptional power density of 2.7W/cm³. These devices comply with EN60950-1, EN55032 class A as well as B standards and feature continuous short circuit protection. They are designed specifically for industrial applications where high performance is required from compact components that can be easily integrated into existing systems without the need for additional space-consuming equipment. We offer various types of this Recom series. single (RS6_S) and dual output (RS6_D) output: 6W maximal ripple and noise: 75mVpp operating temperature: -40 to +75°C weight: 4g

Specifications

manufacturer
Manufacturer's name RS6-2415S
Input voltage [V] 18...36
Output voltage [V] 15
Efficiency [%] 87
Output current [mA] 400
Data Sheet

Unit price

15,69 €

Stock: 0
Further delivery:
CW 25/2025
