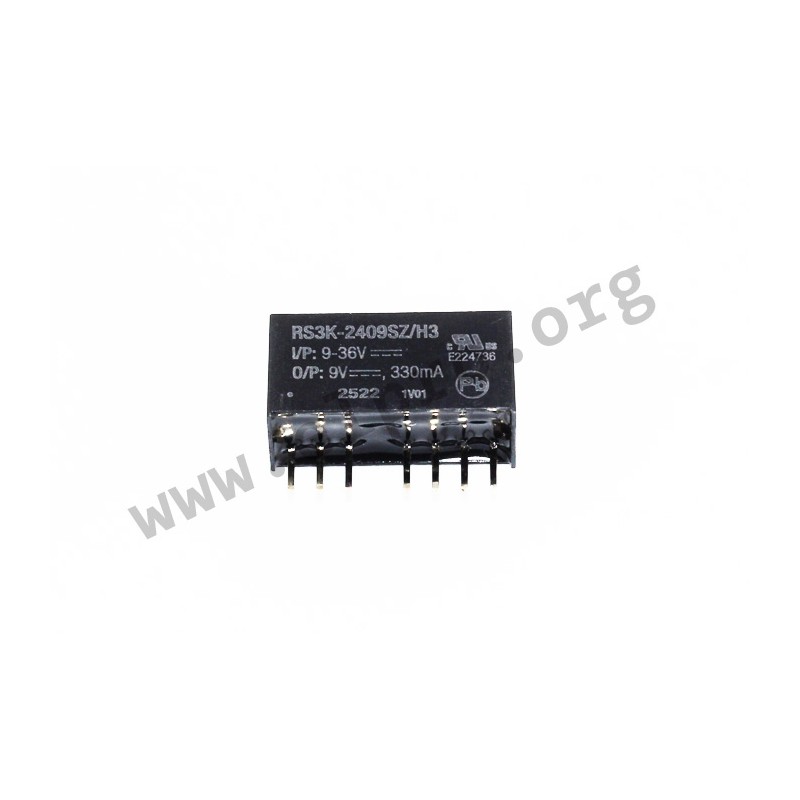

RS3K-0509S/H3

Recom DC/DC converter series RS3K-Z

DC/DC converter modules in a SIL8 housing with 3W and a regulated output voltage. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They require no minimum load, have an input voltage ratio of 2:1 (RS3K) or 4:1 (RS3K-Z) and comply with EN62368-1 as well as EN55032 class B. We offer various types of this Recom series.

  • single output
  • output: 3W
  • maximal ripple and noise: 50mVpp
  • withstand voltage I/P-O/P: 3000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,7g

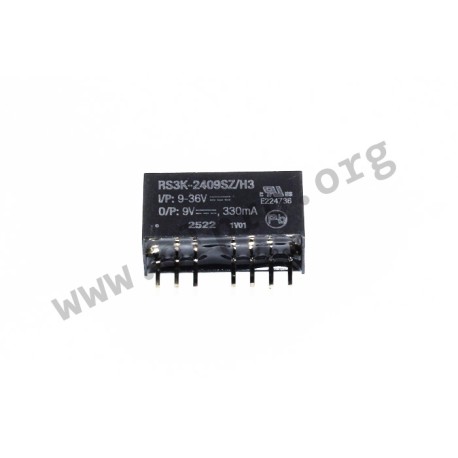

RS3K-0509S/H3, Recom DC/DC converters, 3W, SIL8 housing, RS3K-Z series

RS3K-0509S/H3

247251 RS3K-0509S/H3 RS3K-0509S/H3 Recom DC/DC converter series RS3K-Z. DC/DC converter modules in a SIL8 housing with 3W and a regulated output voltage. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They require no minimum load, have an input voltage ratio of 2:1 (RS3K) or 4:1 (RS3K-Z) and comply with EN62368-1 as well as EN55032 class B. We offer various types of this Recom series. single output output: 3W maximal ripple and noise: 50mVpp withstand voltage I/P-O/P: 3000V DC operating temperature: -40 to +105°C dimensions: 21,8x9,2x11,1mm weight: 4,7g

Specifications

manufacturer
Manufacturer's name RS3K-0509S/H3
Input voltage [V] 4,5...9
Output voltage [V] 9
Output current [mA] 0,33
Efficiency [%] 79
Output voltage tolerance: [%] ±3
Data Sheet

Unit price

7,39 €

Stock: 0
Next incoming goods:
CW 08/2025
22 units

Further delivery:
CW 12/2025
