RS12-483.3SZ

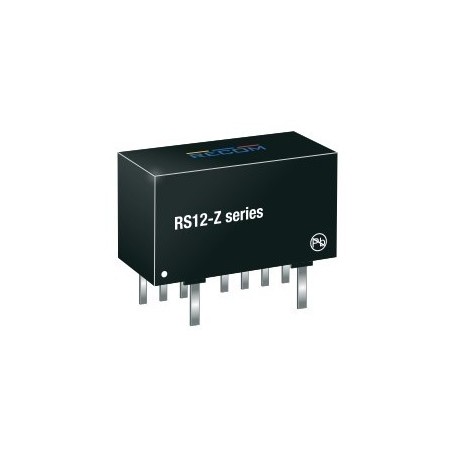

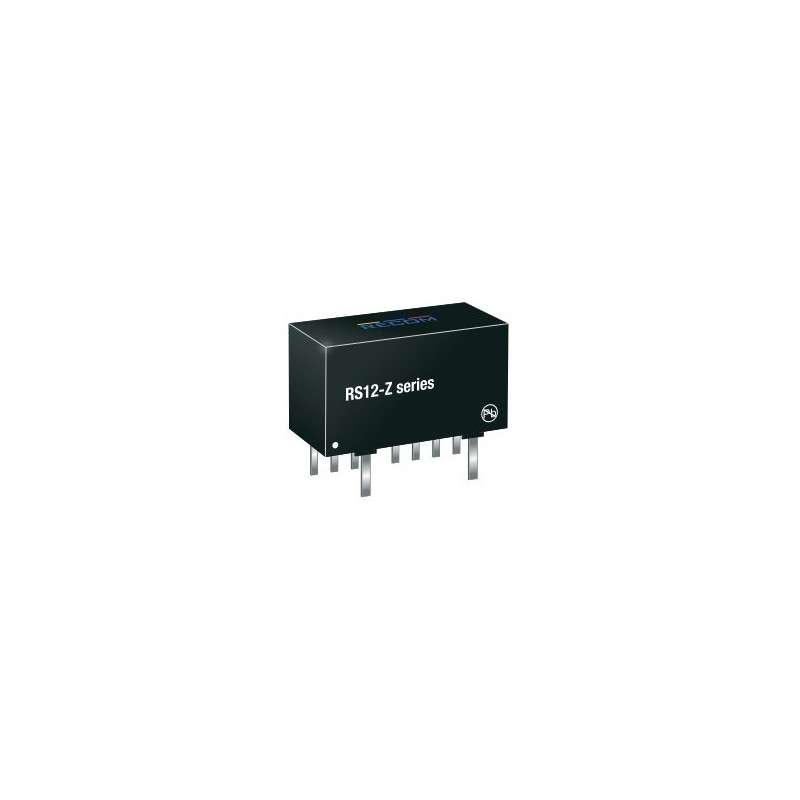

Recom DC/DC converter series RS12-Z

Converter modules in a SIP/SIL8 housing with 12W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting and have a continuous short circuit protection. We offer various types of this Recom series.

  • single output
  • output: 12W
  • input voltage: 9 to 75V DC
  • ripple and noise3,3/5/12V: 50mVpp
  • ripple and noise 15/24V: 75mVpp
  • withstand voltage I/P-O/P: 3000V DC
  • maximal output voltage tolerance: ±1%
  • operating temperature: -40 to +105°C
  • dimensions: 21,8x12,1x9,6mm
  • weight: 8,5g
RS12-483.3SZ, Recom DC/DC converters, 12W, SIL8 housing, RS12-Z series

RS12-483.3SZ

247127 RS12-483.3SZ RS12-483.3SZ Recom DC/DC converter series RS12-Z. Converter modules in a SIP/SIL8 housing with 12W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting and have a continuous short circuit protection. We offer various types of this Recom series. single output output: 12W input voltage: 9 to 75V DC ripple and noise3,3/5/12V: 50mVpp ripple and noise 15/24V: 75mVpp withstand voltage I/P-O/P: 3000V DC maximal output voltage tolerance: ±1% operating temperature: -40 to +105°C dimensions: 21,8x12,1x9,6mm weight: 8,5g

Specifications

manufacturer
Manufacturer's name RS12-483.3SZ
Output voltage [V] 3,3
Efficiency [%] 85
Output current [mA] 2400
Data Sheet

Unit price

53,89 €

Stock: 0
Further delivery:
CW 09/2025

Minimum order quantity 22 units or
multiples of 22.
