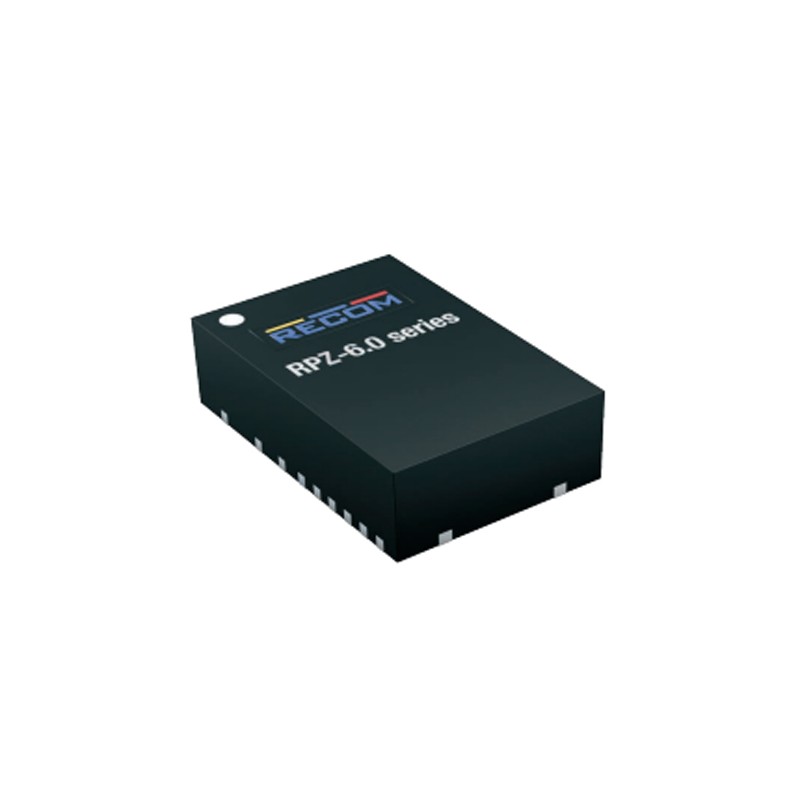

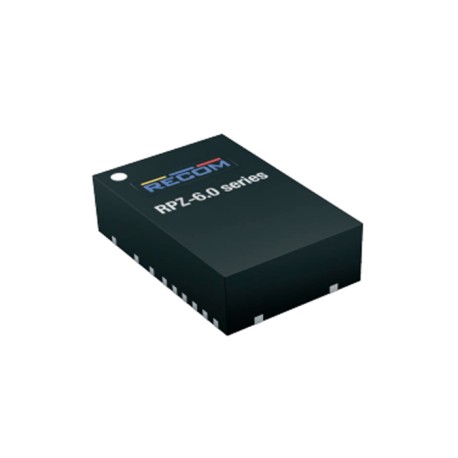

RPZ-6.0-R

Recom DC/DC converter series RPZ-6.0

DC/DC switching regulators in a QFN housing with 6A, a remote ON/OFF control and a DC OK signal. These voltage converters have an adjustable output voltage and are protected against overload, overtemperature as well as short circuit. They are suitable for direct PCBmounting and have an efficiency of up to 90%. We offer the following types of this Recom series: RPZ-6.0-CT und  RPZ-6.0-R.

  • single output
  • output current: 6A
  • operating temperature: -40 to +77°C
  • dimensions: 4x6x1,6mm
  • weight: 0,1g
RPZ-6.0-R, Recom DC/DC switching regulators, 6A, QFN housing, RPZ-6.0 series

RPZ-6.0-R

247181 RPZ-6.0-R RPZ-6.0-R Recom DC/DC converter series RPZ-6.0. DC/DC switching regulators in a QFN housing with 6A, a remote ON/OFF control and a DC OK signal. These voltage converters have an adjustable output voltage and are protected against overload, overtemperature as well as short circuit. They are suitable for direct PCBmounting and have an efficiency of up to 90%. We offer the following types of this Recom series: RPZ-6.0-CT und  RPZ-6.0-R. single output output current: 6A operating temperature: -40 to +77°C dimensions: 4x6x1,6mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name RPZ-6.0-R
Output voltage [V] 0,6...6,65
Input voltage range [V] 2,75...7
Output current [mA] 6000
Efficiency [%] 90
Data Sheet

Unit price

4,69 €

Stock: 0
Further delivery:
CW 02/2025

Minimum order quantity 500 units or
multiples of 500.
