RPZ-0.5-R

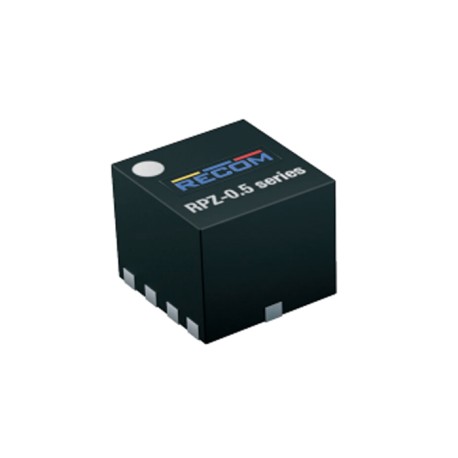

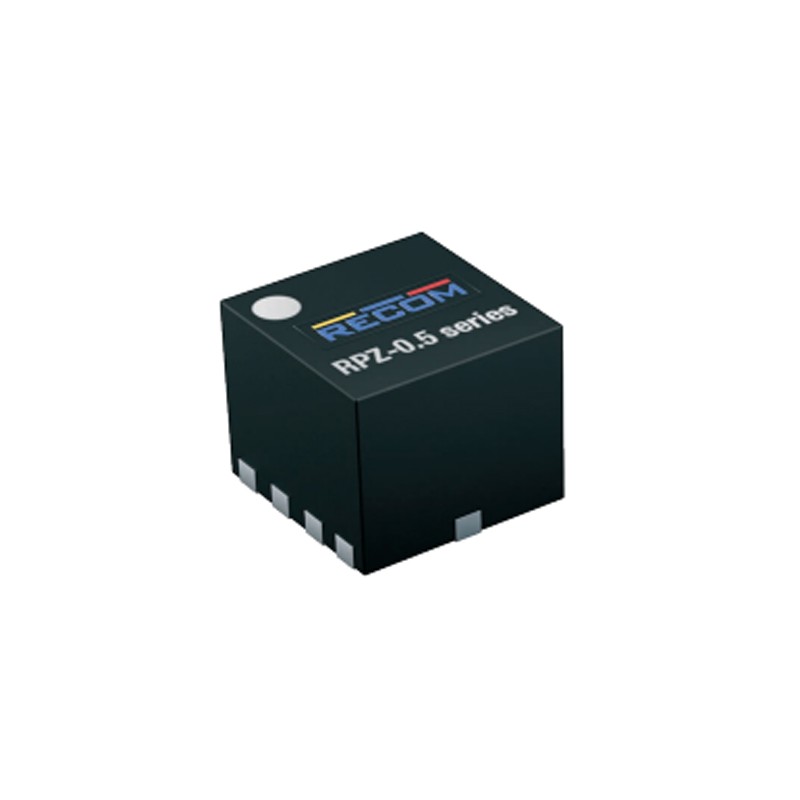

Recom DC/DC switching regulator series RPZ-0.5

DC/DC switching regulators in a QFN housing with 0,5A and an adjustable output voltage. These voltage regulators are suitable for direct PCB mounting and are protected against overload, overtemperature as well as short circuit. They have a very compact design and are suitable for ambient temperature of up to 116°C. We offer the type RPZ-0.5-R of this Recom series.

  • single output
  • output current: 0,5A
  • operating temperature: -40 to +116°C
  • dimensions: 2x2x1,6mm
  • weight: 0,1g
RPZ-0.5-R, Recom DC/DC switching regulators, 0,5A, QFN housing, RPZ-0.5 series

RPZ-0.5-R

247176 RPZ-0.5-R RPZ-0.5-R Recom DC/DC switching regulator series RPZ-0.5. DC/DC switching regulators in a QFN housing with 0,5A and an adjustable output voltage. These voltage regulators are suitable for direct PCB mounting and are protected against overload, overtemperature as well as short circuit. They have a very compact design and are suitable for ambient temperature of up to 116°C. We offer the type RPZ-0.5-R of this Recom series. single output output current: 0,5A operating temperature: -40 to +116°C dimensions: 2x2x1,6mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name RPZ-0.5-R
Output voltage [V] 0,6...5,375
Input voltage range [V] 2,3...5,5
Output current range [mA] 500
Efficiency [%] 88
Data Sheet

Unit price

1,73 €

Stock: 0
Further delivery:
CW 02/2025

Minimum order quantity 500 units or
multiples of 500.
