R24P06S

Recom DC/DC converter series RPxxP06S

DC/DC converters in a SIL7 housing with 1W and a 6V output for GaN driver applications. These devices have a pot-core transformer with sperate windings as well as a low isolation capacitance of max. 10pF. We offer the following types of this Recom series: R05P06S, R12P06S, R15P06S and R24P06S.

  • output voltage tolerance: ±5%
  • maximal ripple and noise: 200mVpp
  • withstand voltage: 6,4kV
  • operating temperature: -40 to +90°C
  • weight: 4,3g

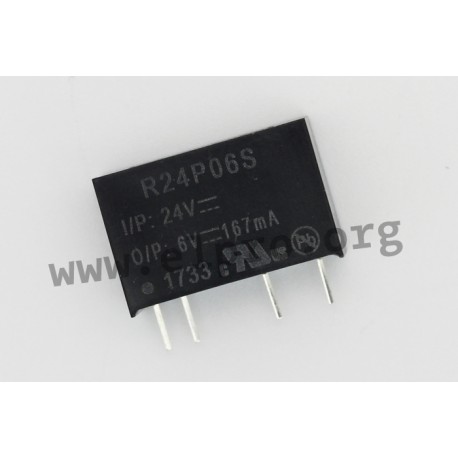

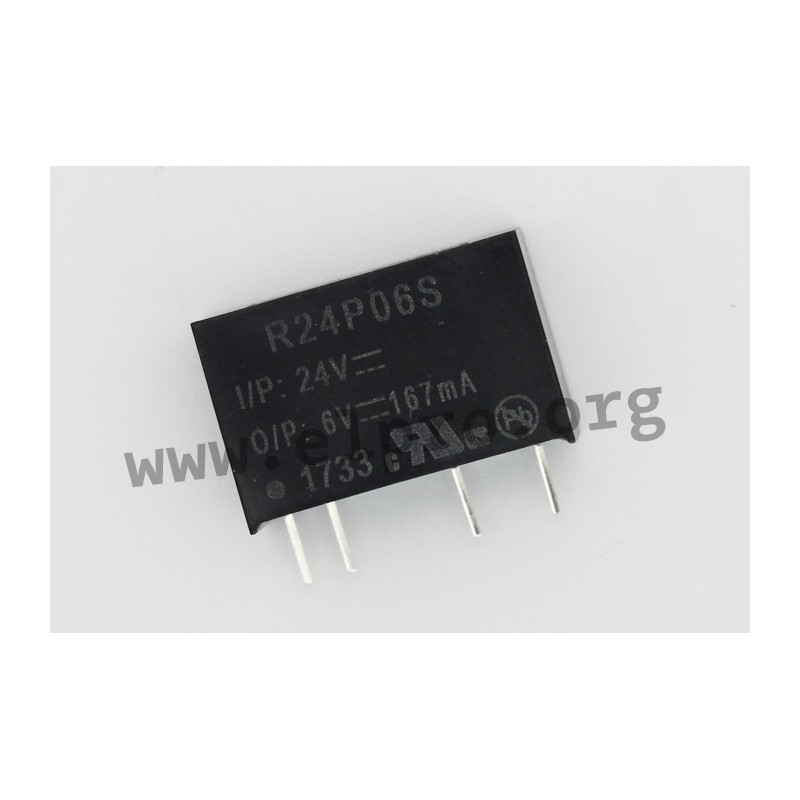

R24P06S, 1 W, SIL 7 housing, RPxxP06S series by Recom

R24P06S

110574 R24P06S R24P06S Recom DC/DC converter series RPxxP06S. DC/DC converters in a SIL7 housing with 1W and a 6V output for GaN driver applications. These devices have a pot-core transformer with sperate windings as well as a low isolation capacitance of max. 10pF. We offer the following types of this Recom series: R05P06S, R12P06S, R15P06S and R24P06S. output voltage tolerance: ±5% maximal ripple and noise: 200mVpp withstand voltage: 6,4kV operating temperature: -40 to +90°C weight: 4,3g

Specifications

manufacturer
Manufacturer's name R24P06S
Input voltage [V] 24
Output voltage [V] 6
Output current range [mA] 167
Efficiency [%] 80
Data Sheet

Unit price

15,39 €

Stock: 38
Further delivery:
CW 12/2025
