RPMH12-1.5-CT

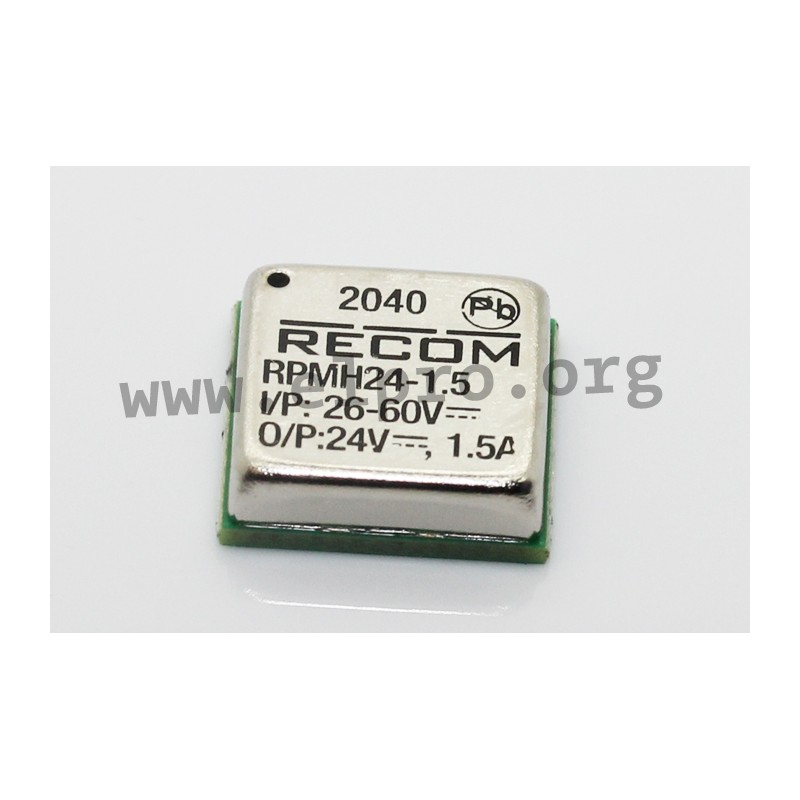

Recom DC/DC switching regulator series RPMH-1.5

DC/DC switching regulators in a thermally and EMI enhanced LGA25 housing with an output current of 1,5A, a 6-sided shielding and a wide input range of up to 60V DC. These devices have an adjustable output voltage and are protected against overload, overtemperature as well as short circuit. They are suitable for industry/ITE applications and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: RPMH3.3-1.5-CT, RPMH5.0-1.5-CT, RPMH12-1.5-CT and RPMH24-1.5-CT.

  • single output
  • maximal output voltage tolerance: ±4%
  • ripple and noise: 70mVpp
  • withstand voltage I/P-O/P: 2000V DC
  • connection type: SMD
  • operating temperature: -40 to +100°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1g

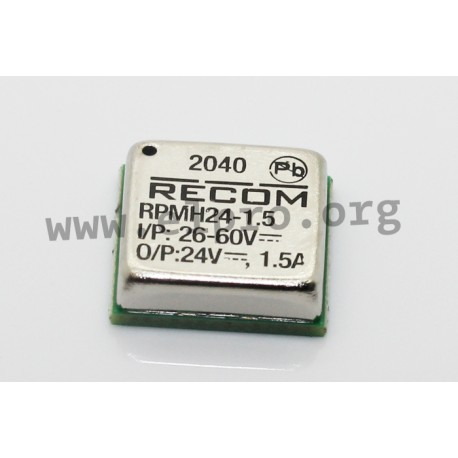

RPMH12-1.5-CT, Recom DC/DC switching regulators, 1,5A, LGA25 housing, RPMH-1.5 series

RPMH12-1.5-CT

236122 RPMH12-1.5-CT RPMH12-1.5-CT Recom DC/DC switching regulator series RPMH-1.5. DC/DC switching regulators in a thermally and EMI enhanced LGA25 housing with an output current of 1,5A, a 6-sided shielding and a wide input range of up to 60V DC. These devices have an adjustable output voltage and are protected against overload, overtemperature as well as short circuit. They are suitable for industry/ITE applications and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: RPMH3.3-1.5-CT, RPMH5.0-1.5-CT, RPMH12-1.5-CT and RPMH24-1.5-CT. single output maximal output voltage tolerance: ±4% ripple and noise: 70mVpp withstand voltage I/P-O/P: 2000V DC connection type: SMD operating temperature: -40 to +100°C dimensions: 12,19x12,19x3,75mm weight: 1g

Specifications

manufacturer
Manufacturer's name RPMH12-1.5-CT
Output voltage [V] 12
Input voltage range [V] 14...60
Fine adjustment range output current [V] 7,2...13,2
Efficiency [%] 88
Output current [A] 1,5
Data Sheet

Unit price

8,89 €

Stock: 27
Further delivery:
CW 32/2025
