RPMH3.3-0.5-CT

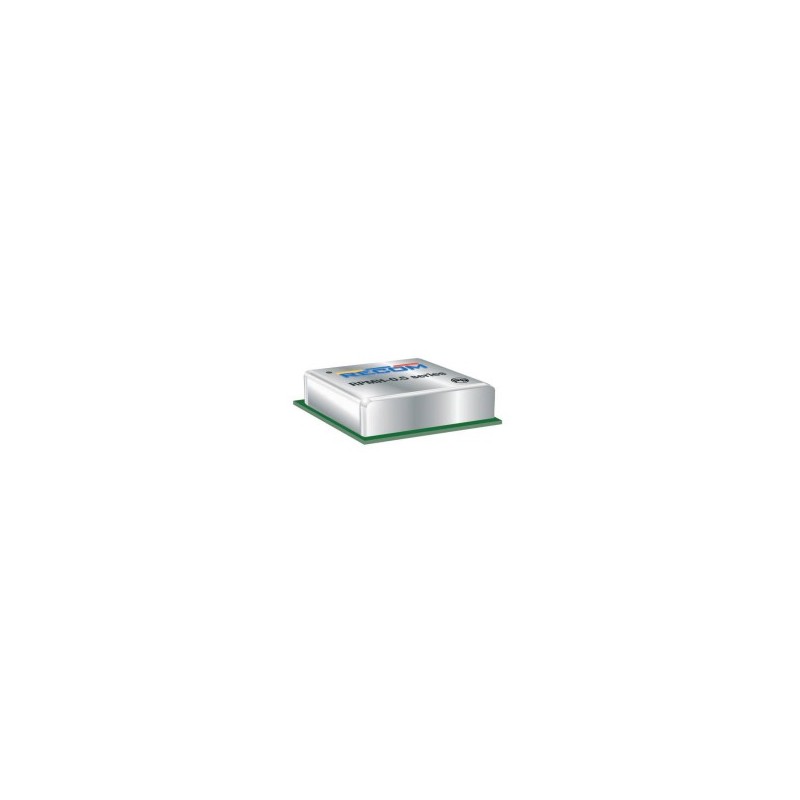

Recom DC/DC switching regulator series RPMH-0.5-CT

DC/DC step-down converters in a thermally and EMI enhanced 25 pin LGA housing with a 0,5A constant current output, a wide input voltage range and a 6-sided shielding. These devices do not require a heatsink and comply with EN55032 class B. We offer the following types of this Recom series: RPMH3.3-0.5-CT, RPMH5.0-0.5-CT, RPMH12-0.5-CT, RPMH15-0.5-CT and RPMH24-0.5-CT.

  • single output
  • output current: 0,5A
  • maximal output voltage tolerance: 4,8%
  • operating temperature: -40 to +105°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g

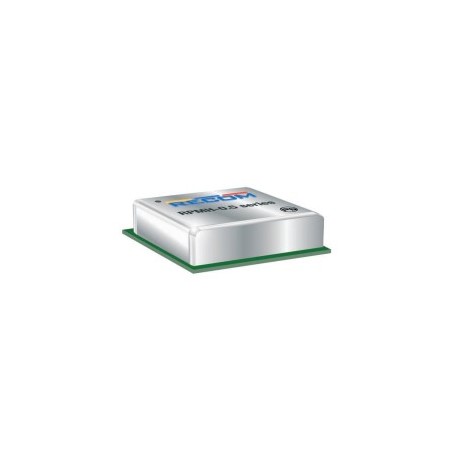

RPMH3.3-0.5-CT, Recom DC/DC switching regulators, 0,5A, LGA25 housing, RPMH-0.5-CT series

RPMH3.3-0.5-CT

235417 RPMH3.3-0.5-CT RPMH3.3-0.5-CT Recom DC/DC switching regulator series RPMH-0.5-CT. DC/DC step-down converters in a thermally and EMI enhanced 25 pin LGA housing with a 0,5A constant current output, a wide input voltage range and a 6-sided shielding. These devices do not require a heatsink and comply with EN55032 class B. We offer the following types of this Recom series: RPMH3.3-0.5-CT, RPMH5.0-0.5-CT, RPMH12-0.5-CT, RPMH15-0.5-CT and RPMH24-0.5-CT. single output output current: 0,5A maximal output voltage tolerance: 4,8% operating temperature: -40 to +105°C dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPMH3.3-0.5-CT
Output voltage [V] 3,3
Input voltage range [V] 4,3...65
Fine adjustment range output current [V] 2,64...3,63
Efficiency [%] 72
Output current [A] 0,5
Data Sheet

Unit price

6,09 €

Stock: 30
Further delivery:
CW 11/2025
