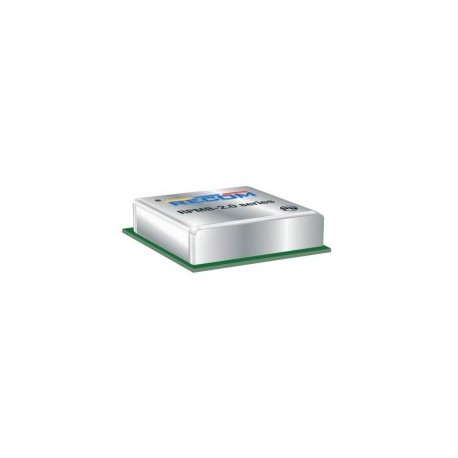

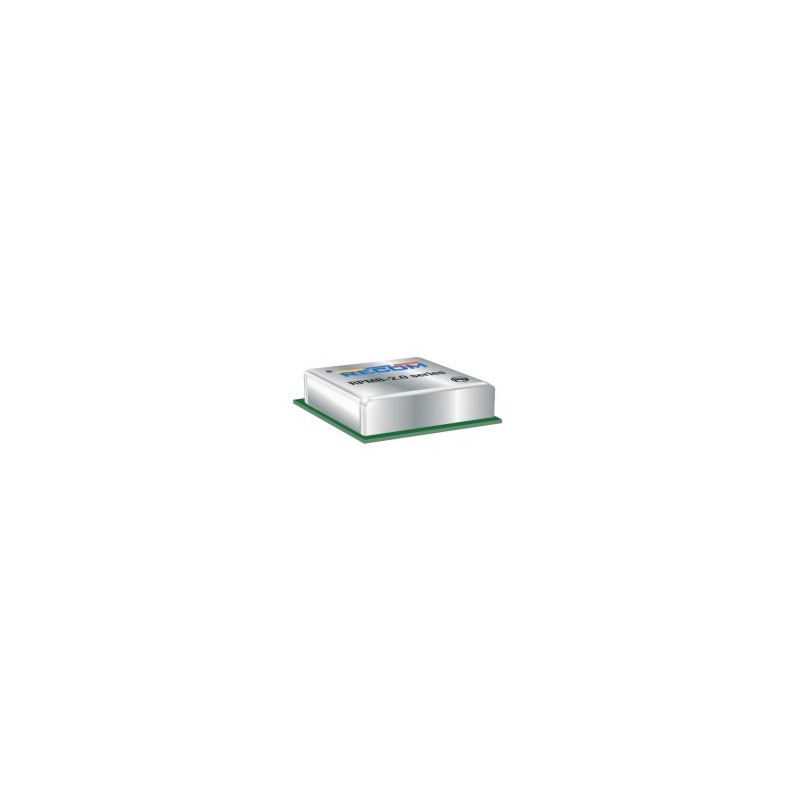

RPMB12-2.0-CT

Recom DC/DC switching regulator series RPMB-2.0

DC/DC switching regulators in a thermally and EMI enhanced 25 pin LGA housing with a 6-sided shielding. These devices have a wide input range (up to 36V DC), are protected against short circuit, overload (auto recovery) as well as overtemperature and comply with EN55032 class B. We offer the following types of this Recom series: RPMB3.3-2.0-CT, RPMB5.0-2.0-CT, RPMB12-2.0-CT and RPMB15-2.0-CT.

  • single output
  • output current: 2A
  • maximal output voltage tolerance: ±3%
  • operating temperature: -40 bis +100°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g
RPMB12-2.0-CT, Recom DC/DC switching regulators, 2A, LGA25 housing, RPMB-2.0 series

RPMB12-2.0-CT

235424 RPMB12-2.0-CT RPMB12-2.0-CT Recom DC/DC switching regulator series RPMB-2.0. DC/DC switching regulators in a thermally and EMI enhanced 25 pin LGA housing with a 6-sided shielding. These devices have a wide input range (up to 36V DC), are protected against short circuit, overload (auto recovery) as well as overtemperature and comply with EN55032 class B. We offer the following types of this Recom series: RPMB3.3-2.0-CT, RPMB5.0-2.0-CT, RPMB12-2.0-CT and RPMB15-2.0-CT. single output output current: 2A maximal output voltage tolerance: ±3% operating temperature: -40 bis +100°C dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPMB12-2.0-CT
Output voltage [V] 12
Input voltage range [V] 12,8...36
Fine adjustment range output current [V] 9...24
Efficiency [%] 93
Ripple [mVp-p] 90
Data Sheet

Unit price

7,49 €

Stock: 8
Further delivery:
CW 11/2025
