RPM3.3-6.0-CT

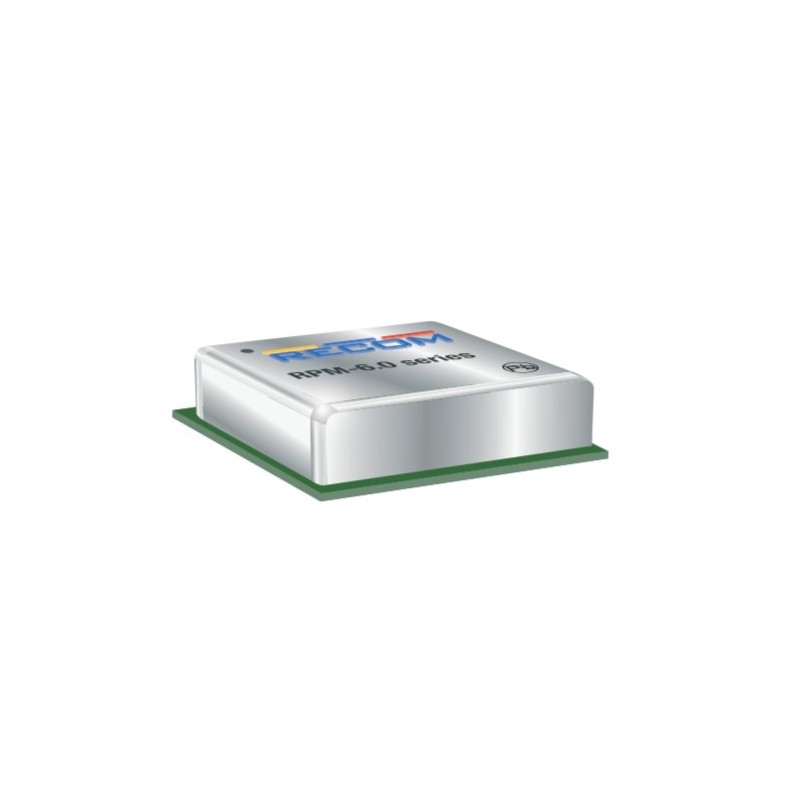

Recom DC/DC converter series RPM-6.0

DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a single output, a 6-sided shielding and an output current of 6A. These devices do not require an additional heat sink and have a DOSA-compatible footprint. Further more, they comply with the EMV norms EN55032 and others. We offer the following types of this Recom series: RPM3.3-6.0-CT, RPM5.0-6.0-CT, RPM3.3-6.0, and RPM5.0-6.0.

  • single output
  • current: 6A
  • input voltage: 4 to 15V
  • maximal output voltage tolerance (at 100% load): ±3%
  • operating temperature range: -40 to +85°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g

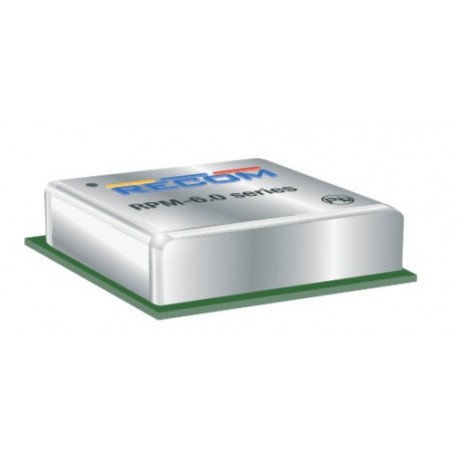

RPM3.3-6.0-CT, Recom DC/DC converters, 6A, 25 pin LGA housing, RPM-6.0 series

RPM3.3-6.0-CT

118474 RPM3.3-6.0-CT RPM3.3-6.0-CT Recom DC/DC converter series RPM-6.0. DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a single output, a 6-sided shielding and an output current of 6A. These devices do not require an additional heat sink and have a DOSA-compatible footprint. Further more, they comply with the EMV norms EN55032 and others. We offer the following types of this Recom series: RPM3.3-6.0-CT, RPM5.0-6.0-CT, RPM3.3-6.0, and RPM5.0-6.0. single output current: 6A input voltage: 4 to 15V maximal output voltage tolerance (at 100% load): ±3% operating temperature range: -40 to +85°C dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPM3.3-6.0-CT
Output voltage [V] 3,3
Input voltage range [V] 4...15
Data Sheet

Unit price

7,69 €

Stock: 29
Further delivery:
CW 16/2025
