RPM5.0-3.0

Recom DC/DC converter series RPM-3.0

DC/DC converters with 3A, a single output in a thermally and EMI enhanced 25 pin LGA housing, and an efficiency of up to 97% and a 6-sided shielding. These devices got a DOSA-compatible footprint and do not require an additional heat sink as well as they comply with the EMV norms of EN55032 and others. We offer the following types of this Recom series: RPM3.3-3.0-CT, RPM5.0-3.0-CT, RPM3.3-3.0, and RPM5.0-3.0.

  • single output
  • current: 3A
  • input voltage: 3 to 17V
  • maximal output voltage tolerance (at 100% load): ±3%
  • operating temperature range: -40 to +105°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g

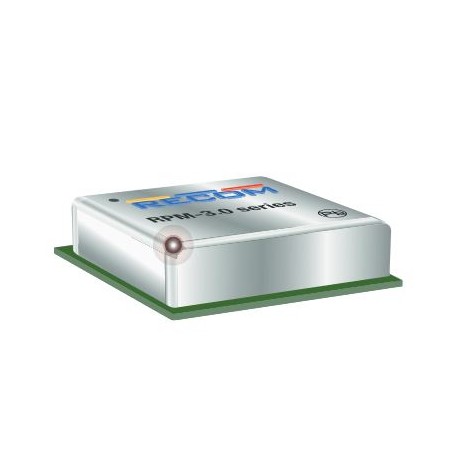

Recom RPM-3.0 series

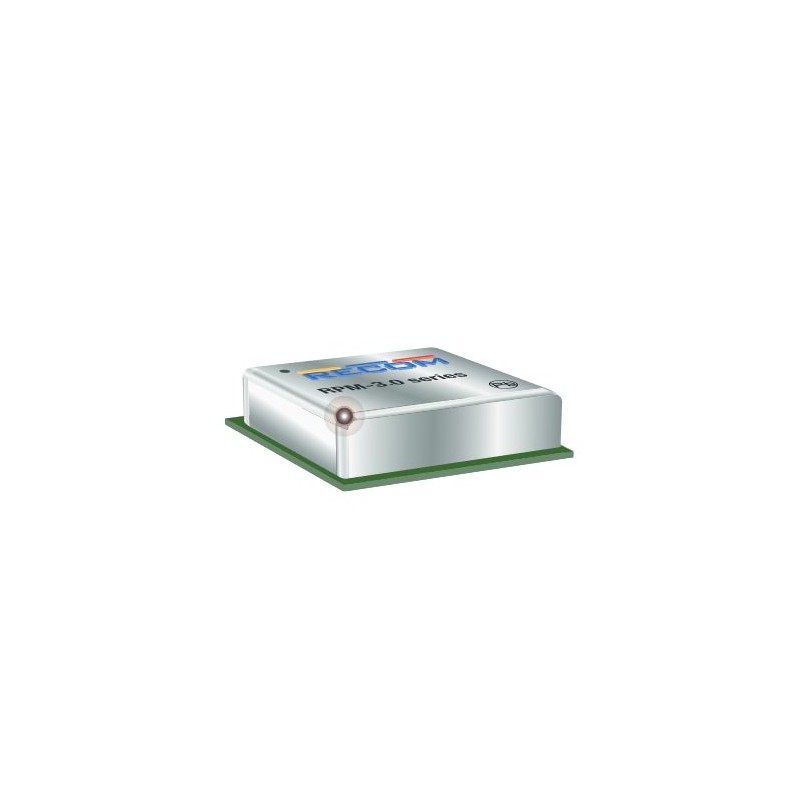

RPM5.0-3.0

112628 RPM5.0-3.0 RPM5.0-3.0 Recom DC/DC converter series RPM-3.0. DC/DC converters with 3A, a single output in a thermally and EMI enhanced 25 pin LGA housing, and an efficiency of up to 97% and a 6-sided shielding. These devices got a DOSA-compatible footprint and do not require an additional heat sink as well as they comply with the EMV norms of EN55032 and others. We offer the following types of this Recom series: RPM3.3-3.0-CT, RPM5.0-3.0-CT, RPM3.3-3.0, and RPM5.0-3.0. single output current: 3A input voltage: 3 to 17V maximal output voltage tolerance (at 100% load): ±3% operating temperature range: -40 to +105°C dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPM5.0-3.0
Input voltage [V] 3...17
Output voltage [V] 5
Efficiency [%] 92...98
Output voltage adjustment [V] 0,9...6
Ripple [mVp-p] 60
Output current [mA] 3000
Data Sheet

Unit price

5,59 €

Stock: 0
Further delivery:
CW 49/2024

Minimum order quantity 500 units or
multiples of 500.
