RPM5.0-2.0

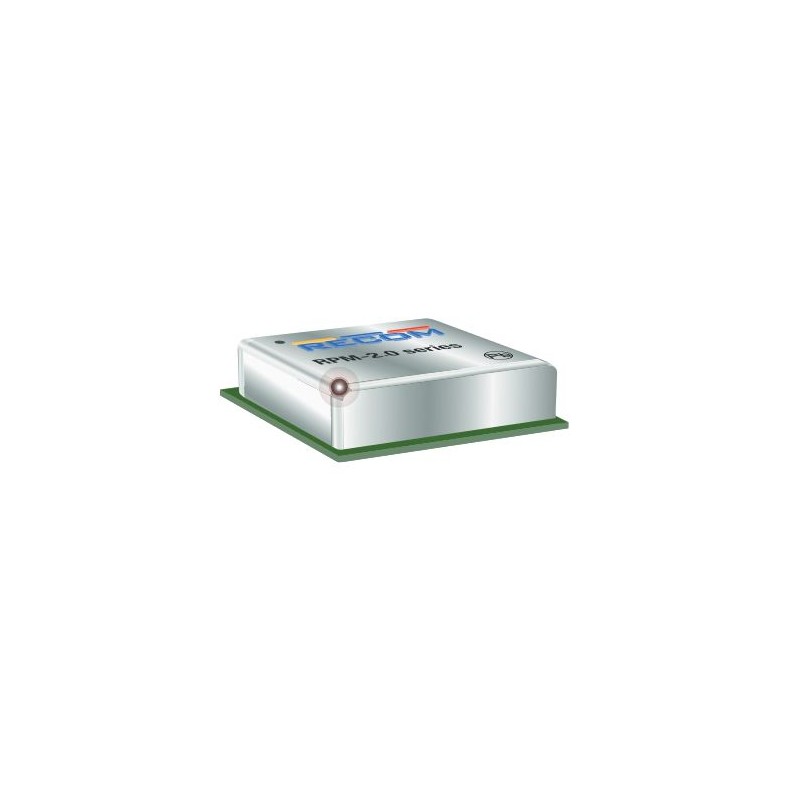

Recom DC/DC converter series RPM-2.0

DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a single output, a 6-sided shielding and an efficiency of up to 98%. These devices do not require an additional heat sink and have a DOSA-compatible footprint. Furthermore they comply with the EMV Norms EN55032 and others. We offer the following types of this Recom series: RPM3.3-2.0-CT, RPM5.0-2.0-CT, RPM3.3-2.0, and RPM5.0-2.0.

  • single output
  • current: 2A
  • input voltage: 3 to 17V
  • maximal output voltage tolerance (at 100% load): ±3%
  • operating temperature range: -40 to +105°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g

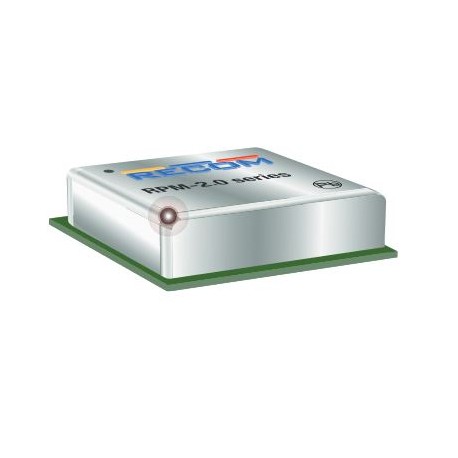

Recom RPM-2.0 series

RPM5.0-2.0

112626 RPM5.0-2.0 RPM5.0-2.0 Recom DC/DC converter series RPM-2.0. DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a single output, a 6-sided shielding and an efficiency of up to 98%. These devices do not require an additional heat sink and have a DOSA-compatible footprint. Furthermore they comply with the EMV Norms EN55032 and others. We offer the following types of this Recom series: RPM3.3-2.0-CT, RPM5.0-2.0-CT, RPM3.3-2.0, and RPM5.0-2.0. single output current: 2A input voltage: 3 to 17V maximal output voltage tolerance (at 100% load): ±3% operating temperature range: -40 to +105°C dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPM5.0-2.0
Input voltage [V] 3...17
Output voltage [V] 5
Efficiency [%] 92...98
Output voltage adjustment [V] 0,9...6
Ripple [mVp-p] 60
Output current [mA] 2000
Data Sheet

Unit price

5,09 €

Stock: 0
Further delivery:
CW 07/2025

Minimum order quantity 500 units or
multiples of 500.
