RPM5.0-1.0-CT

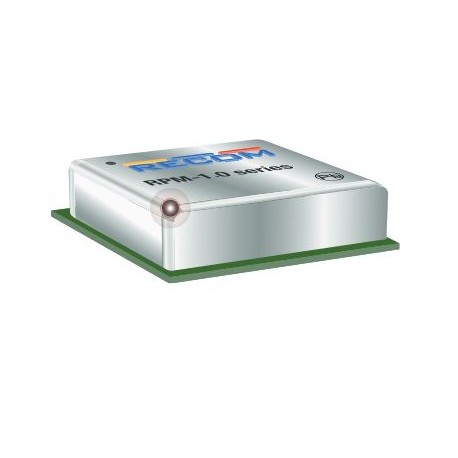

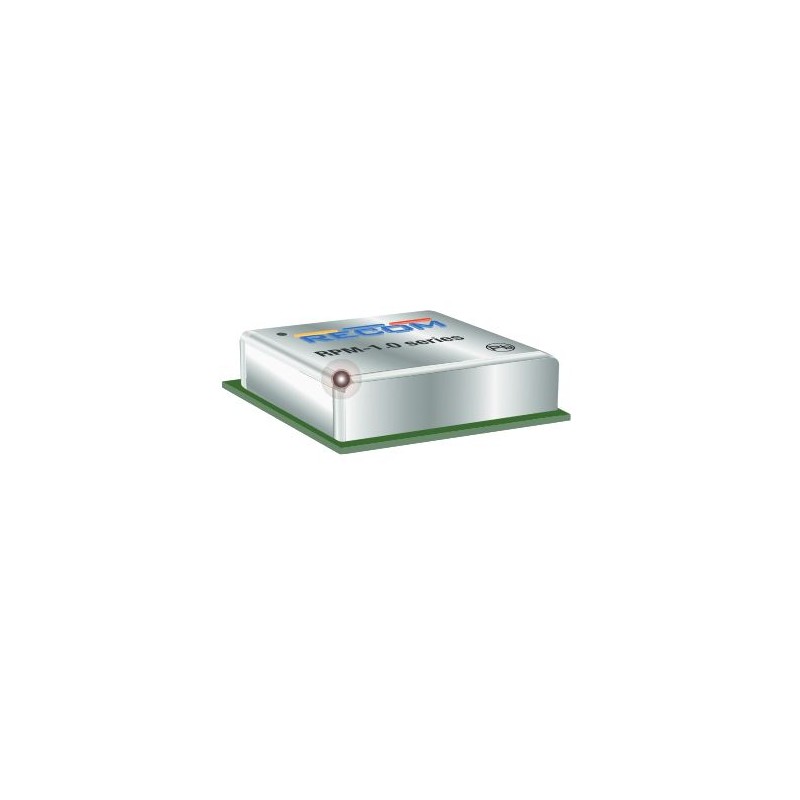

Recom DC/DC converter series RPM-1.0 and RPM-1.0-CT

DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a 6-sided shielding and an efficiency of up to 99%. These devices do not require an additional heat sink and have a DOSA-compatible footprint. They also comply with EN55032. We offer the following types of this Recom series: RPM3.3-1.0, RPM5.0-1.0, RPM3.3-1.0-CT, and RPM5.0-1.0-CT.

  • single output
  • maximal voltage accuracy: ±3%
  • maximal ripple and noise: 60mVpp
  • operating temperature: -40 to +107°C
  • adjustable output voltage: 0,9 to 6V
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g
RPM5.0-1.0-CT, Recom DC/DC converters, 1A, LGA25 housing, RPM-1.0 and RPM-1.0-CT series

RPM5.0-1.0-CT

118469 RPM5.0-1.0-CT RPM5.0-1.0-CT Recom DC/DC converter series RPM-1.0 and RPM-1.0-CT. DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a 6-sided shielding and an efficiency of up to 99%. These devices do not require an additional heat sink and have a DOSA-compatible footprint. They also comply with EN55032. We offer the following types of this Recom series: RPM3.3-1.0, RPM5.0-1.0, RPM3.3-1.0-CT, and RPM5.0-1.0-CT. single output maximal voltage accuracy: ±3% maximal ripple and noise: 60mVpp operating temperature: -40 to +107°C adjustable output voltage: 0,9 to 6V dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPM5.0-1.0-CT
Output voltage [V] 5
Input voltage range [V] 3...17
Efficiency [%] 92...99
Output current [mA] 1000
Data Sheet

Unit price

5,39 €

Stock: 13
Further delivery:
CW 36/2025
