RPM3.3-1.0

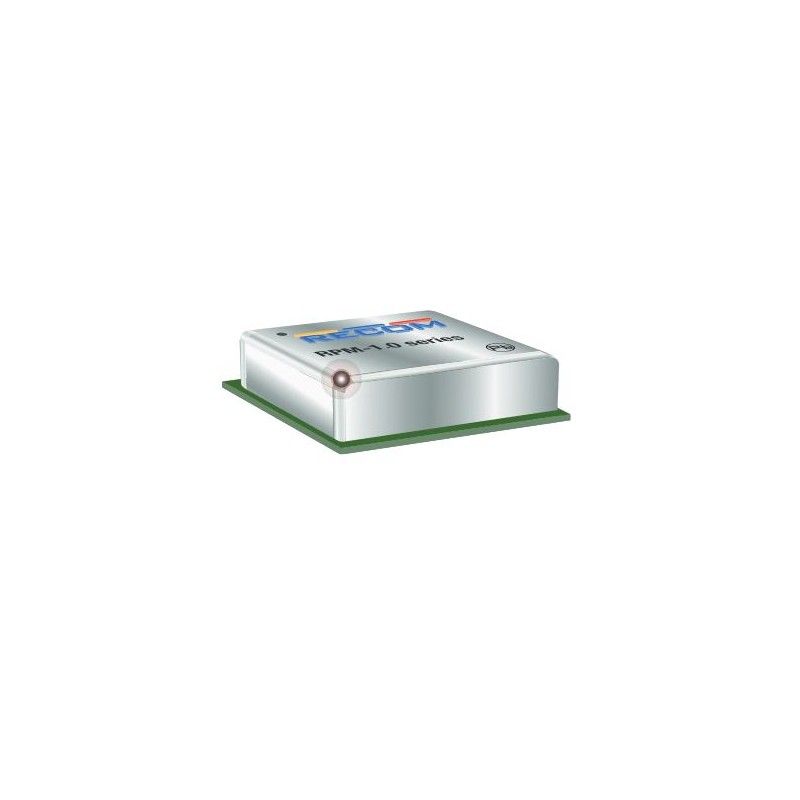

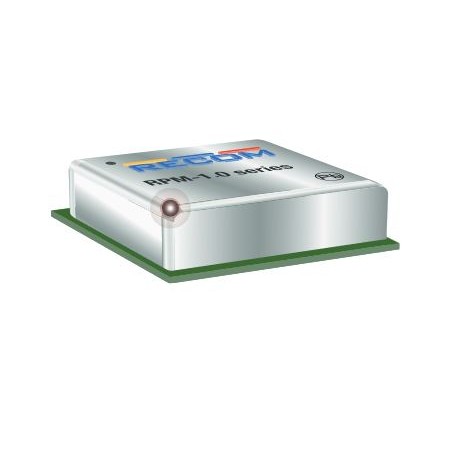

Recom DC/DC converter series RPM-1.0 and RPM-1.0-CT

DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a 6-sided shielding and an efficiency of up to 99%. These devices do not require an additional heat sink and have a DOSA-compatible footprint. They also comply with EN55032. We offer the following types of this Recom series: RPM3.3-1.0, RPM5.0-1.0, RPM3.3-1.0-CT, and RPM5.0-1.0-CT.

  • single output
  • maximal voltage accuracy: ±3%
  • maximal ripple and noise: 60mVpp
  • operating temperature: -40 to +107°C
  • adjustable output voltage: 0,9 to 6V
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g
RPM3.3-1.0, Recom DC/DC converters, 1A, LGA25 housing, RPM-1.0 and RPM-1.0-CT series

RPM3.3-1.0

112623 RPM3.3-1.0 RPM3.3-1.0 Recom DC/DC converter series RPM-1.0 and RPM-1.0-CT. DC/DC converters in a thermally and EMI enhanced 25 pin LGA housing with a 6-sided shielding and an efficiency of up to 99%. These devices do not require an additional heat sink and have a DOSA-compatible footprint. They also comply with EN55032. We offer the following types of this Recom series: RPM3.3-1.0, RPM5.0-1.0, RPM3.3-1.0-CT, and RPM5.0-1.0-CT. single output maximal voltage accuracy: ±3% maximal ripple and noise: 60mVpp operating temperature: -40 to +107°C adjustable output voltage: 0,9 to 6V dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RPM3.3-1.0
Input voltage [V] 3...17
Output voltage [V] 3,3
Efficiency [%] 94...99
Output voltage adjustment [V] 0,9...6
Ripple [mVp-p] 60
Output current [mA] 1000
Data Sheet

Unit price

4,99 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 500 units or
multiples of 500.
