RPL-5.0-CT

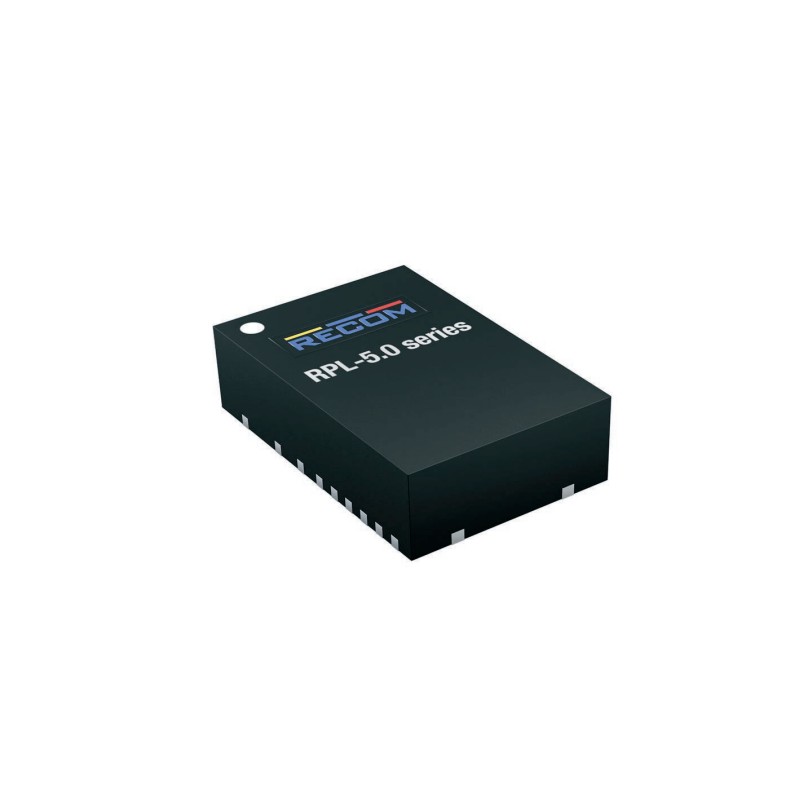

Recom DC/DC switching regulators from the RPL-5.0-CT series

DC/DC switch regulators in a QFN  housing with 5A and a programmable output voltage. This voltage converter has a remote control. It is protected against overload, overtemperature, and short circuit.This device can be installed directly on the PCB and it has a DC-OK signal. We offer the RPL-5.0-CT type of this Recom series.

  • single output
  • output current: 5A
  • operating temperature range: -40 bis +77 °C
  • dimensions: 4x6x1,6mm
  • weight: 0,1g

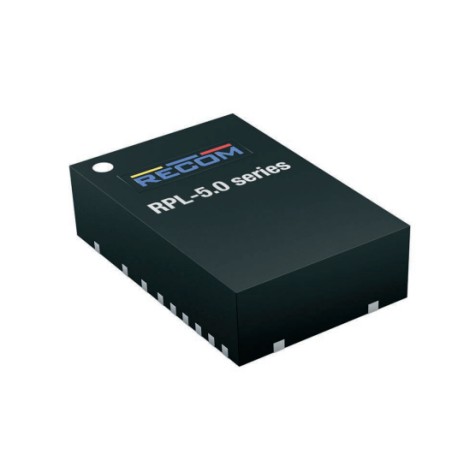

RPL-5.0-CT, Recom DC/DC switching regulators, 5A, QFN housing, RPL-5.0-CT series

RPL-5.0-CT

245941 RPL-5.0-CT RPL-5.0-CT Recom DC/DC switching regulators from the RPL-5.0-CT series. DC/DC switch regulators in a QFN  housing with 5A and a programmable output voltage. This voltage converter has a remote control. It is protected against overload, overtemperature, and short circuit.This device can be installed directly on the PCB and it has a DC-OK signal. We offer the RPL-5.0-CT type of this Recom series. single output output current: 5A operating temperature range: -40 bis +77 °C dimensions: 4x6x1,6mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name RPL-5.0-CT
Output voltage [V] 0,6...12
Input voltage range [V] 2.75...17
Output current [mA] 5000
Efficiency [%] 90
Data Sheet

Unit price

6,39 €

Stock: 148
Further delivery:
CW 20/2025
