RPL-1.0-CT

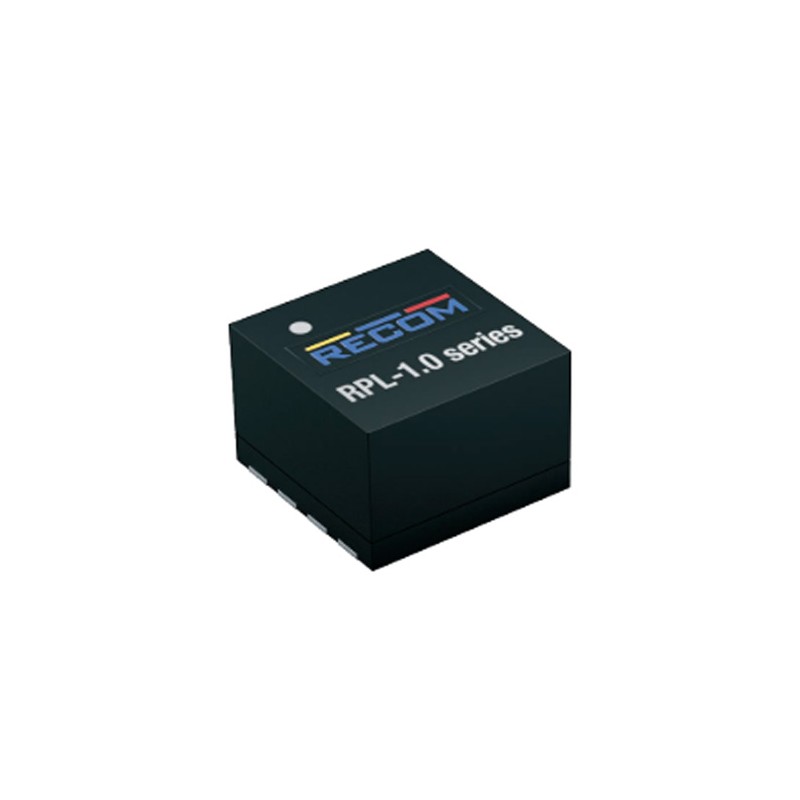

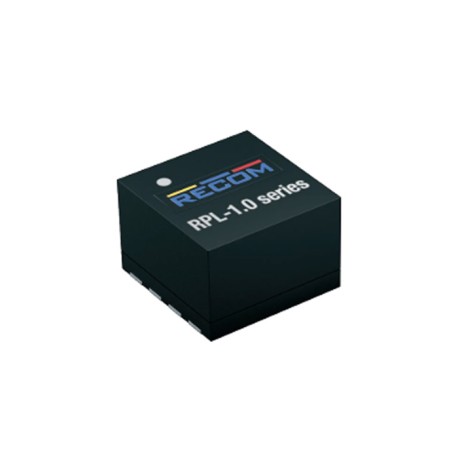

Recom DC/DC switching regulators series RPL-1.0-CT

DC/DC switching regulators in a LGA housing with 1A, a programmable output voltage, and it is protected against overload, overtemperature, and short circuit. These voltage converters can be installed directly on the PCB and it has a DC-OK signal. We offer the RPL-1.0-CT type of this Recom series.

  • single output
  • output current: 1A
  • input voltage: 3 to 22V
  • low profile (2mm)
  • operating temperature range: -40 to +80 °C
  • dimensions: 3x3x2mm
  • weight: 0,1g
RPL-1.0-CT, Recom DC/DC switching regulators, 1A, LGA housing, RPL-1.0-CT series

RPL-1.0-CT

246154 RPL-1.0-CT RPL-1.0-CT Recom DC/DC switching regulators series RPL-1.0-CT. DC/DC switching regulators in a LGA housing with 1A, a programmable output voltage, and it is protected against overload, overtemperature, and short circuit. These voltage converters can be installed directly on the PCB and it has a DC-OK signal. We offer the RPL-1.0-CT type of this Recom series. single output output current: 1A input voltage: 3 to 22V low profile (2mm) operating temperature range: -40 to +80 °C dimensions: 3x3x2mm weight: 0,1g

Specifications

manufacturer
Manufacturer's name RPL-1.0-CT
Output voltage [V] 0,6...12
Input voltage range [V] 3...22
Efficiency [%] 84
Output current [A] 1
Data Sheet

Unit price

2,89 €

Stock: 120
Further delivery:
CW 20/2025
