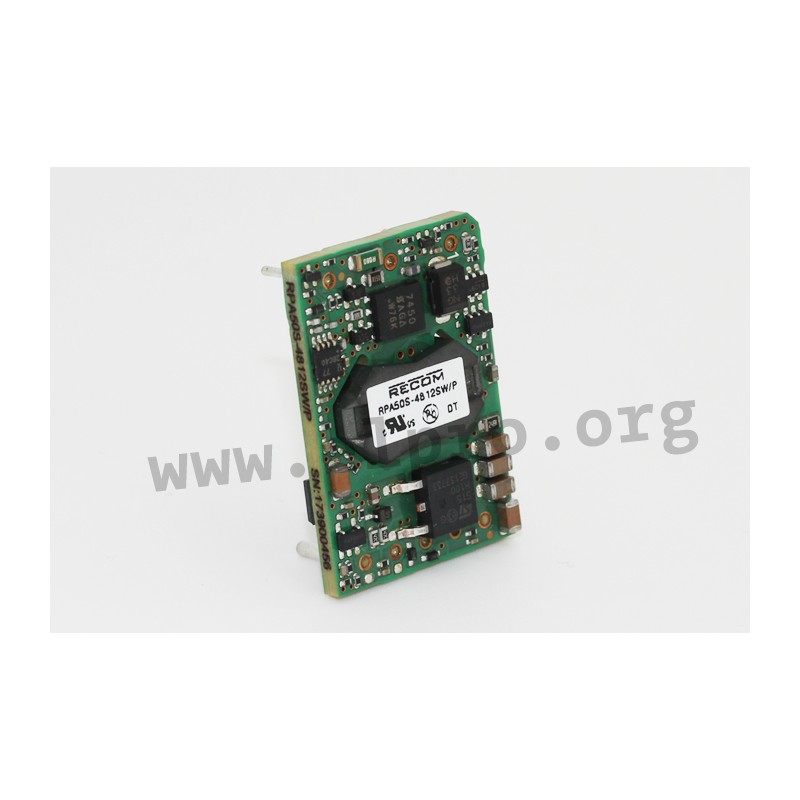

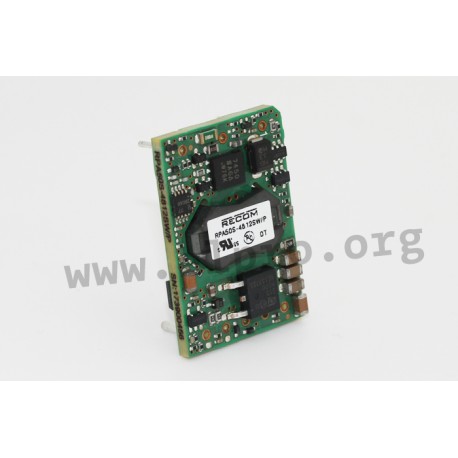

RPA50S-4812SW/P

Recom DC/DC converter series RPA50S-W

DC/DC converters in 1/16 brick housing have an input voltage ratio of 4:1 and an efficiency up to 91%. Their isolation is 2,25kV AC and they are protected against short circuit, overvoltage, overload and overtemperature. External EMC filtering according to EN55032 class B. Furthermore, they can be operated remotely (on/off) and have trim pins. We are offering the following types by Recom: RPA50S-483.3SW/P, RPA50S-4805SW/P and RPA50S-4812SW/P.

  • single output
  • output: 50W
  • voltage accuracy (load 100%): ±3%
  • maximal ripple & noise: 150mVpp
  • operating temperature: -40 to +54°C
  • weight: 12.1g
RPA50S-4812SW/P

RPA50S-4812SW/P

110588 RPA50S-4812SW/P RPA50S-4812SW/P Recom DC/DC converter series RPA50S-W. DC/DC converters in 1/16 brick housing have an input voltage ratio of 4:1 and an efficiency up to 91%. Their isolation is 2,25kV AC and they are protected against short circuit, overvoltage, overload and overtemperature. External EMC filtering according to EN55032 class B. Furthermore, they can be operated remotely (on/off) and have trim pins. We are offering the following types by Recom: RPA50S-483.3SW/P, RPA50S-4805SW/P and RPA50S-4812SW/P. single output output: 50W voltage accuracy (load 100%): ±3% maximal ripple & noise: 150mVpp operating temperature: -40 to +54°C weight: 12.1g

Specifications

manufacturer
Manufacturer's name RPA50S-4812SW/P
Input voltage [V] 18...75
Output voltage [V] 12
Output current range [mA] 4200
Efficiency [%] 89
Data Sheet

Unit price

32,79 €

Stock: 79
Further delivery:
CW 16/2025
