RPA40-11015SFR

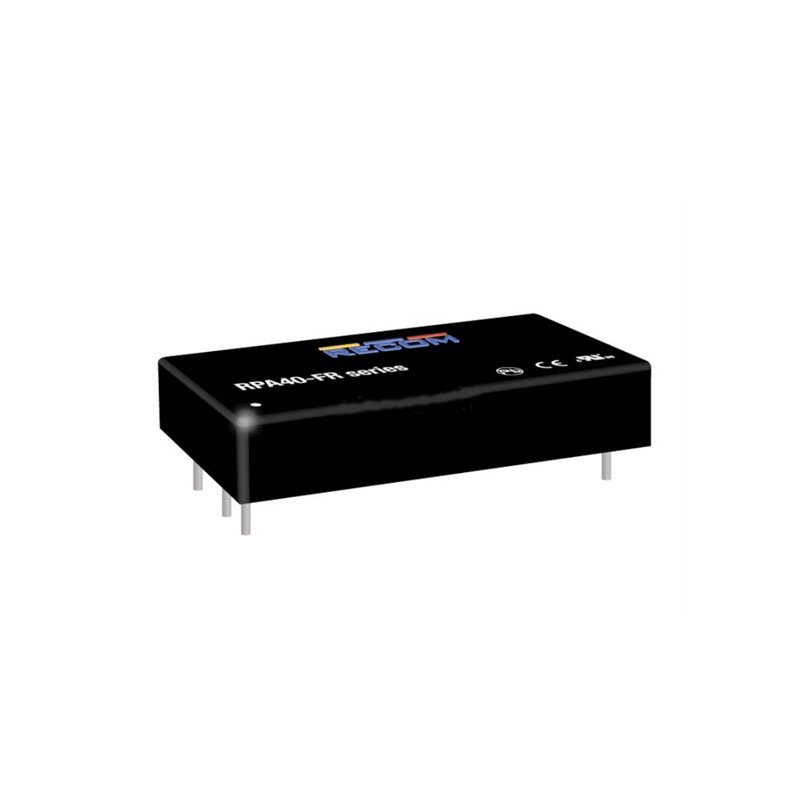

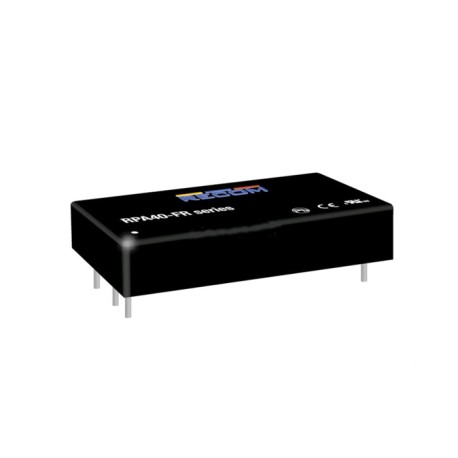

Recom DC/DC converter series RPA40-FR

DC/DC converter modules in a 2"x1" housing with 40W and a six-sided continuous shielding. These devices have an input voltage ratio of 4:1, are suitable for PCB mounting and are protected against short circuit, overcurrent, overvoltage as well as overtemperature. They are suitable for railway applications, require no minimum load and comply with EN50155, EN45545-2 as well as EN62368-1. We offer the following types of this Recom series.

  • single output
  • output: 40W
  • output voltage tolerance: ±1%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -40 to +105°C
  • dimensions: 56,4x36,83x15mm
  • weight: 32g
RPA40-11015SFR, Recom DC/DC converters, 40W, 2"x1", EN 50155 railway standard, RPA40-FR series

RPA40-11015SFR

247134 RPA40-11015SFR RPA40-11015SFR Recom DC/DC converter series RPA40-FR. DC/DC converter modules in a 2"x1" housing with 40W and a six-sided continuous shielding. These devices have an input voltage ratio of 4:1, are suitable for PCB mounting and are protected against short circuit, overcurrent, overvoltage as well as overtemperature. They are suitable for railway applications, require no minimum load and comply with EN50155, EN45545-2 as well as EN62368-1. We offer the following types of this Recom series. single output output: 40W output voltage tolerance: ±1% withstand voltage I/P-O/P: 3000V AC operating temperature: -40 to +105°C dimensions: 56,4x36,83x15mm weight: 32g

Specifications

manufacturer
Manufacturer's name RPA40-11015SFR
Input voltage [V] 36...160
Output voltage [V] 15
Output current [mA] 2666
Efficiency [%] 90
Ripple [mVp-p] 100
Data Sheet

Unit price

85,89 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 9 units or
multiples of 9.
