RPA150Q-11024SRUW/P

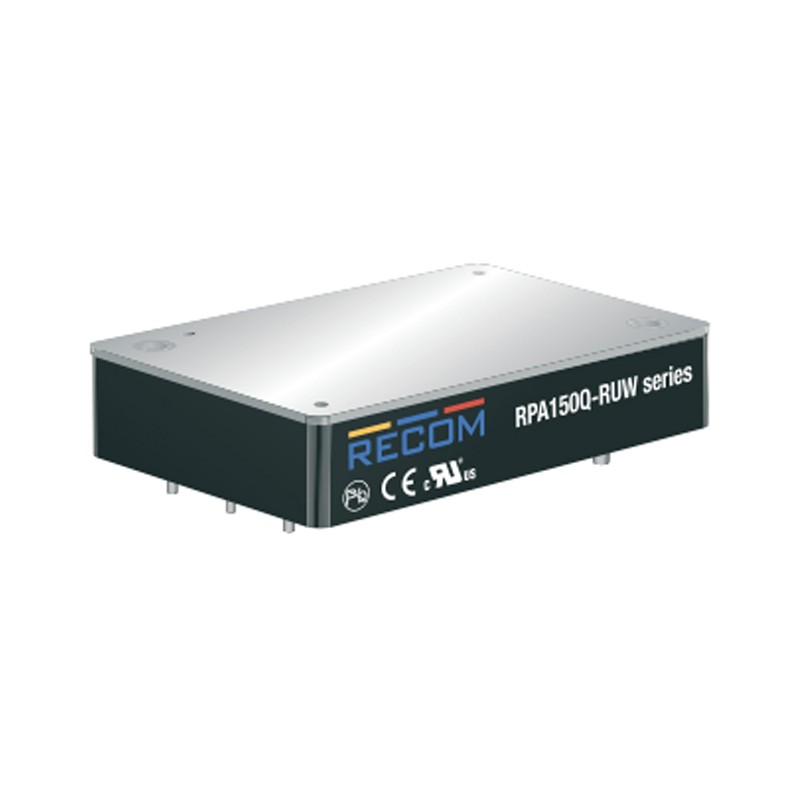

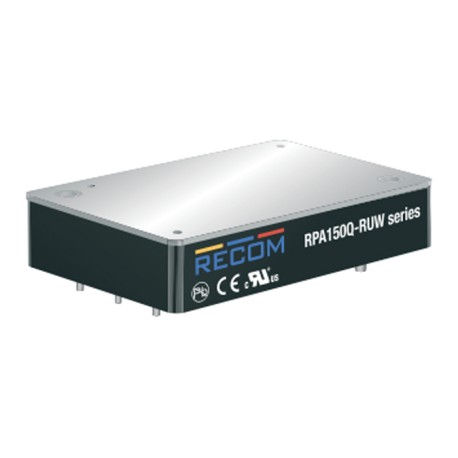

Recom DC/DC converters series RPA150Q-RUW

DC/DC converters in a 1/4 brick housing with a input voltage ratio of 16:1 and suitable for direct PCB mounting. These devices are protected against over load, over voltage, and over temperature. Further more they conform with the safety norms of EN62368-1, as well as the EMV norms EN 55032 class A, and EN 55011. We offer the following types of this Recom series: RPA150Q-11012SRUW/P, RPA150Q-11024SRUW/P, and RPA150Q-11054SRUW/P.

  • single output
  • current: 150W
  • output voltage tolerance: ±1,0%
  • isolation voltage (I/P-O/P): 4242V DC
  • operating temperature: -40 to +85°C
  • dimensions: 60,6x39x12,7mm
  • weight: 88g
RPA150Q-11024SRUW/P, Recom DC/DC converters, 150W, 1/4 brick housing, RPA150Q-RUW series

RPA150Q-11024SRUW/P

247159 RPA150Q-11024SRUW/P RPA150Q-11024SRUW/P Recom DC/DC converters series RPA150Q-RUW. DC/DC converters in a 1/4 brick housing with a input voltage ratio of 16:1 and suitable for direct PCB mounting. These devices are protected against over load, over voltage, and over temperature. Further more they conform with the safety norms of EN62368-1, as well as the EMV norms EN 55032 class A, and EN 55011. We offer the following types of this Recom series: RPA150Q-11012SRUW/P, RPA150Q-11024SRUW/P, and RPA150Q-11054SRUW/P. single output current: 150W output voltage tolerance: ±1,0% isolation voltage (I/P-O/P): 4242V DC operating temperature: -40 to +85°C dimensions: 60,6x39x12,7mm weight: 88g

Specifications

manufacturer
Manufacturer's name RPA150Q-1102...
Output voltage [V] 24
Input voltage range [V] 14,4...170
Efficiency [%] 89
Output current [A] 6,25

Unit price

137,09 €

Stock: 0
Further delivery:
CW 04/2026
