RPA100E-4805SW/N

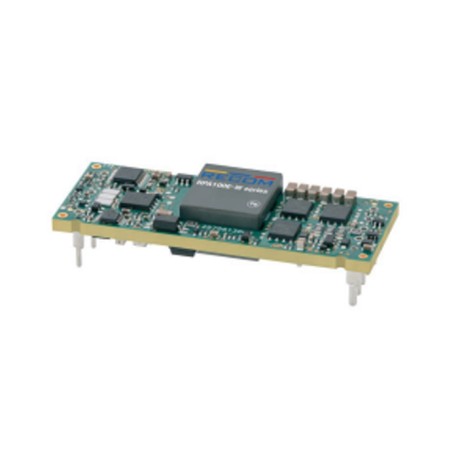

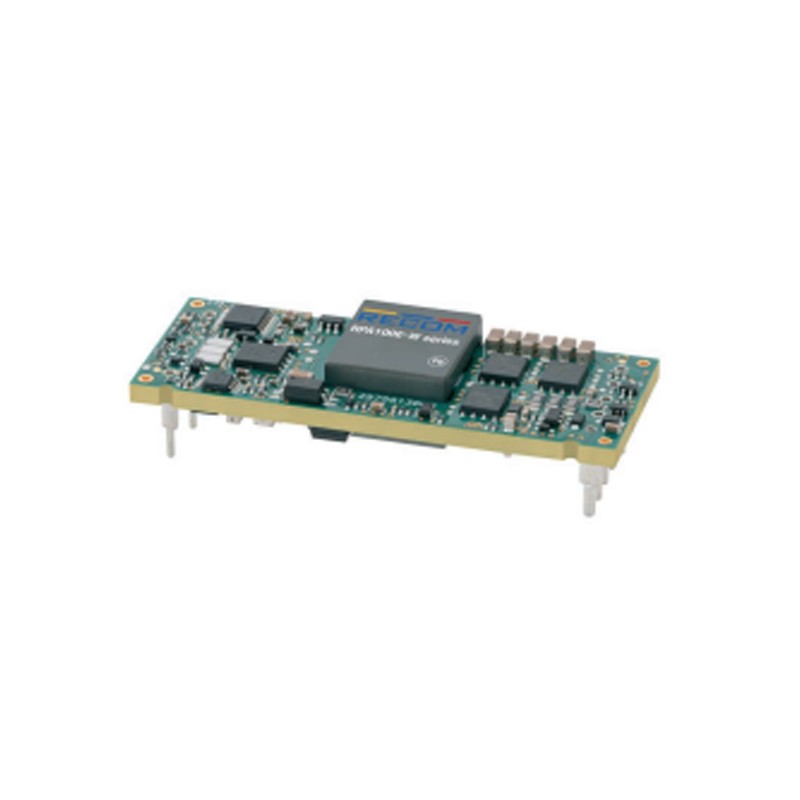

Recom DC/DC converters series RPA100E-W

DC/DC voltage converters in a  open frame, with an input voltage ratio of 4:1, and suitable for direct PCB mounting. These devices are equiped remote control, sense-, and trimm-pins, as well as they are protected against overload, over temperature, overvoltage, and short circuit. Furthermore they conform with the safety norms of UL62368-1. We offer the following types of this Recom series: RPA100E-4805SW/N und RPA100E-4812SW/N.

  • single output
  • current: 100W
  • output voltage tolerance: ±1,5%
  • isolation voltage (I/P-O/P): 1500V DC
  • operating temperature: -40 to +85°C
  • dimensions: 58,8x22,8x11mm
  • weight: 24,6g
RPA100E-4805SW/N, Recom DC/DC converters, 100W, open frame, RPA100E-W series

RPA100E-4805SW/N

247148 RPA100E-4805SW/N RPA100E-4805SW/N Recom DC/DC converters series RPA100E-W. DC/DC voltage converters in a  open frame, with an input voltage ratio of 4:1, and suitable for direct PCB mounting. These devices are equiped remote control, sense-, and trimm-pins, as well as they are protected against overload, over temperature, overvoltage, and short circuit. Furthermore they conform with the safety norms of UL62368-1. We offer the following types of this Recom series: RPA100E-4805SW/N und RPA100E-4812SW/N. single output current: 100W output voltage tolerance: ±1,5% isolation voltage (I/P-O/P): 1500V DC operating temperature: -40 to +85°C dimensions: 58,8x22,8x11mm weight: 24,6g

Specifications

manufacturer
Manufacturer's name RPA100E-4805SW/N
Output voltage [V] 5
Input voltage range [V] 18...75
Efficiency [%] 91
Output current [A] 25
Ripple [mVp-p] 70
Data Sheet

Unit price

36,79 €

Stock: 0
Further delivery:
CW 35/2025
