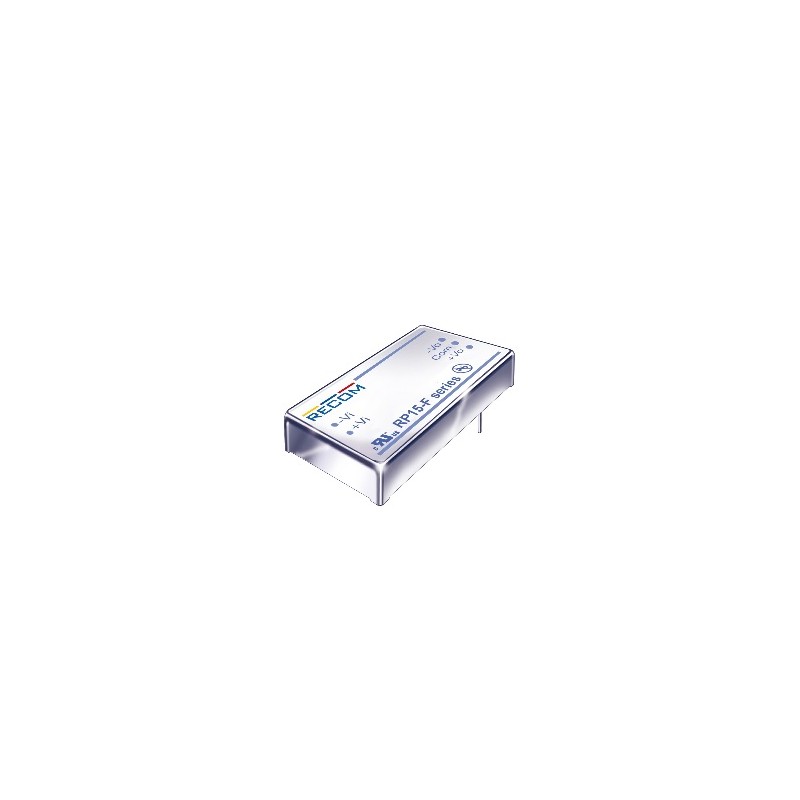

RP15-2405SF

DC/DC-converter modules series RP15-F

These converter modules with 2x1 housing are suitable for direct PCB mounting. The input voltage ratio is 2:1 and the isolation voltage is 1.6kV AC and they are equipped with a six-sides continuous shield. Furthermore, they are characterized by a fixed operating frequency. We are offering the following article by Recom: RP15-2405SF.

• output: 15 W
• single output
• voltage accuracy, max. (load 100%): ±1%
• ripple & noise, max. 50mVpp
• operating temperature: -40 to +75°C
• weight: 27g

DC/DC-converter modules series RP15-F

RP15-2405SF

109060 RP15-2405SF RP15-2405SF DC/DC-converter modules series RP15-F. These converter modules with 2x1 housing are suitable for direct PCB mounting. The input voltage ratio is 2:1 and the isolation voltage is 1.6kV AC and they are equipped with a six-sides continuous shield. Furthermore, they are characterized by a fixed operating frequency. We are offering the following article by Recom: RP15-2405SF.• output: 15 W• single output• voltage accuracy, max. (load 100%): ±1%• ripple & noise, max. 50mVpp• operating temperature: -40 to +75°C• weight: 27g

Specifications

manufacturer
Manufacturer's name RP15-2405SF
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 3000
Efficiency [%] 84
Data Sheet

Unit price

53,69 €

Stock: 11
Further delivery:
CW 10/2025
