RP15-2412SAW

Recom DC/DC converter series RP15-AW

These modules in DIP/DIL24 housing and are suitable for direct PCB mounting. The input voltage ratio is 4:1 and the isolation voltage is 1.6kV AC. Furthermore, the devices are characterized by a six-sides continuous shield and are equipped with a fixed operating frequency. We are offering the following articles by Recom: RP15-2405SAW and RP15-2412SAW.

  • single output
  • output: 15W
  • voltage accuracy (load 100%): ±1%
  • maximal ripple & noise
    • 5Vout: 75mVpp
    • 12Vout: 100mVpp
  • operating temperature: -40 to +67°C
  • weight: 15g

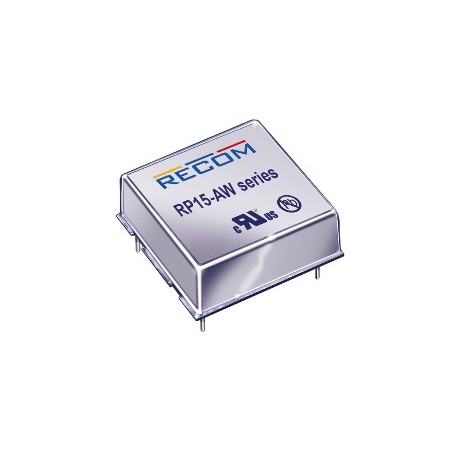

DC/DC-converter modules series RP15-AW

RP15-2412SAW

109059 RP15-2412SAW RP15-2412SAW Recom DC/DC converter series RP15-AW. These modules in DIP/DIL24 housing and are suitable for direct PCB mounting. The input voltage ratio is 4:1 and the isolation voltage is 1.6kV AC. Furthermore, the devices are characterized by a six-sides continuous shield and are equipped with a fixed operating frequency. We are offering the following articles by Recom: RP15-2405SAW and RP15-2412SAW. single output output: 15W voltage accuracy (load 100%): ±1% maximal ripple & noise 5Vout: 75mVpp 12Vout: 100mVpp operating temperature: -40 to +67°C weight: 15g

Specifications

manufacturer
Manufacturer's name RP15-2412SAW
Input voltage [V] 9...36
Output voltage [V] 12
Output current range [mA] 1300
Efficiency [%] 87
Data Sheet

Unit price

55,09 €

Stock: 25
Further delivery:
CW 10/2025
