RP12-2415DAW

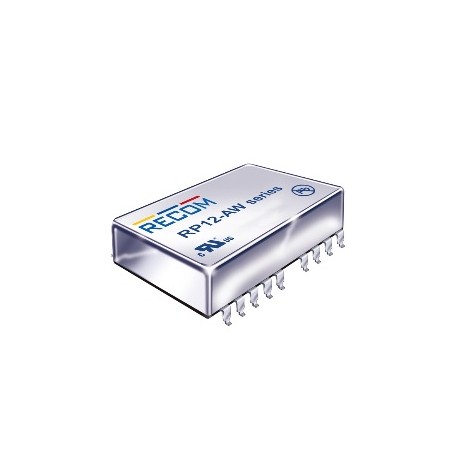

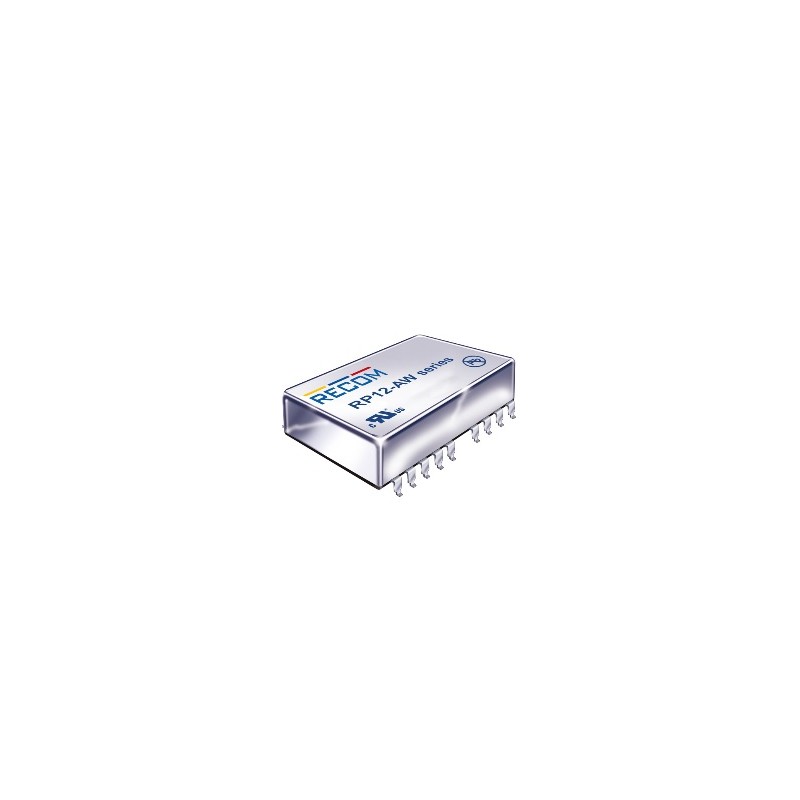

Recom DC/DC converter series RP12-AW

These converter modules in DIP/DIL24 housing are suitable for direct PCB mounting. Their input voltage ratio is 4:1 and the isolation voltage is 1.6kV AC. They are equipped with an over current and over voltage protection and there is no minimum load required. We are offering the following articles by Recom: RP12-2405SAW, RP12-2412SAW and RP12-2415DAW.

  • single (RP12-_SAW) & dual output (RP12-_DAW)
  • output: 12W
  • voltage accuracy (load 100%): ±1.2%
  • maximal ripple & noise: 85mVpp
  • operating temperature: -40 to +70°C
  • weight: 18g

DC/DC-converter modules series RP12-AW

RP12-2415DAW

109057 RP12-2415DAW RP12-2415DAW Recom DC/DC converter series RP12-AW. These converter modules in DIP/DIL24 housing are suitable for direct PCB mounting. Their input voltage ratio is 4:1 and the isolation voltage is 1.6kV AC. They are equipped with an over current and over voltage protection and there is no minimum load required. We are offering the following articles by Recom: RP12-2405SAW, RP12-2412SAW and RP12-2415DAW. single (RP12-_SAW) & dual output (RP12-_DAW) output: 12W voltage accuracy (load 100%): ±1.2% maximal ripple & noise: 85mVpp operating temperature: -40 to +70°C weight: 18g

Specifications

manufacturer
Manufacturer's name RP12-2415DAW
Input voltage [V] 9...36
Output voltage [V] ±15
Output current range [mA] ±400
Efficiency [%] 87
Data Sheet

Unit price

50,49 €

Stock: 25
Further delivery:
CW 10/2025
