RP10-11024SRAW

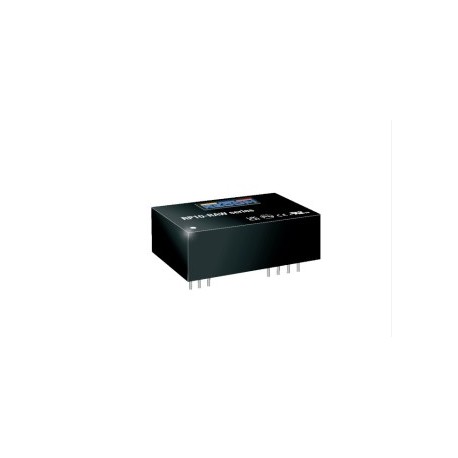

Recom DC/DC converter series RP10-RAW

DC/DC converter modules in a DIL24 housing with 10W, an input undervoltage lockout and a remote ON/OFF control. These devices are suitable for railway applications and comply with EN50155, EN62368-1 as well as EN55035. They have an input voltage ratio of 4:1 and are protected against overload, short circuit as well as overvoltage. We offer various types of this Recom series.

  • single output
  • output: 10W
  • output voltage tolerance: ±1%
  • maximal ripple and noise: 75mVpp
  • withstand voltage I/P-O/P: 1600V DC (3000V AC)
  • operating temperature: -40 to +105°C
  • dimensions: 31,8x20,3x10,6mm
  • weight: 14g
RP10-11024SRAW, Recom DC/DC converters, 10W, DIL24 housing, EN 50155 railway standard, RP10-RAW series

RP10-11024SRAW

247125 RP10-11024SRAW RP10-11024SRAW Recom DC/DC converter series RP10-RAW. DC/DC converter modules in a DIL24 housing with 10W, an input undervoltage lockout and a remote ON/OFF control. These devices are suitable for railway applications and comply with EN50155, EN62368-1 as well as EN55035. They have an input voltage ratio of 4:1 and are protected against overload, short circuit as well as overvoltage. We offer various types of this Recom series. single output output: 10W output voltage tolerance: ±1% maximal ripple and noise: 75mVpp withstand voltage I/P-O/P: 1600V DC (3000V AC) operating temperature: -40 to +105°C dimensions: 31,8x20,3x10,6mm weight: 14g

Specifications

manufacturer
Manufacturer's name RP10-11024SRAW
Input voltage [V] 36...160
Output voltage [V] 24
Output current [mA] 416
Efficiency [%] 87,5
Data Sheet

Unit price

48,19 €

Stock: 0
Further delivery:
CW 50/2024

Minimum order quantity 7 units or
multiples of 7.
