RP06-11012SRAW

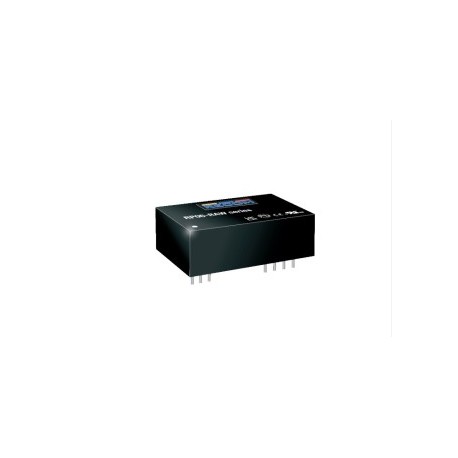

Recom DC/DC converter series RP06-RAW

DC/DC converter modules in a DIL24 housing with 6W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for railway applications and are protected against overload, overvoltage as well as short circuit. They have an input undervoltage lockout, are suitable for PCB mounting and comply with EN62368-1, EN50155 as well as EN55035. We offer various types of this Recom series.

  • single output
  • output: 6W
  • output voltage tolerance: ±1%
  • maximal ripple and noise: 75mVpp
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -40 to +105°C
  • dimensions: 31,8x20,3x10,6mm
  • weight: 14g
RP06-11012SRAW, Recom DC/DC converters, 6W, DIL24 housing, EN 50155 railway standard, RP06-RAW series

RP06-11012SRAW

242837 RP06-11012SRAW RP06-11012SRAW Recom DC/DC converter series RP06-RAW. DC/DC converter modules in a DIL24 housing with 6W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for railway applications and are protected against overload, overvoltage as well as short circuit. They have an input undervoltage lockout, are suitable for PCB mounting and comply with EN62368-1, EN50155 as well as EN55035. We offer various types of this Recom series. single output output: 6W output voltage tolerance: ±1% maximal ripple and noise: 75mVpp withstand voltage I/P-O/P: 3000V AC operating temperature: -40 to +105°C dimensions: 31,8x20,3x10,6mm weight: 14g

Specifications

manufacturer
Manufacturer's name RP06-11012SRAW
Input voltage [V] 36...160
Output voltage [V] 12
Output current [mA] 500
Efficiency [%] 84,5
Data Sheet

Unit price

44,79 €

Stock: 7
Further delivery:
CW 06/2025
