RP03-11012DRAW

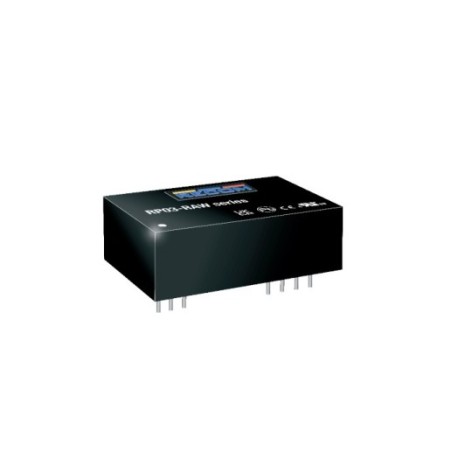

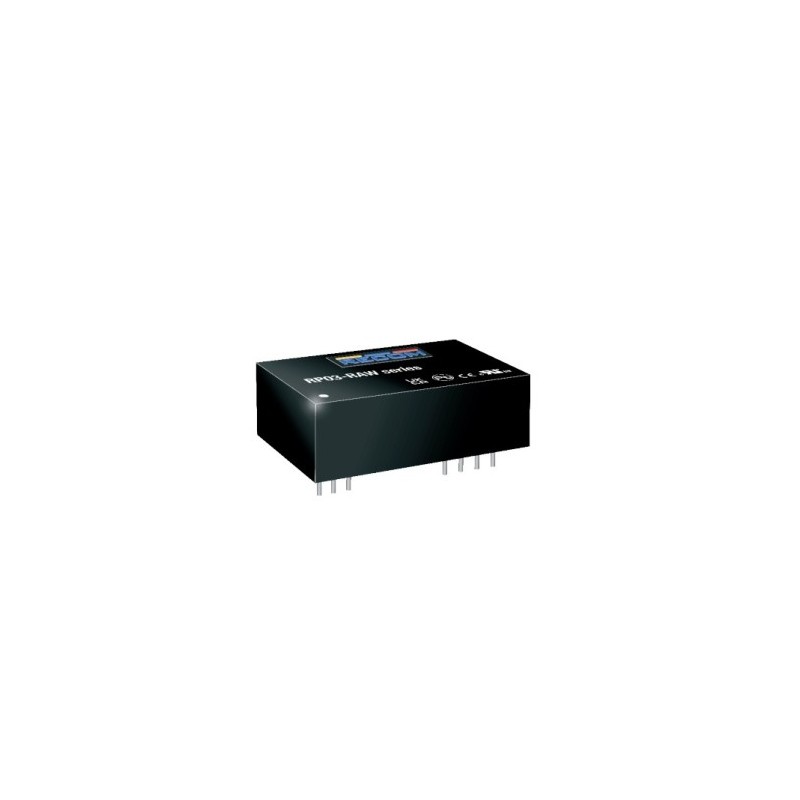

Recom DC/DC converter series RP03-RAW

DC/DC converter modules in a DIL24 housing with 3W, an input voltage ratio of 4:1, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and comply with EN62368-1, EN55032 class A/B, EN50155 as well as EN50121-3-2. They are suitable for railway applications and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Recom series: RP03-11012SRAW, RP03-11005SRAW, RP03-11012DRAW, RP03-11015SRAW, and RP03-11024SRAW.

  • single output
  • output: 3W
  • output voltage tolerance: ±1%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -40 to +105°C
  • dimensions: 31,8x20,3x10,6mm
  • weight: 14g
RP03-11012DRAW, Recom DC/DC converters, 3W, DIL24 housing, EN 50155 railway standard, RP03-RAW series

RP03-11012DRAW

247075 RP03-11012DRAW RP03-11012DRAW Recom DC/DC converter series RP03-RAW. DC/DC converter modules in a DIL24 housing with 3W, an input voltage ratio of 4:1, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and comply with EN62368-1, EN55032 class A/B, EN50155 as well as EN50121-3-2. They are suitable for railway applications and are protected against overload, short circuit as well as overvoltage. We offer the following types of this Recom series: RP03-11012SRAW, RP03-11005SRAW, RP03-11012DRAW, RP03-11015SRAW, and RP03-11024SRAW. single output output: 3W output voltage tolerance: ±1% withstand voltage I/P-O/P: 3000V AC operating temperature: -40 to +105°C dimensions: 31,8x20,3x10,6mm weight: 14g

Specifications

manufacturer
Manufacturer's name RP03-11012DRAW
Input voltage [V] 36...160
Output voltage [V] ±12
Output current [mA] ±125
Efficiency [%] 85
Ripple [mVp-p] 75
Data Sheet

Unit price

42,99 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 7 units or
multiples of 7.
