RP-1212S

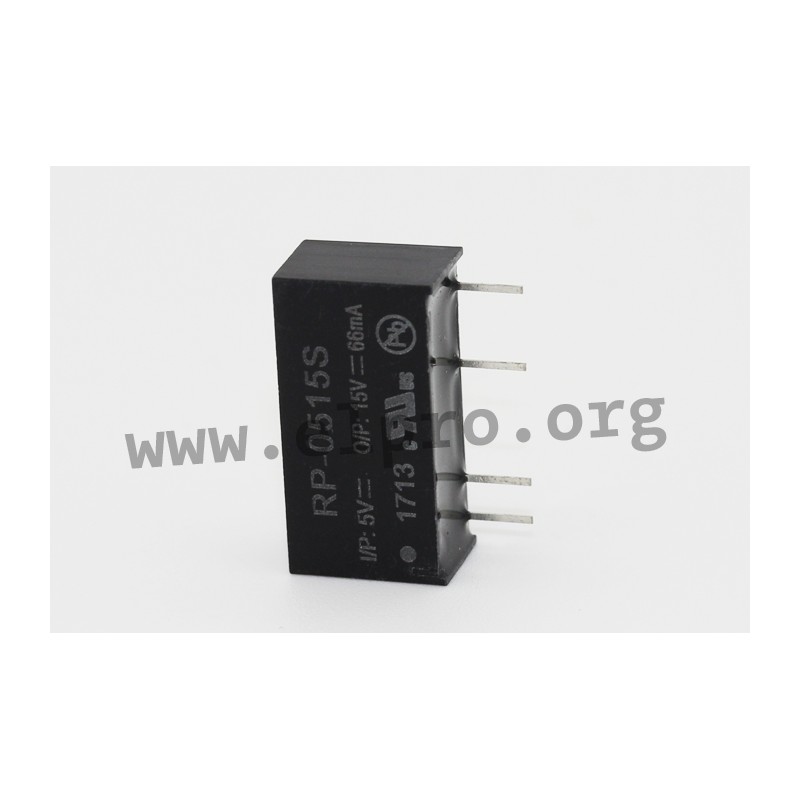

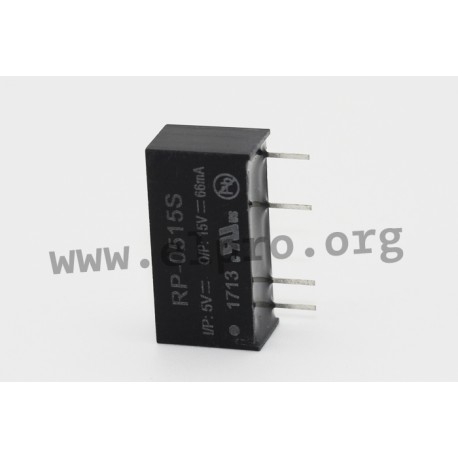

Recom DC/DC converter series RP

DC/DC converters in a SIL7 housing with 1W are versatile and reliable devices that can be used for medical and IGBT applications. These modules feature separated windings (pot-core transformer) and an industry standard pin-out, making them easy to integrate into various systems. They comply with EN60950-1 and EN55032 class A standards, ensuring their safety and electromagnetic compatibility. The RP_S type has a single output while the RP_D type has dual outputs; both types are available as well as versions with continuous short circuit protection (RP_/P). Direct PCB mounting is possible due to their compact dimensions of 19,65x7,05x10,2mm. We offer various types of this Recom series.

  • single (RP_S) resp. dual output (RP_D)
  • output: 1W
  • output voltage tolerance: ±5%
  • operating temperature: -40 to +90°C

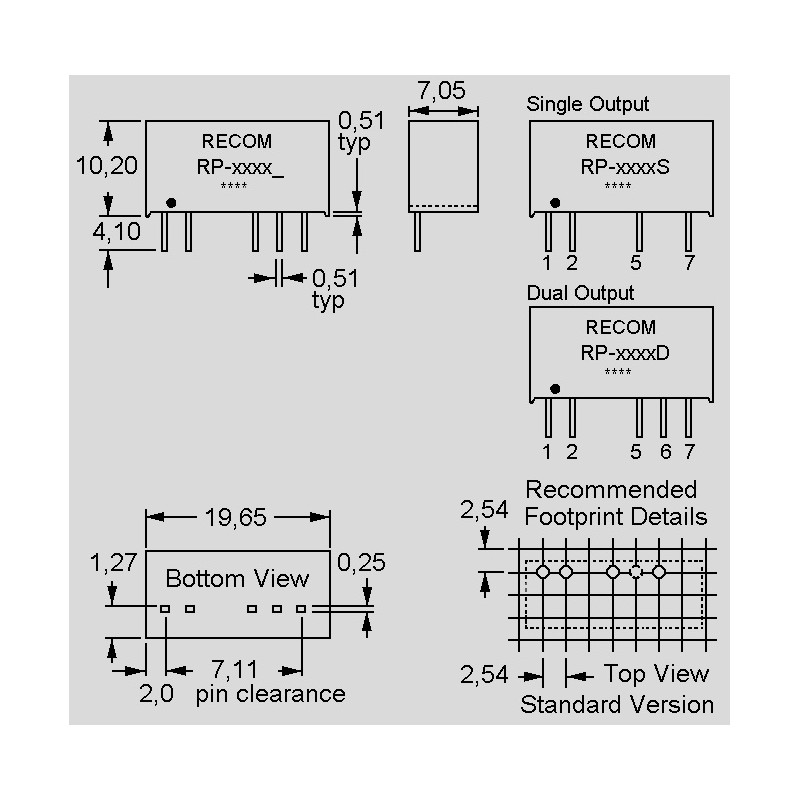

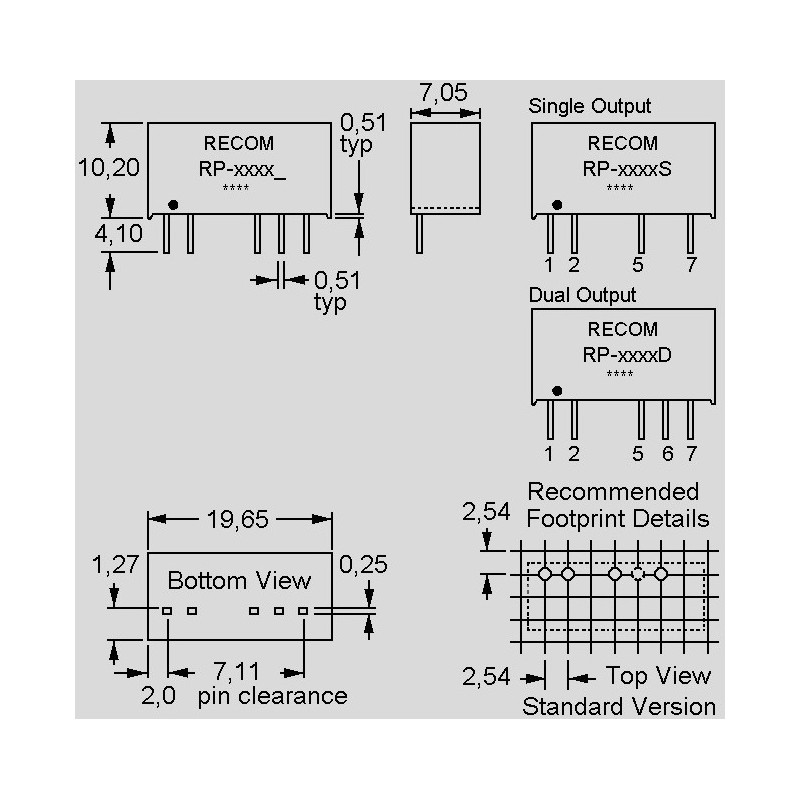

  • dimensions: 19,65x7,05x10,2mm
  • weight: 2,4g
RP-0505S, Recom DC/DC converters, 1W, SIL7 housing, for medical technology, RP series

RP-1212S

43630 RP-1212S RP-1212S Recom DC/DC converter series RP. DC/DC converters in a SIL7 housing with 1W are versatile and reliable devices that can be used for medical and IGBT applications. These modules feature separated windings (pot-core transformer) and an industry standard pin-out, making them easy to integrate into various systems. They comply with EN60950-1 and EN55032 class A standards, ensuring their safety and electromagnetic compatibility. The RP_S type has a single output while the RP_D type has dual outputs; both types are available as well as versions with continuous short circuit protection (RP_/P). Direct PCB mounting is possible due to their compact dimensions of 19,65x7,05x10,2mm. We offer various types of this Recom series. single (RP_S) resp. dual output (RP_D) output: 1W output voltage tolerance: ±5% operating temperature: -40 to +90°C dimensions: 19,65x7,05x10,2mm weight: 2,4g

Specifications

manufacturer
Manufacturer's name RP-1212S
Case SIL 7 case
Input voltage [V] 12
Output voltage [V] 12
Output current [mA] 84
Efficiency [%] 75...78
Data Sheet

Unit price

13,49 €

Stock: 21
Further delivery:
CW 06/2025
