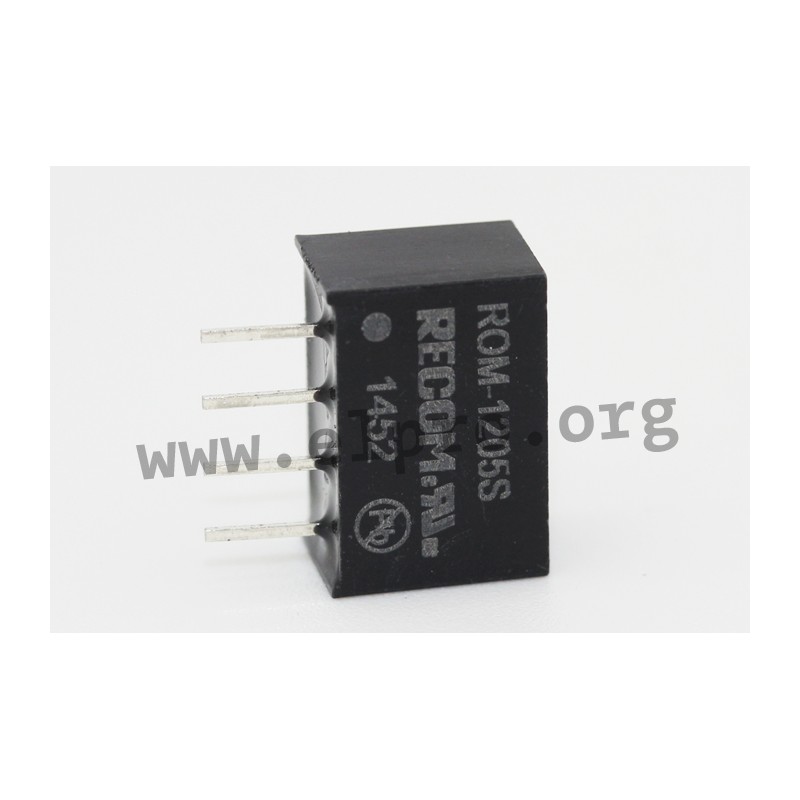

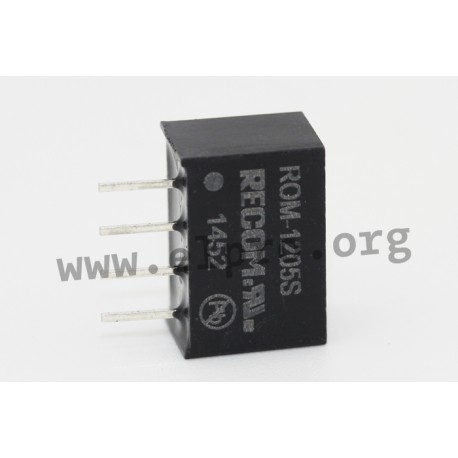

ROM-1212S

Recom DC/DC converter series ROM

DC/DC converters with a fully encapsulated design and SIL4 housing are ideal for medical applications. These devices feature an industry standard pinout, ensuring easy integration into existing systems. With an isolation voltage of 3000V DC, they provide reliable protection against electrical interference. The output power of these modules is 1W, making them suitable for a wide range of low-power applications in the medical field. Their compact size and robust construction make them well-suited to harsh environments where space is at a premium. We offer the following types of this Recom series: ROM-0505S, ROM-0512S, ROM-1205S and ROM-1212S.

  • single output
  • output: 1W
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +85°C
Recom ROM-_ series

ROM-1212S

43619 ROM-1212S ROM-1212S Recom DC/DC converter series ROM. DC/DC converters with a fully encapsulated design and SIL4 housing are ideal for medical applications. These devices feature an industry standard pinout, ensuring easy integration into existing systems. With an isolation voltage of 3000V DC, they provide reliable protection against electrical interference. The output power of these modules is 1W, making them suitable for a wide range of low-power applications in the medical field. Their compact size and robust construction make them well-suited to harsh environments where space is at a premium. We offer the following types of this Recom series: ROM-0505S, ROM-0512S, ROM-1205S and ROM-1212S. single output output: 1W  withstand voltage: 3000V DC operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name ROM-1212S

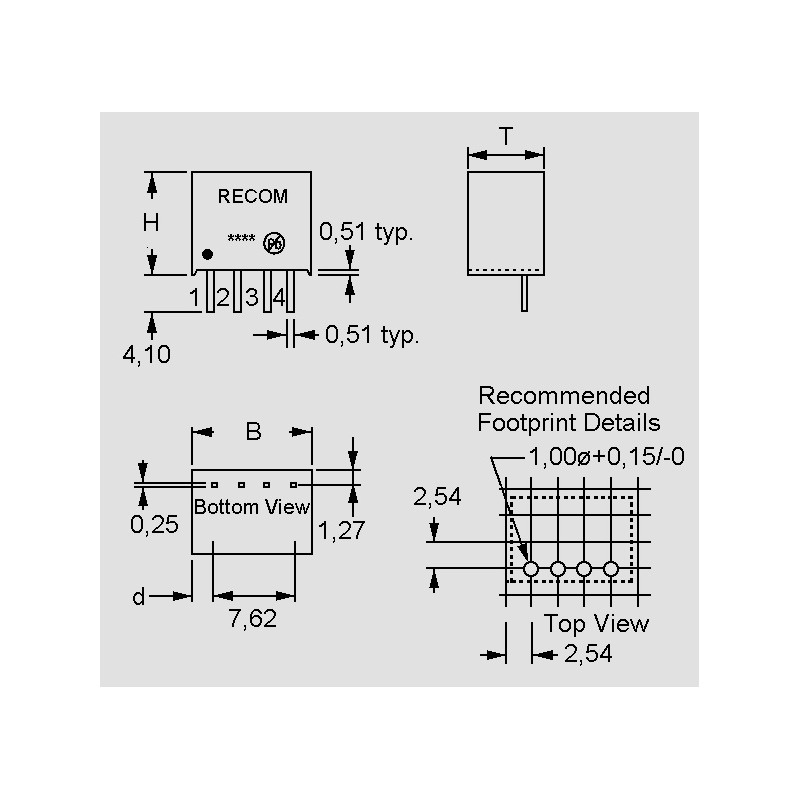

Case SIL 4 case
Input voltage [V] 12
Output voltage [V] 12
Output current [mA] 83
Efficiency [%] 78...82
Data Sheet

Unit price

7,49 €

Stock: 68
Further delivery:
CW 17/2025
