ROF-78E5.0-0.5SMD-R

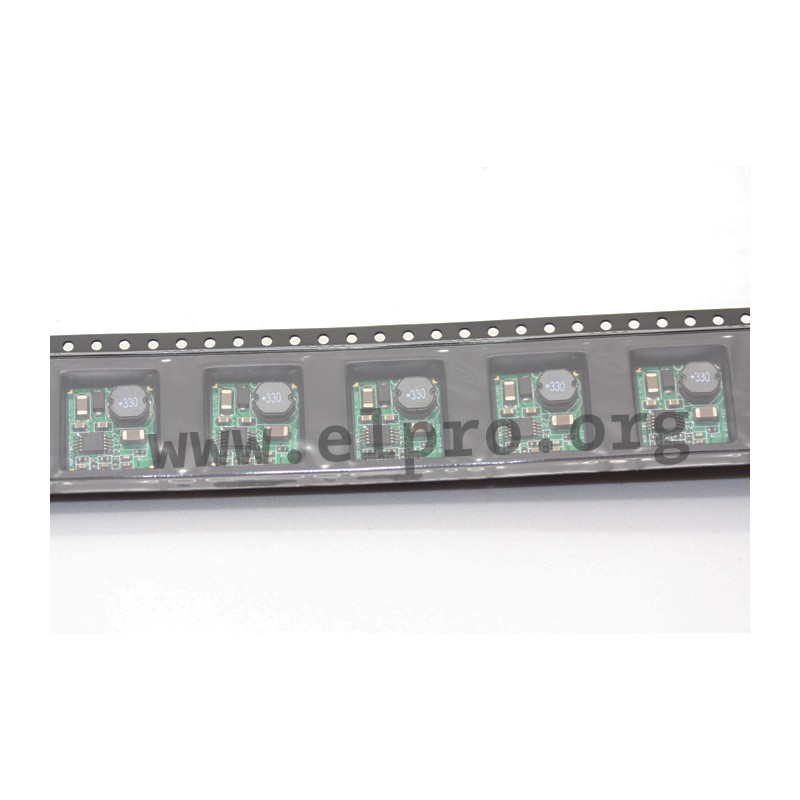

Recom DC/DC converter series ROF-78-E

DC/DC switching regulators in an SMD housing with 0,5A and a wide input voltage range. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. We offer the following types of this Recom series: ROF-78E3.3-0.5SMDR, ROF-78E12-0.5SMD-R and ROF-78E5.0-0.5SMD-R.

  • single output
  • maximal output voltage tolerance: 5%
  • maximal ripple and noise: 100mVpp
  • operating temperature: -40 to +85°C
  • weight: 1g

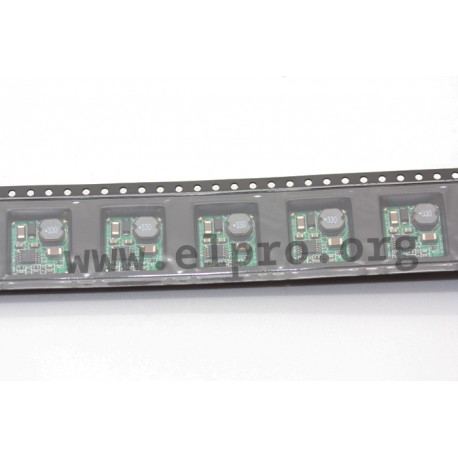

ROF-78E5.0-0.5SMD-R, Recom DC/DC switching regulators, 0,5A, SMD, ROF-78-E series

ROF-78E5.0-0.5SMD-R

235416 ROF-78E5.0-0.5SMD-R ROF-78E5.0-0.5SMD-R Recom DC/DC converter series ROF-78-E. DC/DC switching regulators in an SMD housing with 0,5A and a wide input voltage range. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. We offer the following types of this Recom series: ROF-78E3.3-0.5SMDR, ROF-78E12-0.5SMD-R and ROF-78E5.0-0.5SMD-R. single output maximal output voltage tolerance: 5% maximal ripple and noise: 100mVpp operating temperature: -40 to +85°C weight: 1g

Specifications

manufacturer
Manufacturer's name ROF-78E5.0-0...
Output voltage [V] 5
Input voltage range [V] 9...36
Efficiency [%] 79...87
Output current [mA] 500
Data Sheet

Unit price

4,09 €

Stock: 630
Further delivery:
CW 15/2025

Minimum order quantity 10 units or
multiples of 10.
