RNM-0505S

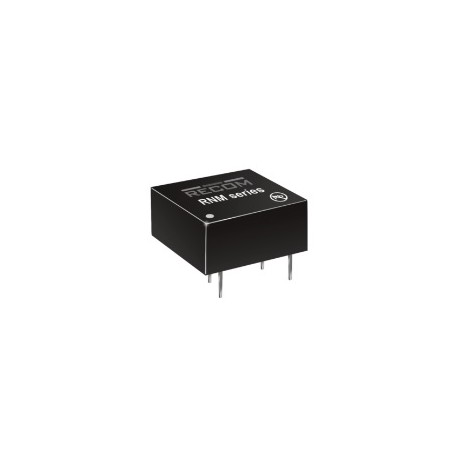

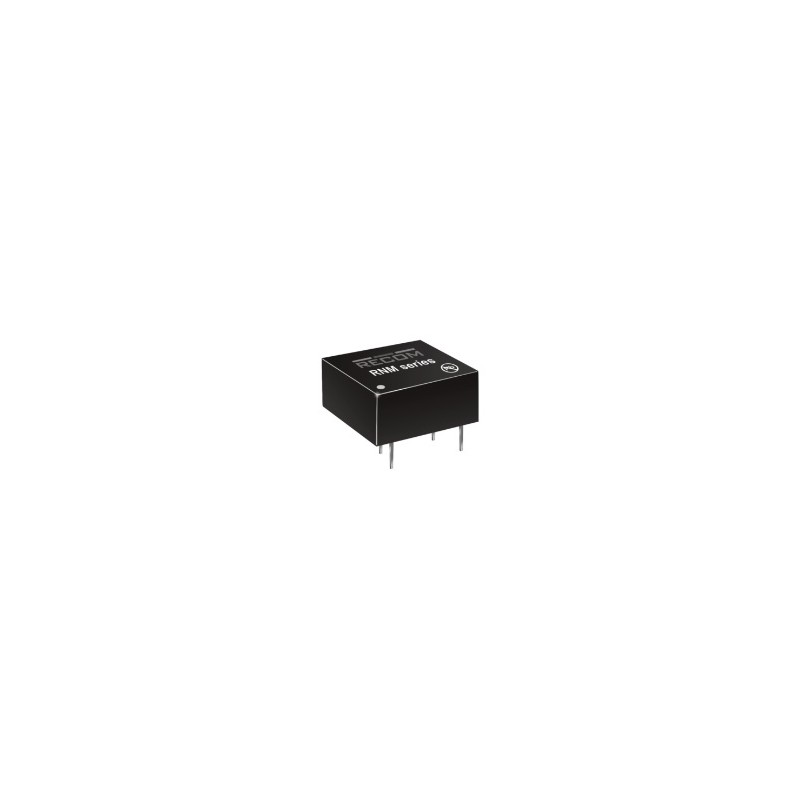

Recom DC/DC converter series RNM

These devices in DIP/DIL6 housing are suitable for direct PCB mounting. Their efficiency is up to 78% and they conform industry standard pinout. The converter modules are characterized by 1kV DC isolation and are fully encapsulated. We are offering the following types by Recom: RNM-3.305S, RNM-0505S, RNM-0512S and RNM-1212S.

  • single output
  • voltage accuracy (100% load): ±5%
  • maximal ripple & noise: 100mVpp
  • operating temperature: -40 to +85°C
  • weight: 1,1g
DC/DC converter modules series RNM

RNM-0505S

108882 RNM-0505S RNM-0505S Recom DC/DC converter series RNM. These devices in DIP/DIL6 housing are suitable for direct PCB mounting. Their efficiency is up to 78% and they conform industry standard pinout. The converter modules are characterized by 1kV DC isolation and are fully encapsulated. We are offering the following types by Recom: RNM-3.305S, RNM-0505S, RNM-0512S and RNM-1212S. single output voltage accuracy (100% load): ±5% maximal ripple & noise: 100mVpp operating temperature: -40 to +85°C weight: 1,1g

Specifications

manufacturer
Manufacturer's name RNM-0505S
Input voltage [V] 5
Output voltage [V] 5
Efficiency [%] 70...78
Output current [mA] 200
Data Sheet

Unit price

7,29 €

Stock: 145
Further delivery:
CW 02/2025
