RN-0505S

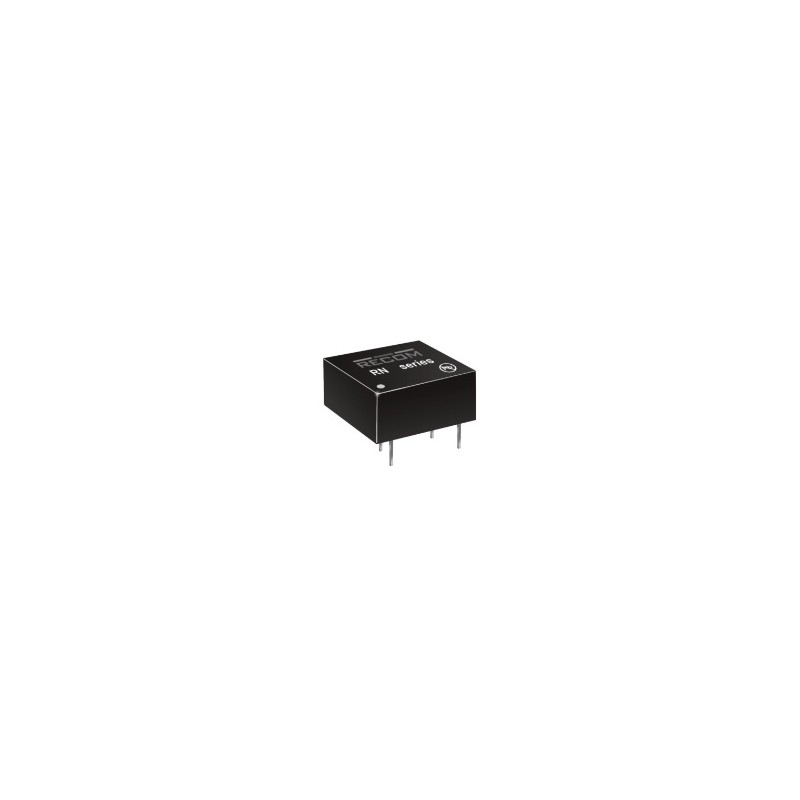

Recom DC/DC converter series RN

These converter modules possess a DIP/DIL8 housing and are suitable for direct PCB mounting. They have an industry standard pin-out and there is no heatsink required. The devices have got an input/output insulation of 1kV DC and their efficiency is up to 85%. We are offering the following articles by Recom: RN-0505S, RN-0524S, RN-1224S and RN-2412S.

  • voltage accuracy: ±5%
  • maximal ripple & noise: 75mVpp
  • operating temperature: -40 to +85°C
  • weight: 1.9g
RN-series by Recom

RN-0505S

108925 RN-0505S RN-0505S Recom DC/DC converter series RN. These converter modules possess a DIP/DIL8 housing and are suitable for direct PCB mounting. They have an industry standard pin-out and there is no heatsink required. The devices have got an input/output insulation of 1kV DC and their efficiency is up to 85%. We are offering the following articles by Recom: RN-0505S, RN-0524S, RN-1224S and RN-2412S. voltage accuracy: ±5% maximal ripple & noise: 75mVpp operating temperature: -40 to +85°C weight: 1.9g

Specifications

manufacturer
Manufacturer's name RN-0505S
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 250
Efficiency [%] 70...72
Data Sheet

Unit price

7,99 €

Stock: 65
Further delivery:
CW 06/2025
