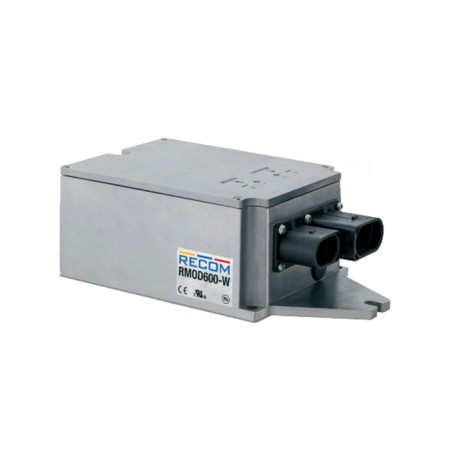

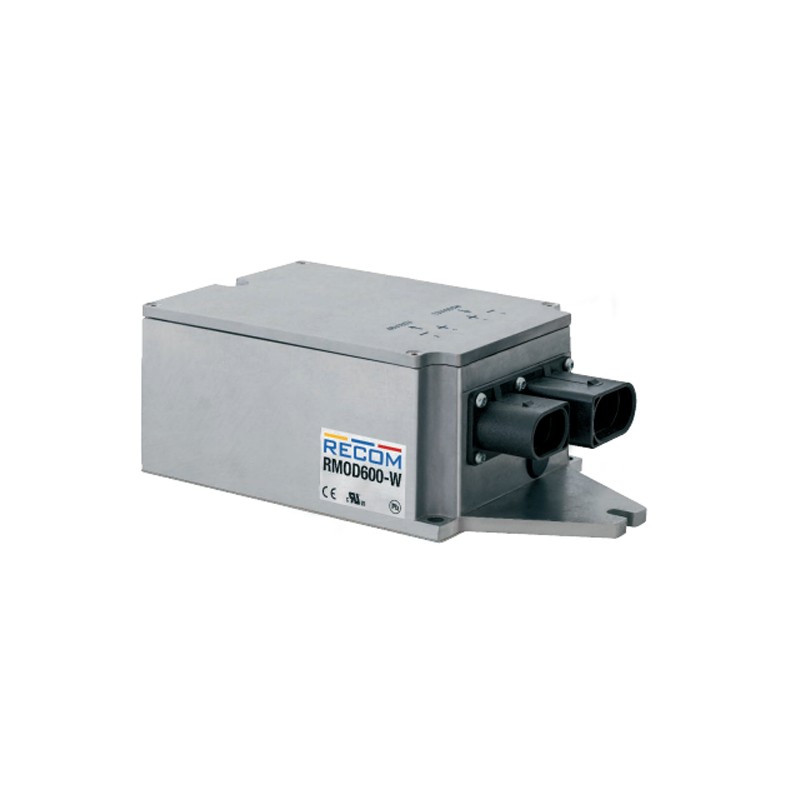

RMOD600-60-24SW

Recom DC/DC converters series RMOD600-W

DC/DC converters in a 8"x4,53" housing, with a high power density, chassis mounting, and ground plate cooling. These devices function in parallel usage, and are woter and dust proof (IP69K). They are protected against over load,over temperature, and short circuit. We offer the RMOD600-60-24SW type of this Recom series.

  • single output
  • input voltage ratio: 3:1
  • output current: 600W
  • output voltage tolerance: ±4%
  • isolation voltage (I/P-O/P): 2500V DC
  • operating temperature: -35 to +85°C
  • dimensions: 203x115x71mm
  • weight: 2000g
RMOD600-60-24SW, Recom DC/DC converters, 600W, enclosed, RMOD600-W series

RMOD600-60-24SW

247172 RMOD600-60-24SW RMOD600-60-24SW Recom DC/DC converters series RMOD600-W. DC/DC converters in a 8"x4,53" housing, with a high power density, chassis mounting, and ground plate cooling. These devices function in parallel usage, and are woter and dust proof (IP69K). They are protected against over load,over temperature, and short circuit. We offer the RMOD600-60-24SW type of this Recom series. single output input voltage ratio: 3:1 output current: 600W output voltage tolerance: ±4% isolation voltage (I/P-O/P): 2500V DC operating temperature: -35 to +85°C dimensions: 203x115x71mm weight: 2000g

Specifications

manufacturer
Manufacturer's name RMOD600-60-24SW
Output voltage [V] 24
Input voltage range [V] 33,6...96
Efficiency [%] 89
Output current [A] 25
Ripple [mVp-p] 500
Data Sheet

Unit price

389,99 €

Stock: 0
Further delivery:
CW 23/2025

Minimum order quantity 10 units or
multiples of 10.
