RMOD400-28-13SW

Recom DC/DC converters series RMOD400-W

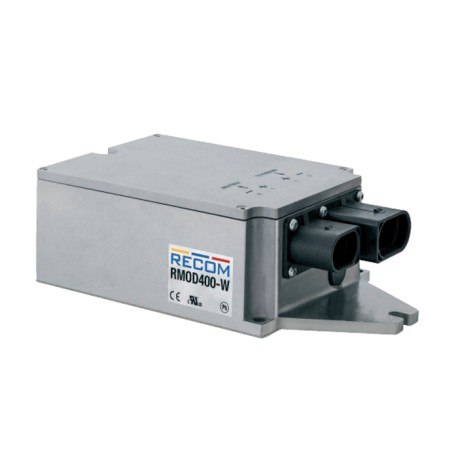

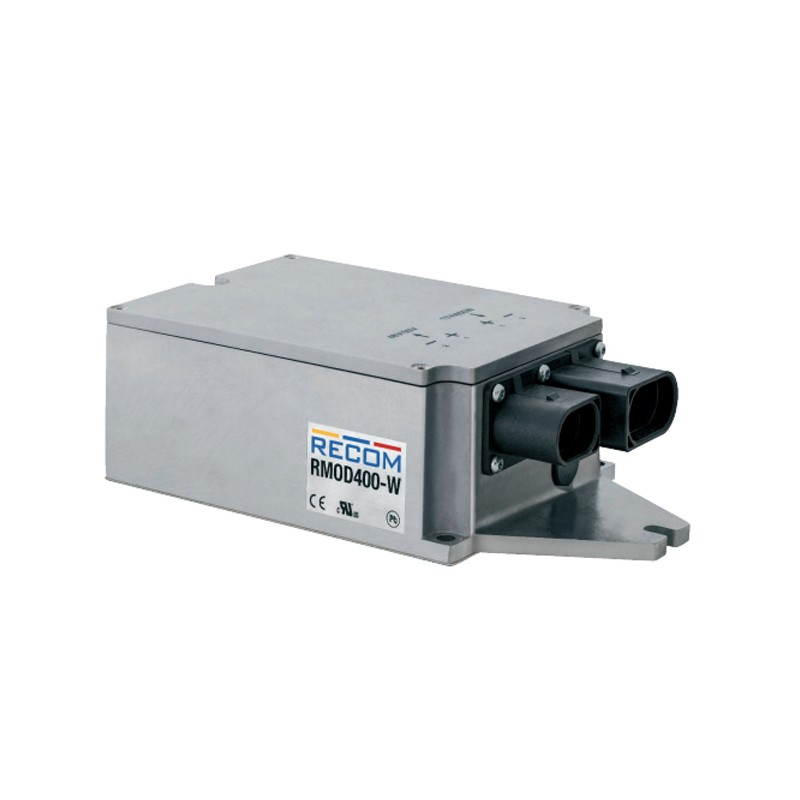

DC/DC converters in a 8"x4,53" housing, with a high power density, chassis mounting, and ground plate cooling. These devices function in parallel usage, and are woter and dust proof (IP69K). They are protected against over load,over temperature, and short circuit. We offer the following types of this Recom series: RMOD400-28-13SW and RMOD400-60-24SW.

  • single output
  • input voltage ratio: 3:1
  • output current: 400W
  • output voltage tolerance: ±4%
  • isolation voltage (I/P-O/P): 2500V DC
  • operating temperature: -35 to +85°C
  • dimensions: 203x115x61mm
  • weight: 1700g (RMOD400-28-13SW), 1500g (RMOD400-60-24SW)
RMOD400-28-13SW, Recom DC/DC converters, 400W, enclosed, RMOD400-W series

RMOD400-28-13SW

247168 RMOD400-28-13SW RMOD400-28-13SW Recom DC/DC converters series RMOD400-W. DC/DC converters in a 8"x4,53" housing, with a high power density, chassis mounting, and ground plate cooling. These devices function in parallel usage, and are woter and dust proof (IP69K). They are protected against over load,over temperature, and short circuit. We offer the following types of this Recom series: RMOD400-28-13SW and RMOD400-60-24SW. single output input voltage ratio: 3:1 output current: 400W output voltage tolerance: ±4% isolation voltage (I/P-O/P): 2500V DC operating temperature: -35 to +85°C dimensions: 203x115x61mm weight: 1700g (RMOD400-28-13SW), 1500g (RMOD400-60-24SW)

Specifications

manufacturer
Manufacturer's name RMOD400-28-13SW
Output voltage [V] 13
Input voltage range [V] 16,8...56
Efficiency [%] 85
Output current [A] 30,8
Ripple [mVp-p] 100
Data Sheet

Unit price

256,99 €

Stock: 0
Further delivery:
CW 21/2025

Minimum order quantity 10 units or
multiples of 10.
