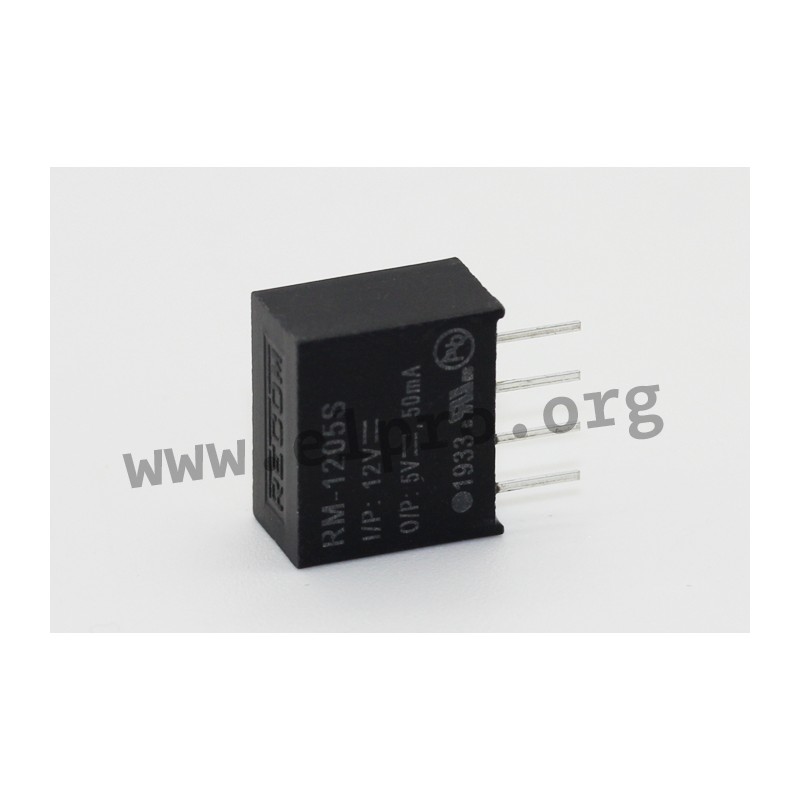

RM-2405S

Recom DC/DC converter series RM

DC/DC converters with a power output of 0.25 W in a SIP/SIL4 housing, designed for direct PCB mounting and featuring a single output. These devices come equipped with an industry-standard pin-out and boast an impressive efficiency rating of up to 76%. With fully encapsulated (UL94V-0) construction, they offer reliable performance even in harsh environments. The converters provide 1kV DC isolation and voltage accuracy within ±5% under full load conditions while maintaining ripple & noise levels below 50mVpp. Operating temperature ranges from -40°C to +85°C, making them suitable for use across various industries. We offer the following types of this Recom series: RM-3.33.3S, RM-3.305S, RM-053.3S, RM-0505S, RM-0512S, RM-123.3S, RM-1205S, RM-1212S, RM-243.3S and RM-2405S.

  • single output
  • output: 0,25W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 50mVpp
  • operating temperature: -40 to +85°C

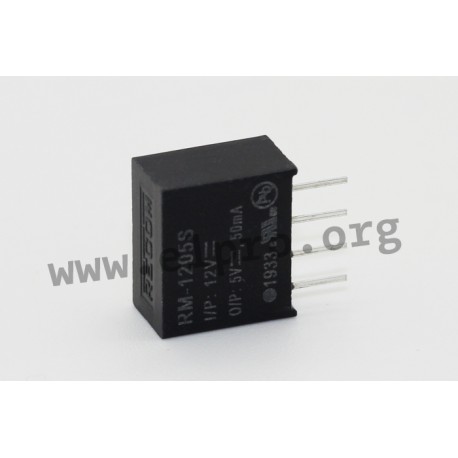

RM-2405S, 0.25 W, SIL 4 housing, RM series by Recom

RM-2405S

108848 RM-2405S RM-2405S Recom DC/DC converter series RM. DC/DC converters with a power output of 0.25 W in a SIP/SIL4 housing, designed for direct PCB mounting and featuring a single output. These devices come equipped with an industry-standard pin-out and boast an impressive efficiency rating of up to 76%. With fully encapsulated (UL94V-0) construction, they offer reliable performance even in harsh environments. The converters provide 1kV DC isolation and voltage accuracy within ±5% under full load conditions while maintaining ripple & noise levels below 50mVpp. Operating temperature ranges from -40°C to +85°C, making them suitable for use across various industries. We offer the following types of this Recom series: RM-3.33.3S, RM-3.305S, RM-053.3S, RM-0505S, RM-0512S, RM-123.3S, RM-1205S, RM-1212S, RM-243.3S and RM-2405S. single output output: 0,25W output voltage tolerance: ±5% maximal ripple and noise: 50mVpp operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name RM-2405S
Input voltage [V] 24
Output voltage [V] 5
Efficiency [%] 66...72
Output current [mA] 50
Data Sheet

Unit price

6,89 €

Stock: 98
Further delivery:
CW 02/2025
