RKZE-1515S

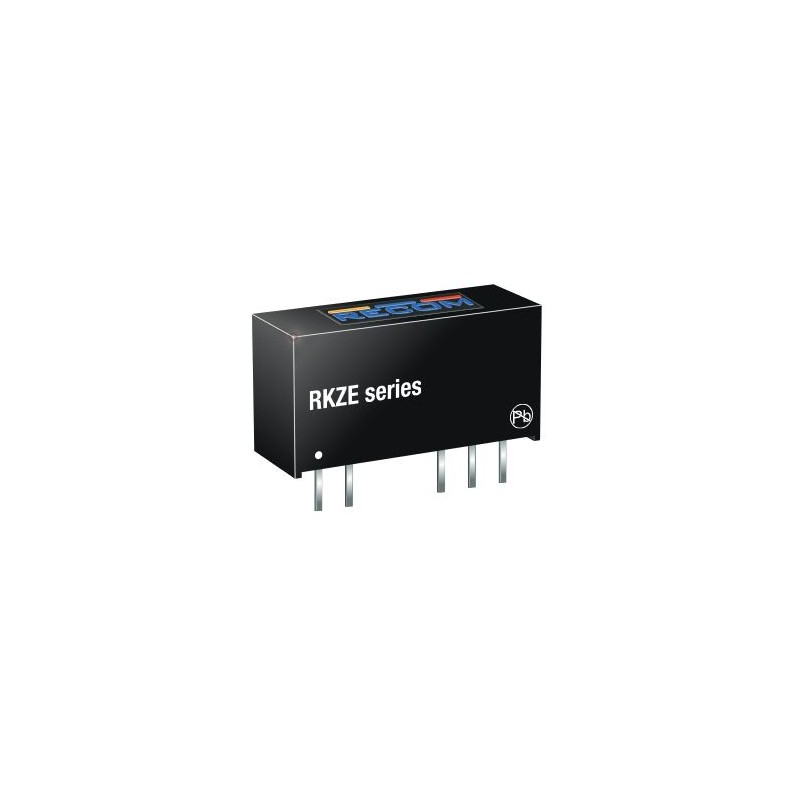

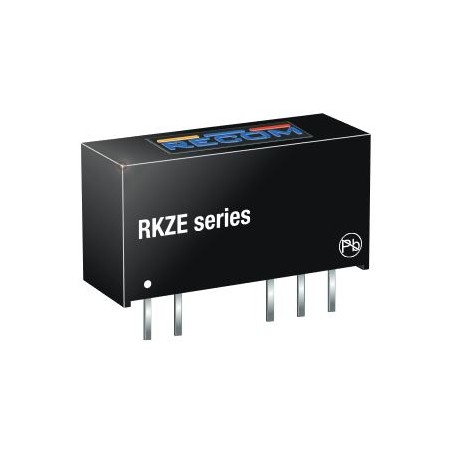

Recom DC/DC converter series RKZE

DC/DC converters (unregulated) by manufacturer Recom with an input/output insulation of 3kV DC and an efficiency of up to 88%. These devices in a SIL7 housing are suited for direct PCB mounting. We offer the types RKZE-0505S, RKZE-0505S/P, RKZE-1205S, RKZE-1212S, RKZE-1515S with single output and the type RKZE-1212D with dual output. The type RKZE-0505S/P has a short circuit protection.

  • single & dual output
  • output: 2W
  • maximal voltage accuracy (load 100%): ±10%
  • operating temperature: -40 to +80°C
  • weight: 2,8g
RKZE-1515S, Recom DC/DC converters, 2W, SIL7 housing, RKZE series

RKZE-1515S

247034 RKZE-1515S RKZE-1515S Recom DC/DC converter series RKZE. DC/DC converters (unregulated) by manufacturer Recom with an input/output insulation of 3kV DC and an efficiency of up to 88%. These devices in a SIL7 housing are suited for direct PCB mounting. We offer the types RKZE-0505S, RKZE-0505S/P, RKZE-1205S, RKZE-1212S, RKZE-1515S with single output and the type RKZE-1212D with dual output. The type RKZE-0505S/P has a short circuit protection. single & dual output output: 2W maximal voltage accuracy (load 100%): ±10% operating temperature: -40 to +80°C weight: 2,8g

Specifications

manufacturer
Manufacturer's name RKZE-1515S
Input voltage [V] 15
Output voltage [V] 15
Output current range [mA] 133
Efficiency [%] 84...86
Ripple [mVp-p] 150
Data Sheet

Unit price

7,19 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 25 units or
multiples of 25.
