RKZE-0505S/P

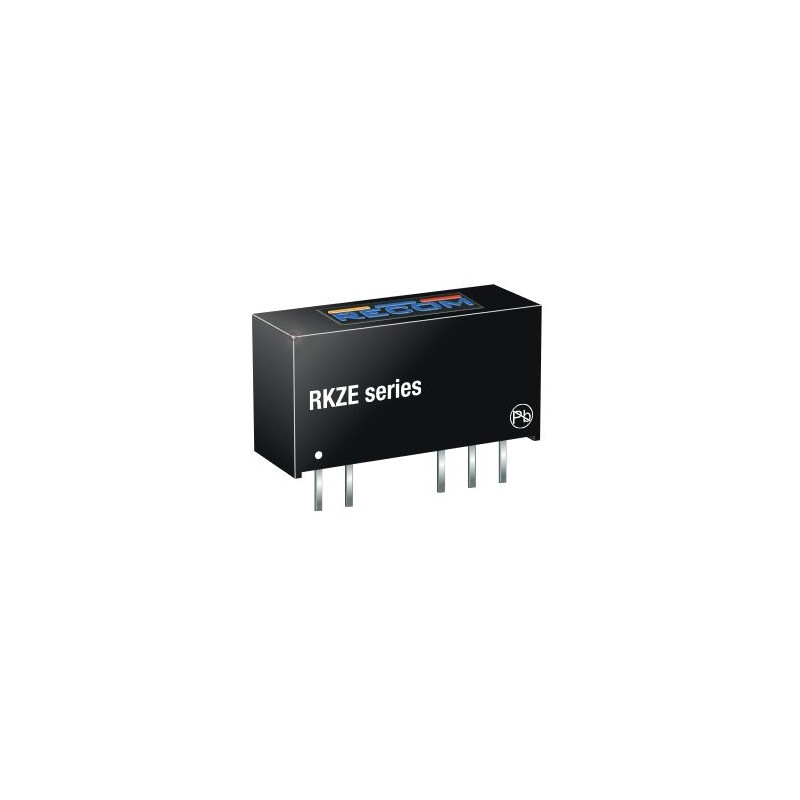

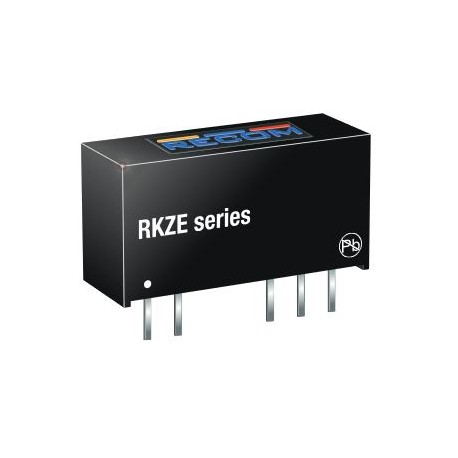

Recom DC/DC converter series RKZE

DC/DC converters (unregulated) by manufacturer Recom with an input/output insulation of 3kV DC and an efficiency of up to 88%. These devices in a SIL7 housing are suited for direct PCB mounting. We offer the types RKZE-0505S, RKZE-0505S/P, RKZE-1205S, RKZE-1212S, RKZE-1515S with single output and the type RKZE-1212D with dual output. The type RKZE-0505S/P has a short circuit protection.

  • single & dual output
  • output: 2W
  • maximal voltage accuracy (load 100%): ±10%
  • operating temperature: -40 to +80°C
  • weight: 2,8g
Recom RKZE series

RKZE-0505S/P

112600 RKZE-0505S/P RKZE-0505S/P Recom DC/DC converter series RKZE. DC/DC converters (unregulated) by manufacturer Recom with an input/output insulation of 3kV DC and an efficiency of up to 88%. These devices in a SIL7 housing are suited for direct PCB mounting. We offer the types RKZE-0505S, RKZE-0505S/P, RKZE-1205S, RKZE-1212S, RKZE-1515S with single output and the type RKZE-1212D with dual output. The type RKZE-0505S/P has a short circuit protection. single & dual output output: 2W maximal voltage accuracy (load 100%): ±10% operating temperature: -40 to +80°C weight: 2,8g

Specifications

manufacturer
Manufacturer's name RKZE-0505S/P
Input voltage [V] 5,0
Output voltage [V] 5,0
Output current range [mA] 400
Efficiency [%] 81...83
Ripple [mVp-p] 150
