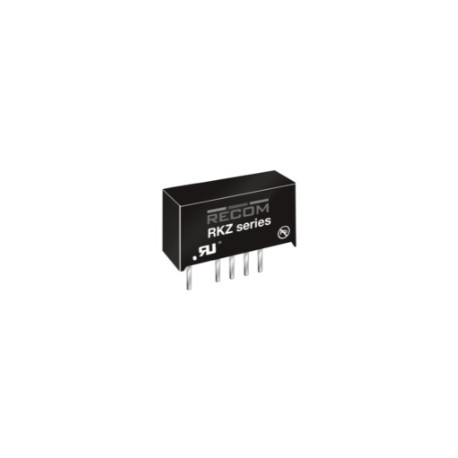

RKZ-1205S

Recom DC/DC converter series RKZ

DC/DC converter modules in a SIL7 housing with 2W and an industry standard pinout. These devices are suitable for medical applications, can be mounted directly on PCBs and comply with EN55032 class A. We offer the types RKZ-0505S, RKZ-0515S, RKZ-1205S, RKZ-1212S and RKZ-1215S with a single output, the models RKZ-0505D, RKZ-0512D, RKZ-051509D, RKZ-052005D, and RKZ-242005D with a dual output as well as the version RKZ-0505S/P with a continuous short circuit protection.

  • output voltage tolerance: ±5%
  • maximal ripple and noise: 150mVpp
  • withstand voltage I/P-O/P: 3000V DC
  • operating temperature: -40 to +90°C

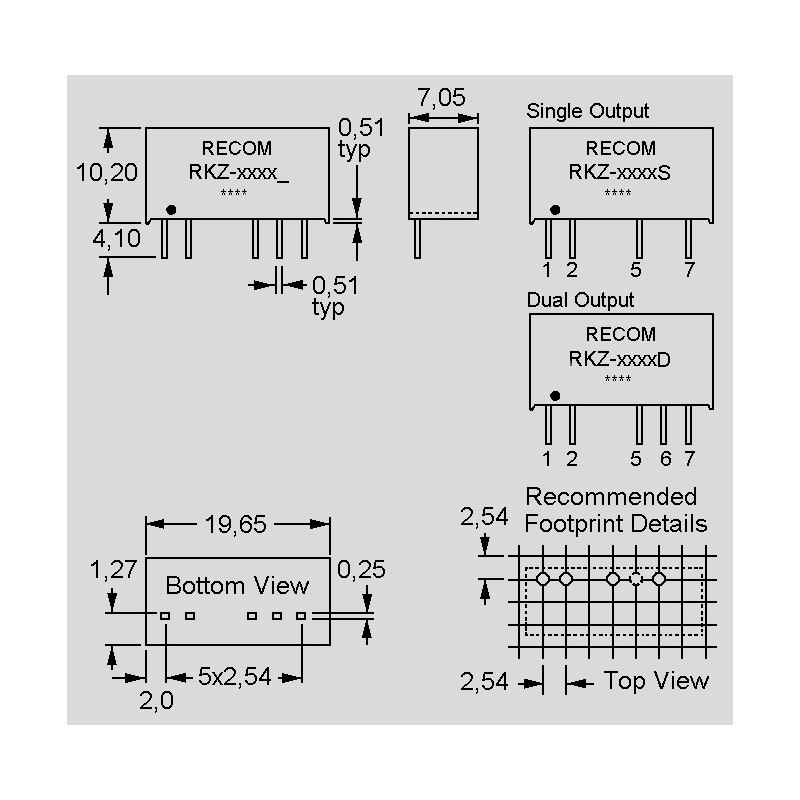

  • dimensions: 19,65x7,05x10,2mm
  • weight: 2,8g
Recom RKZ series

RKZ-1205S

43635 RKZ-1205S RKZ-1205S Recom DC/DC converter series RKZ. DC/DC converter modules in a SIL7 housing with 2W and an industry standard pinout. These devices are suitable for medical applications, can be mounted directly on PCBs and comply with EN55032 class A. We offer the types RKZ-0505S, RKZ-0515S, RKZ-1205S, RKZ-1212S and RKZ-1215S with a single output, the models RKZ-0505D, RKZ-0512D, RKZ-051509D, RKZ-052005D, and RKZ-242005D with a dual output as well as the version RKZ-0505S/P with a continuous short circuit protection. output voltage tolerance: ±5% maximal ripple and noise: 150mVpp withstand voltage I/P-O/P: 3000V DC operating temperature: -40 to +90°C dimensions: 19,65x7,05x10,2mm weight: 2,8g

Specifications

manufacturer
Manufacturer's name RKZ-1205S
Case SIL 7 case
Input voltage [V] 12
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 82...84
Data Sheet

Unit price

9,49 €

Stock: 24
Further delivery:
CW 12/2025
