RKK-0505S/H

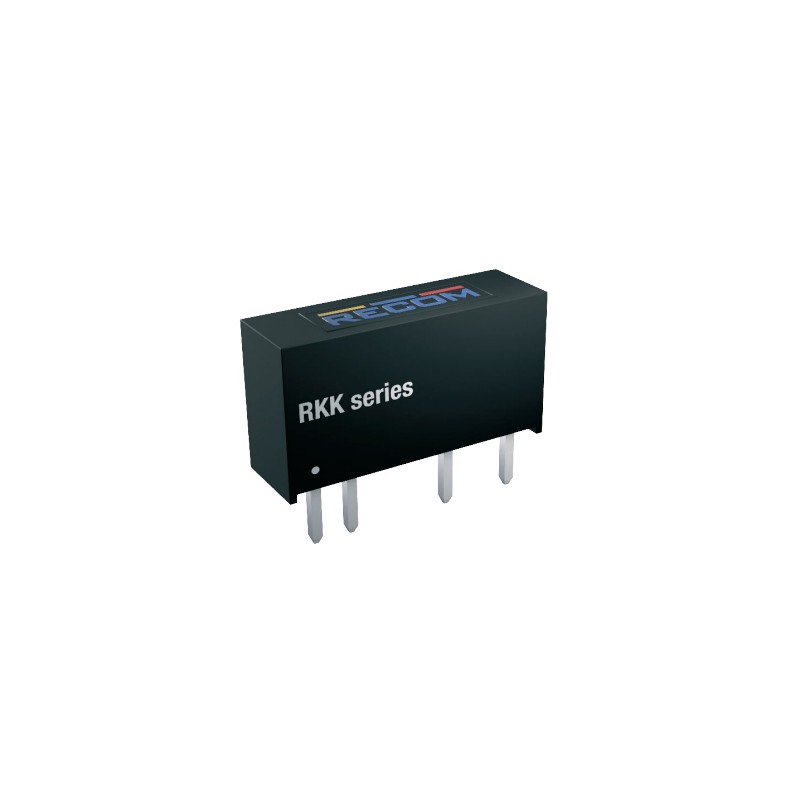

Recom DC/DC converter series RKK

DC/DC converter modules in a SIL7 housing with 1W and a 4kV DC (1s) isolation. These devices are suitable for PCB mounting and have an input voltage ratio of 1:1. They are inexpensive and comply with EN62368-1 as well as EN55032. We offer the type RKK-0505S/H of this Recom series.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 60mVpp
  • withstand voltage I/P-O/P: 4000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 19,6x6x14,3mm
  • weight: 1,7g
RKK-0505S/H, Recom DC/DC converters, 1W, SIL7 housing, RKK series

RKK-0505S/H

242798 RKK-0505S/H RKK-0505S/H Recom DC/DC converter series RKK. DC/DC converter modules in a SIL7 housing with 1W and a 4kV DC (1s) isolation. These devices are suitable for PCB mounting and have an input voltage ratio of 1:1. They are inexpensive and comply with EN62368-1 as well as EN55032. We offer the type RKK-0505S/H of this Recom series. single output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 60mVpp withstand voltage I/P-O/P: 4000V DC operating temperature: -40 to +105°C dimensions: 19,6x6x14,3mm weight: 1,7g

Specifications

manufacturer
Manufacturer's name RKK-0505S/H
Input voltage [V] 5
Output voltage [V] 5
Output current [mA] 200
Efficiency [%] 82
Data Sheet

Unit price

2,29 €

Stock: 77
Further delivery:
CW 02/2025
