RKE-0505S/H

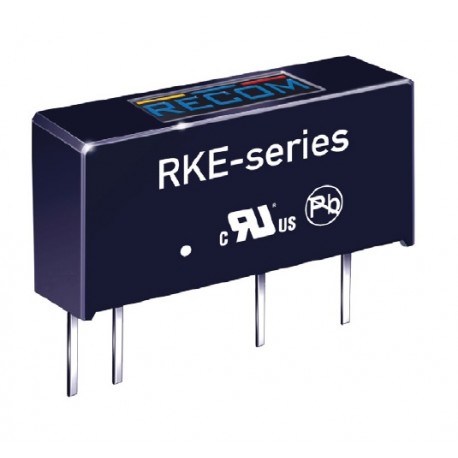

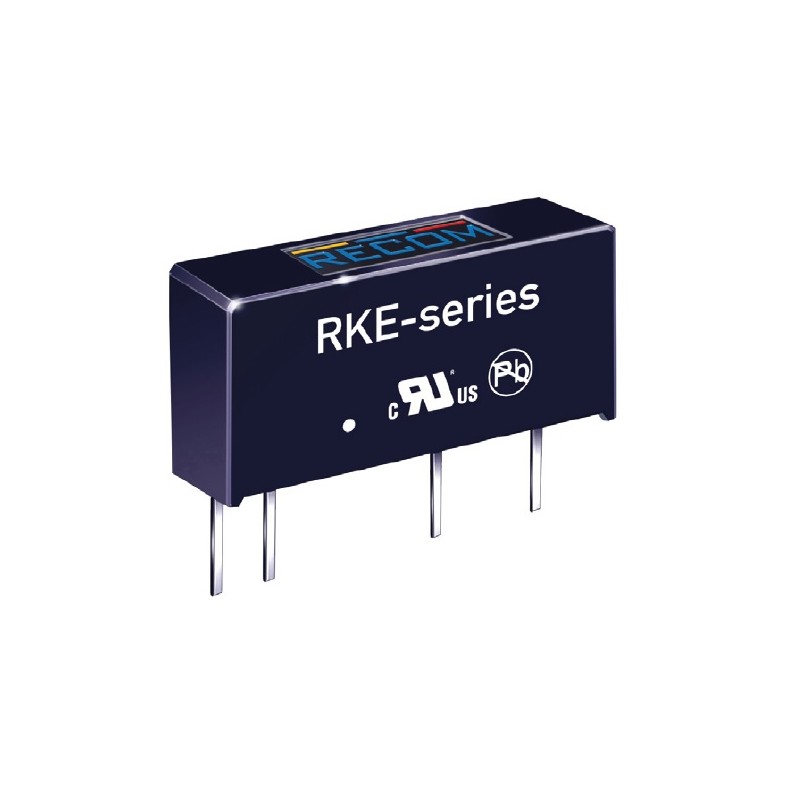

Recom DC/DC converter series RKE

These devices have got a SIL7 micro housing and are suitable for direct PCB mounting. They possess an industry standard pin-out. Their efficiency is up to 75% and their input/output insulation 4kV DC. We are offering the following article by Recom: RKE-0505S/H, RKE-1205S/H and RKE-2405S/H.

  • voltage accuracy: ±5%
  • ripple & noise, max.: 100mVpp
  • operating temperature: -40 to +85°C
RKE-series

RKE-0505S/H

108912 RKE-0505S/H RKE-0505S/H Recom DC/DC converter series RKE. These devices have got a SIL7 micro housing and are suitable for direct PCB mounting. They possess an industry standard pin-out. Their efficiency is up to 75% and their input/output insulation 4kV DC. We are offering the following article by Recom: RKE-0505S/H, RKE-1205S/H and RKE-2405S/H. voltage accuracy: ±5% ripple & noise, max.: 100mVpp operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name RKE-0505S/H
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 75
Data Sheet

Unit price

4,09 €

Stock: 1769
Further delivery:
CW 02/2025
