RI-0505S

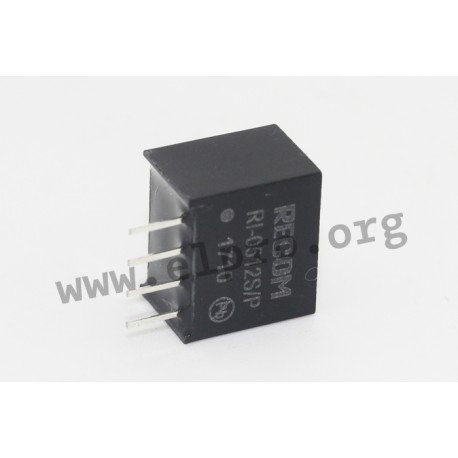

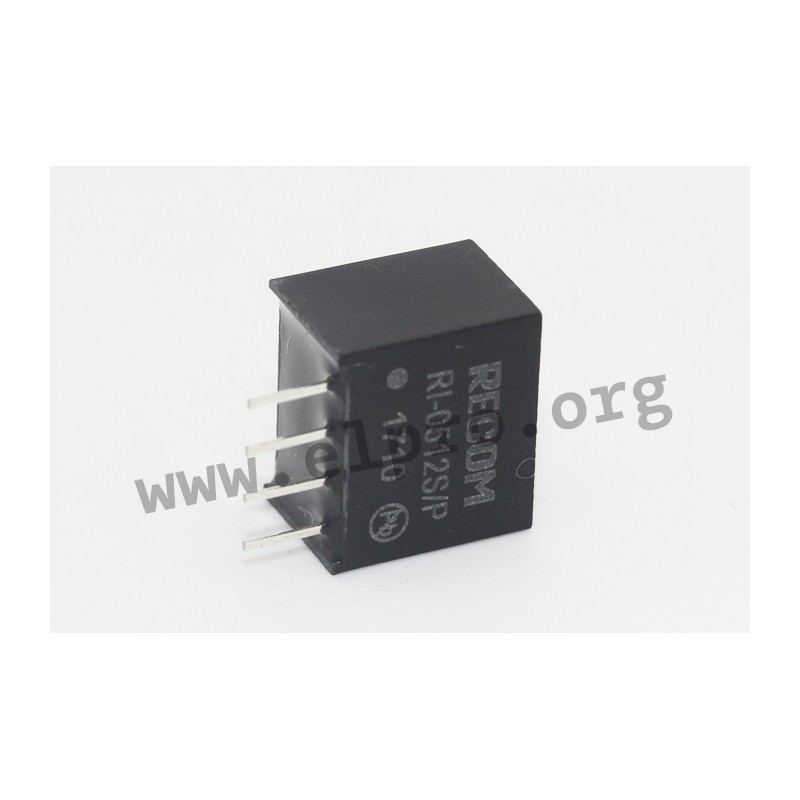

Recom DC/DC converter series RI

DC/DC converters in a SIP/SIL4 housing with 2W output power are designed for direct PCB mounting. These devices have an efficiency of up to 85% and feature an industry standard pinout, making them easy to integrate into existing systems. With fully encapsulated construction and 1kV DC isolation, they provide reliable performance even in harsh environments. The ±5% voltage accuracy (load 20 to 100%) ensures stable operation, while the maximum ripple and noise of only 200mVpp guarantees low interference levels. Operating temperature range from -40°C to +85°C makes these converters suitable for use in extreme conditions. We offer the following types of this Recom series: RI-0505S, RI-0505S/P, RI-0512S, RI-0512S/P, RI-0515S, RI-0515S/P, RI-1205S, RI-1212S, RI-1215S, RI-2405S, RI-2412S and RI-2415S.

  • single output
  • output: 2W
  • maximal ripple and noise: 200mVpp
  • operating temperature: -40 to +85°C

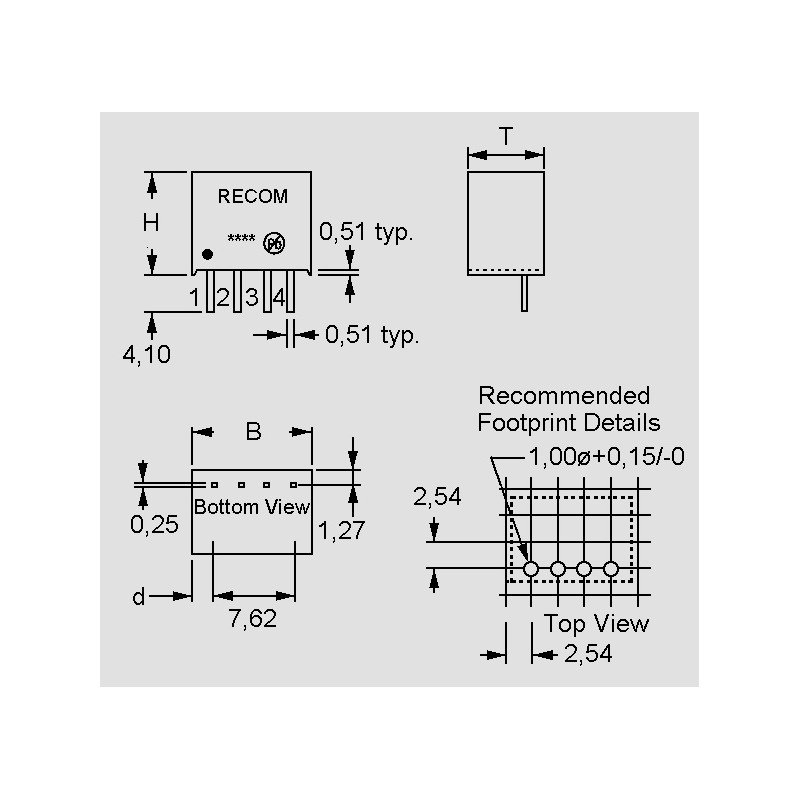

  • dimensions: 10,2x11,5x7,55mm
Recom RI series

RI-0505S

37146 RI-0505S RI-0505S Recom DC/DC converter series RI. DC/DC converters in a SIP/SIL4 housing with 2W output power are designed for direct PCB mounting. These devices have an efficiency of up to 85% and feature an industry standard pinout, making them easy to integrate into existing systems. With fully encapsulated construction and 1kV DC isolation, they provide reliable performance even in harsh environments. The ±5% voltage accuracy (load 20 to 100%) ensures stable operation, while the maximum ripple and noise of only 200mVpp guarantees low interference levels. Operating temperature range from -40°C to +85°C makes these converters suitable for use in extreme conditions. We offer the following types of this Recom series: RI-0505S, RI-0505S/P, RI-0512S, RI-0512S/P, RI-0515S, RI-0515S/P, RI-1205S, RI-1212S, RI-1215S, RI-2405S, RI-2412S and RI-2415S. single output output: 2W maximal ripple and noise: 200mVpp operating temperature: -40 to +85°C dimensions: 10,2x11,5x7,55mm

Specifications

manufacturer
Manufacturer's name RI-0505S
Case SIL 4 case
Input voltage [V] 5
Output voltage [V] 5
Output current [mA] 400
Efficiency [%] 78...83
Data Sheet

Unit price

8,19 €

Stock: 304
Further delivery:
CW 06/2025
