RI-1212S/P

Recom DC/DC converters series RI

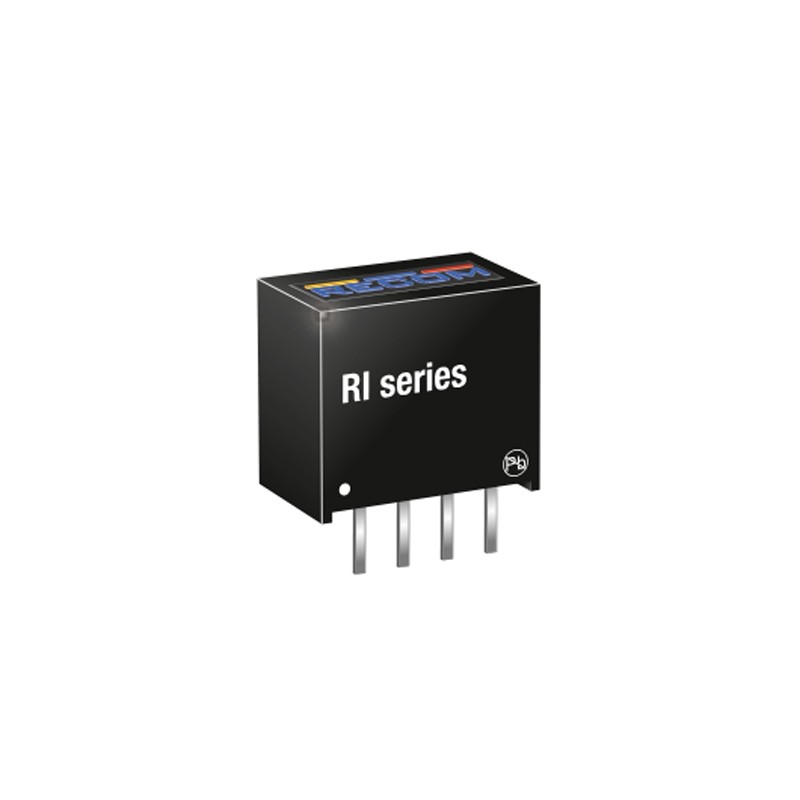

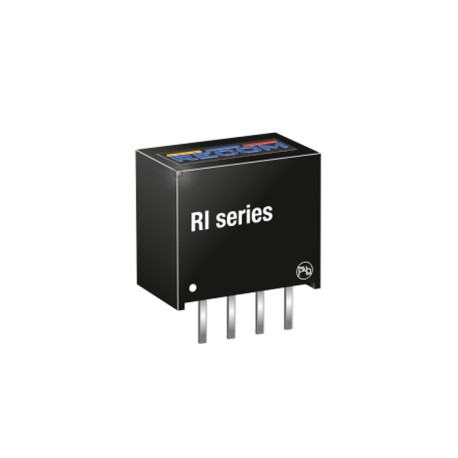

These DC/DC converter modules with a current of 2W come in a SIP/SIL4 housing and are suitable for direct PCB mounting. These devives conform with the safety norms of EN 60950-1, as well as the type RI-_/P is protected against short circuit. We offer the following types of this Recom series: RI-1212S/P, RI-1512S, and RI-2405S/P.

  • current: 2W
  • single output
  • maximal output voltage tolerance: ±5%
  • maximal ripple quality: 200 mVpp
  • operating temperature: -40 to +85°C
  • dimensions: 11,5x7,6x10,2mm
  • weight: 1,4g
RI-1212S/P, Recom DC/DC converters, 2W, SIP/SIL4 housing, RI series

RI-1212S/P

247026 RI-1212S/P RI-1212S/P Recom DC/DC converters series RI. These DC/DC converter modules with a current of 2W come in a SIP/SIL4 housing and are suitable for direct PCB mounting. These devives conform with the safety norms of EN 60950-1, as well as the type RI-_/P is protected against short circuit. We offer the following types of this Recom series: RI-1212S/P, RI-1512S, and RI-2405S/P. current: 2W single output maximal output voltage tolerance: ±5% maximal ripple quality: 200 mVpp operating temperature: -40 to +85°C dimensions: 11,5x7,6x10,2mm weight: 1,4g

Specifications

manufacturer
Manufacturer's name RI-1212S/P
Output voltage [V] 12
Input voltage range [V] 12
Output current range [mA] 167
Efficiency [%] 80...85
Data Sheet

Unit price

8,99 €

Stock: 0
Further delivery:
CW 12/2025
