RHV3-0512S/R20

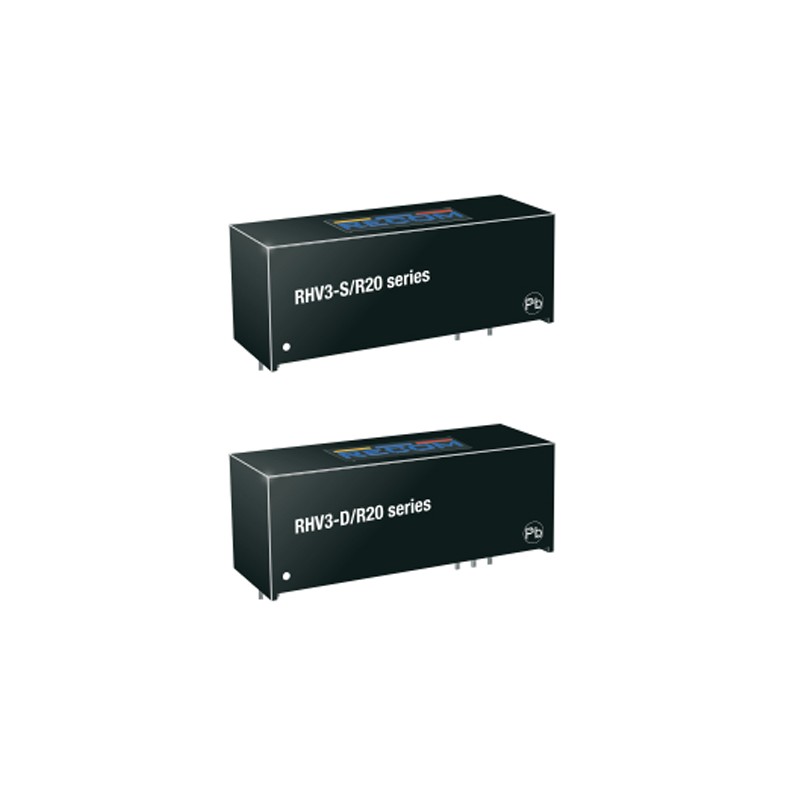

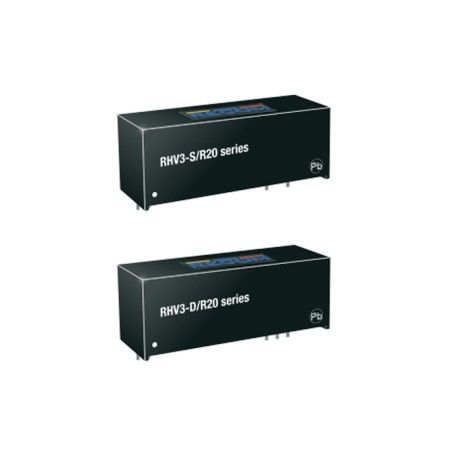

Recom DC/DC converters series RHV3

These DC/DC converter modules in a SIP16 housing have a output current of 3W and are suitable for direct PCB mounting. In type RHV3-_S  they are equipped with a single output and they conform with the safety norms EN62368-1, as well as with the EMV norms of EN55032 class B. We offer various types of this Recom series.

  • output current: 3W
  • maximal output voltage tolerance: ±5,0%
  • maximal ripple quality: 200mVpp
  • isolation voltage: 20000V DC
  • operating temperature: +40 to -80°C
  • dimensions: 45,0x15,0x17,0mm
  • weight: 19,7g
RHV3-0512S/R20, Recom DC/DC converters, 3W, SIP16 housing, RHV3 series

RHV3-0512S/R20

247050 RHV3-0512S/R20 RHV3-0512S/R20 Recom DC/DC converters series RHV3. These DC/DC converter modules in a SIP16 housing have a output current of 3W and are suitable for direct PCB mounting. In type RHV3-_S  they are equipped with a single output and they conform with the safety norms EN62368-1, as well as with the EMV norms of EN55032 class B. We offer various types of this Recom series. output current: 3W maximal output voltage tolerance: ±5,0% maximal ripple quality: 200mVpp isolation voltage: 20000V DC operating temperature: +40 to -80°C dimensions: 45,0x15,0x17,0mm weight: 19,7g

Specifications

manufacturer
Manufacturer's name RHV3-0512S/R20
Output voltage [V] 12
Input voltage range [V] 5
Output current range [mA] 250
Efficiency [%] 77
Data Sheet

Unit price

22,99 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
