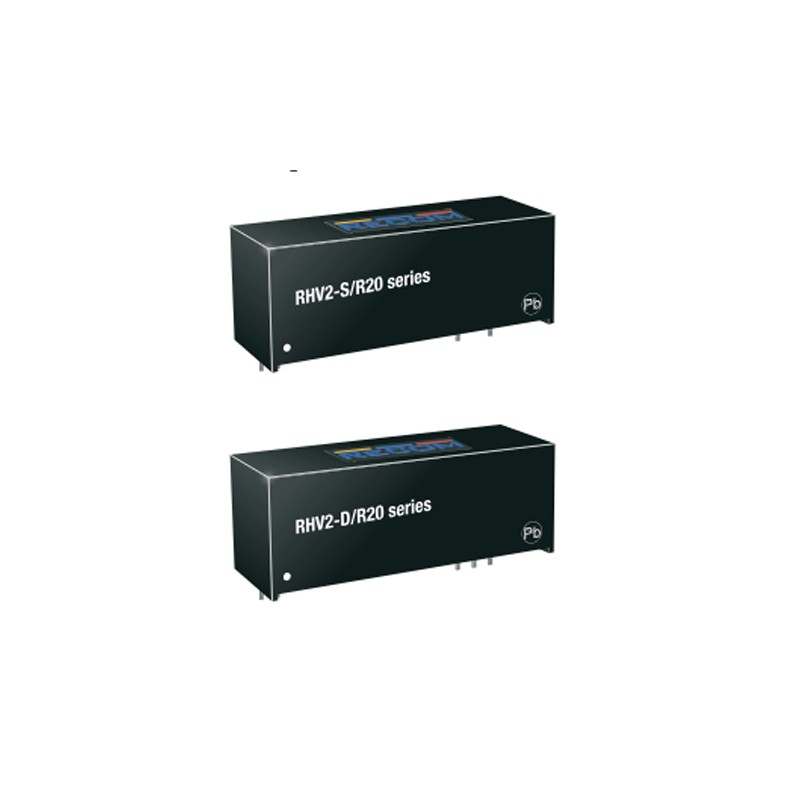

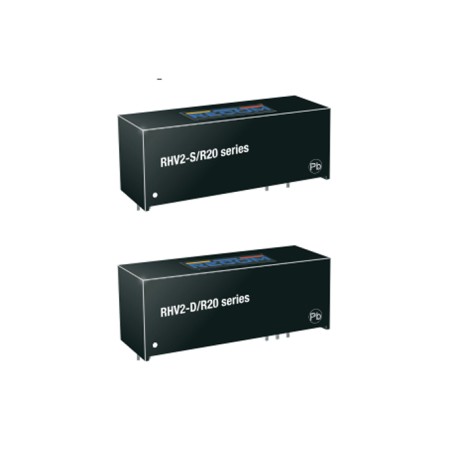

RHV2-0512S/R20

Recom DC/DC converters series RHV2

these DC/DC converter modules in a SIP16 housing have a output current of 2W and in the type RHV2-_S they are equipped with a single output. These devices are suitable dor direct PCB mounting and they conform with the safety class EN62368-1, as well as with the EMV norms of EN55032 class B. We offer varios types of this Recom series.

  • output current: 2W
  • maximal output voltage tolerance: ±5,0%
  • maximal ripple quality: 200mVpp
  • isolation voltage: 200000V DC
  • operating temperature: +40 to -85°C
  • dimensions: 45,0x15,0x17,0mm
  • weight: 19,7g
RHV2-0512S/R20, Recom DC/DC converters, 2W, SIP16 housing, RHV2 series

RHV2-0512S/R20

247041 RHV2-0512S/R20 RHV2-0512S/R20 Recom DC/DC converters series RHV2. these DC/DC converter modules in a SIP16 housing have a output current of 2W and in the type RHV2-_S they are equipped with a single output. These devices are suitable dor direct PCB mounting and they conform with the safety class EN62368-1, as well as with the EMV norms of EN55032 class B. We offer varios types of this Recom series. output current: 2W maximal output voltage tolerance: ±5,0% maximal ripple quality: 200mVpp isolation voltage: 200000V DC operating temperature: +40 to -85°C dimensions: 45,0x15,0x17,0mm weight: 19,7g

Specifications

manufacturer
Manufacturer's name RHV2-0512S/R20
Output voltage [V] 12
Input voltage range [V] 5
Output current range [mA] 167
Efficiency [%] 77
Data Sheet

Unit price

20,89 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
