RK-0505S/H6

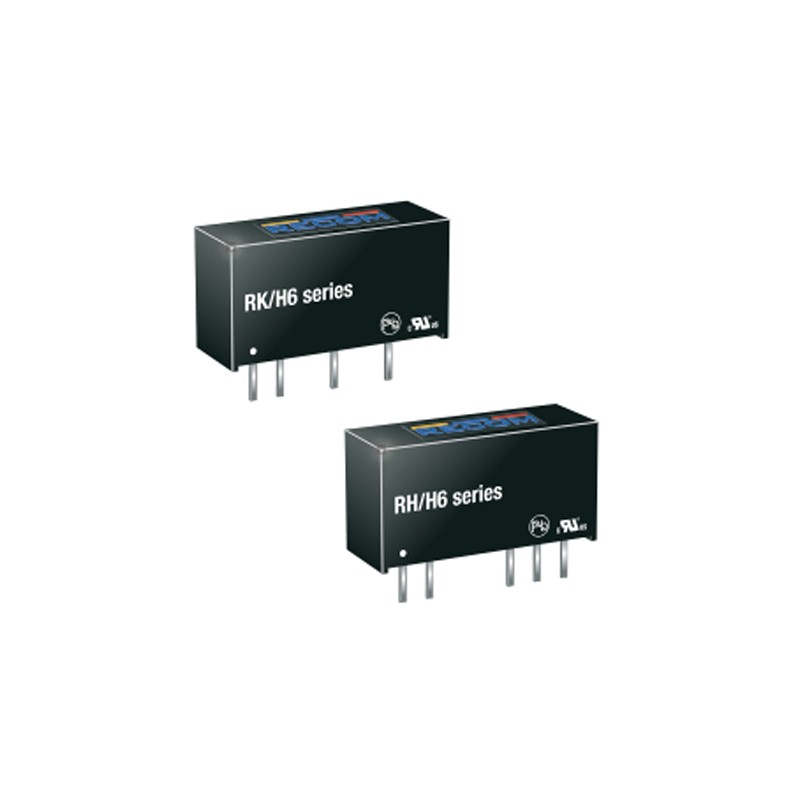

Recom DC/DC converters series RH, RK, RK/H6

These DC/DC converter modules in a SIP7 housing are suitable for PCB mounting and the type RK-_/P has a continual short circuit protection. They conform with the EVM norms EN55032 class A and B, as well as with the safety norms UL 60950-1, EN 60950-1, UL 62368-1, and EN 62368-1. We offer the following types of this Recom series: RH-1215D/H6, RK-0505S/H6, RK-053.3S/H6, RK-1205S/H6, RK-1215S, and RK-2405S/H6.

  • single and dual output
  • output current: 1W
  • maximal output tolerance: ±5%
  • maximal ripple quality: 100mVp-p
  • isolation voltage I/P-O/P: 3000V DC/1s (Rx-_), 6400V DC/1s (Rx-_/H6)
  • operating temperature: -40 to +90°C
  • dimensions: 19,65x7,05x10,2mm
  • weight: 2,7g

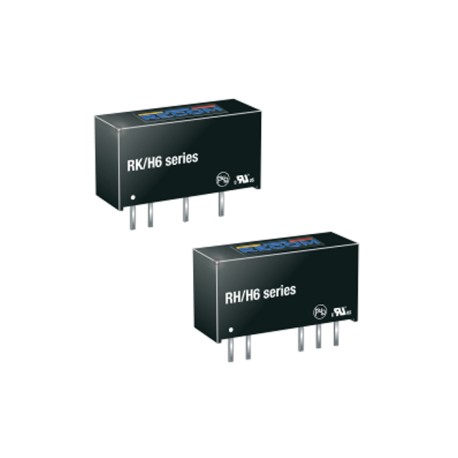

RK-0505S/H6, Recom DC/DC converters, 1W, SIP/SIL7 housing, RH, RK, RK/H6 series

RK-0505S/H6

247013 RK-0505S/H6 RK-0505S/H6 Recom DC/DC converters series RH, RK, RK/H6. These DC/DC converter modules in a SIP7 housing are suitable for PCB mounting and the type RK-_/P has a continual short circuit protection. They conform with the EVM norms EN55032 class A and B, as well as with the safety norms UL 60950-1, EN 60950-1, UL 62368-1, and EN 62368-1. We offer the following types of this Recom series: RH-1215D/H6, RK-0505S/H6, RK-053.3S/H6, RK-1205S/H6, RK-1215S, and RK-2405S/H6. single and dual output output current: 1W maximal output tolerance: ±5% maximal ripple quality: 100mVp-p isolation voltage I/P-O/P: 3000V DC/1s (Rx-_), 6400V DC/1s (Rx-_/H6) operating temperature: -40 to +90°C dimensions: 19,65x7,05x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name RK-0505S/H6
Output voltage [V] 5
Input voltage range [V] 5
Efficiency [%] 74...88
Output current [A] 200
Data Sheet

Unit price

9,19 €

Stock: 0
Further delivery:
CW 20/2025
