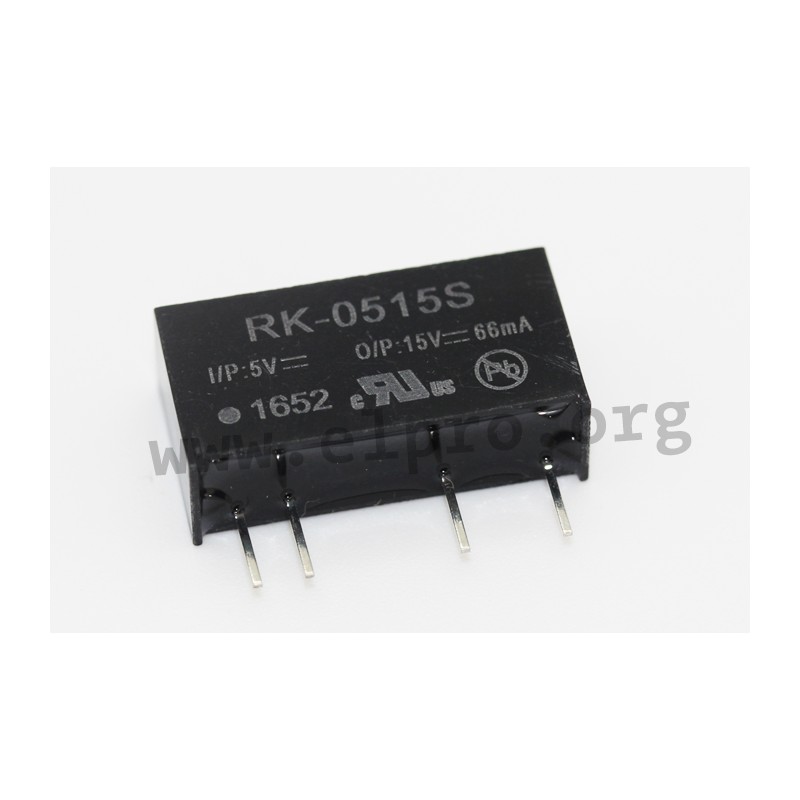

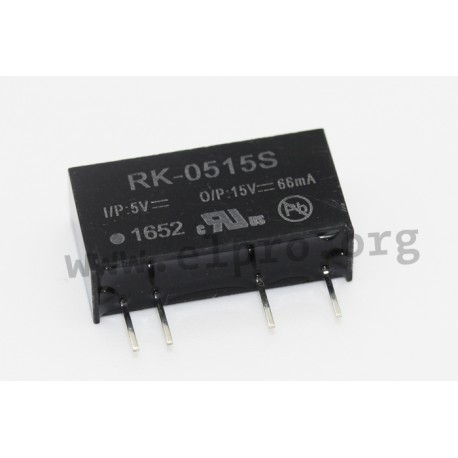

RK-0505S

Recom DC/DC converter series RH and RK

These devices have got a SIL7 micro housing and are suitable for direct PCB mounting. They have an industry standard pin-out and their efficiency is up to 84%. The converter modules are approved for medical and IGBT applications and their input/output insulation is 3kV DC. We offer various types of this Recom series.

  • RK-_S: single output
  • RH-_D: dual output
  • RK-_/_P: continuous short circuit protection
  • voltage accuracy: ±5%
  • ripple & noise, max.: 100mVpp
  • operating temperature: -40 to +90°C
DC/DC converter modules series RK

RK-0505S

108903 RK-0505S RK-0505S Recom DC/DC converter series RH and RK. These devices have got a SIL7 micro housing and are suitable for direct PCB mounting. They have an industry standard pin-out and their efficiency is up to 84%. The converter modules are approved for medical and IGBT applications and their input/output insulation is 3kV DC. We offer various types of this Recom series.  RK-_S: single output RH-_D: dual output RK-_/_P: continuous short circuit protection voltage accuracy: ±5% ripple & noise, max.: 100mVpp operating temperature: -40 to +90°C

Specifications

manufacturer
Manufacturer's name RK-0505S
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 70...78
Data Sheet

Unit price

7,79 €

Stock: 208
Further delivery:
CW 06/2025
