RFMM-0505S

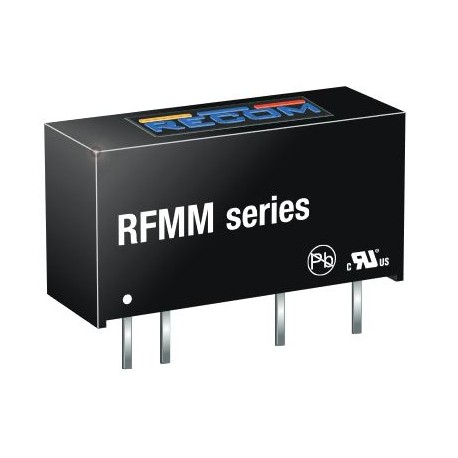

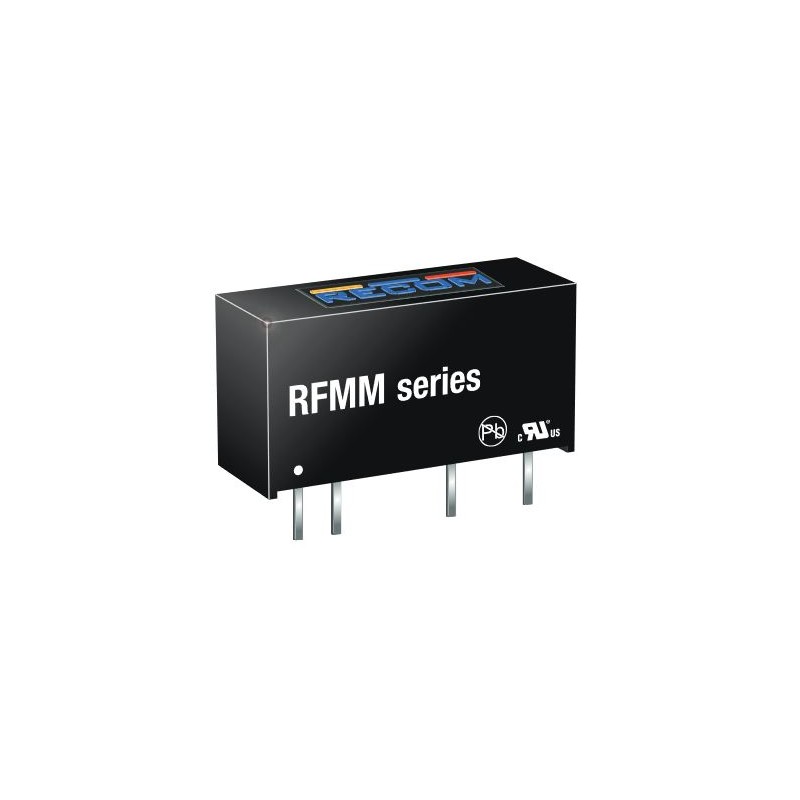

Recom DC/DC converter series RFMM

DC/DC converters (unregulated) with industry standard pinout. These devices in a SIL7 housing conform to EN55032 and are suitable for direct PCB mounting. They have an input/output insulation of 4kV DC and an efficiency of up to 80%. We offer the type RFMM-0505S of this Recom series.

  • single output
  • output: 1W
  • maximal voltage accuracy (load 100%): ±10%
  • operating temperature: -40 to +85°C
  • weight: 2,7g
Recom RFMM series

RFMM-0505S

112598 RFMM-0505S RFMM-0505S Recom DC/DC converter series RFMM. DC/DC converters (unregulated) with industry standard pinout. These devices in a SIL7 housing conform to EN55032 and are suitable for direct PCB mounting. They have an input/output insulation of 4kV DC and an efficiency of up to 80%. We offer the type RFMM-0505S of this Recom series. single outputoutput: 1Wmaximal voltage accuracy (load 100%): ±10%operating temperature: -40 to +85°Cweight: 2,7g

Specifications

manufacturer
Manufacturer's name RFMM-0505S
Output voltage [V] 5,0
Output current range [mA] 200
Efficiency [%] 80
Ripple [mVp-p] 100
Input voltage [V DC] 5,0
Data Sheet

Unit price

2,29 €

Stock: 1219
Further delivery:
CW 02/2025
