RFM-0505S

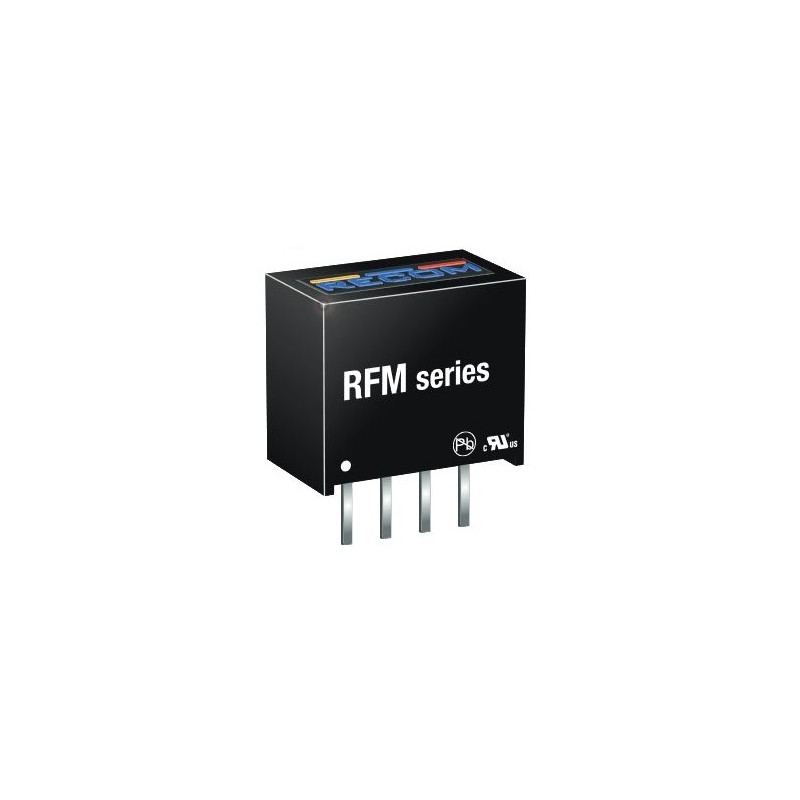

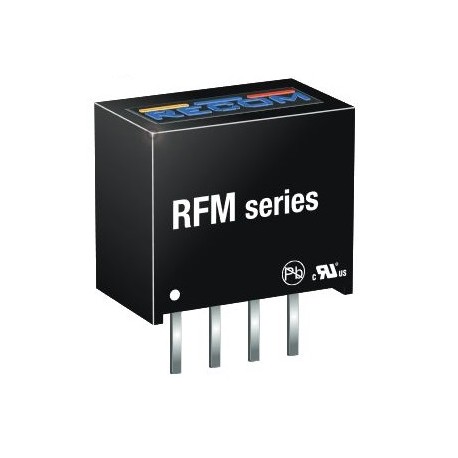

Recom DC/DC converter series RFM

DC/DC converters (unregulated) with industry standard pinout by manufacturer Recom. These devices in a SIL4 housing have an efficiency of up to 79%, an input/output insulation of 1kV DC and are suited for direct PCB mounting. They conform to EN55032. We offer the type RFM-0505S in our web shop.

  • single output
  • output: 1W
  • maximal voltage accuracy (load 100%): ±10%
  • operating temperature: -40 to +85°C
  • weight: 1,4g
Recom RFM series

RFM-0505S

112597 RFM-0505S RFM-0505S Recom DC/DC converter series RFM. DC/DC converters (unregulated) with industry standard pinout by manufacturer Recom. These devices in a SIL4 housing have an efficiency of up to 79%, an input/output insulation of 1kV DC and are suited for direct PCB mounting. They conform to EN55032. We offer the type RFM-0505S in our web shop. single output output: 1W maximal voltage accuracy (load 100%): ±10% operating temperature: -40 to +85°C weight: 1,4g

Specifications

manufacturer
Manufacturer's name RFM-0505S
Output voltage [V] 5,0
Output current range [mA] 200
Efficiency [%] 79
Ripple [mVp-p] 10
Input voltage [V DC] 5,0
Data Sheet

Unit price

1,82 €

Stock: 1470
Further delivery:
CW 02/2025
