REM6E-2412S/R8/A

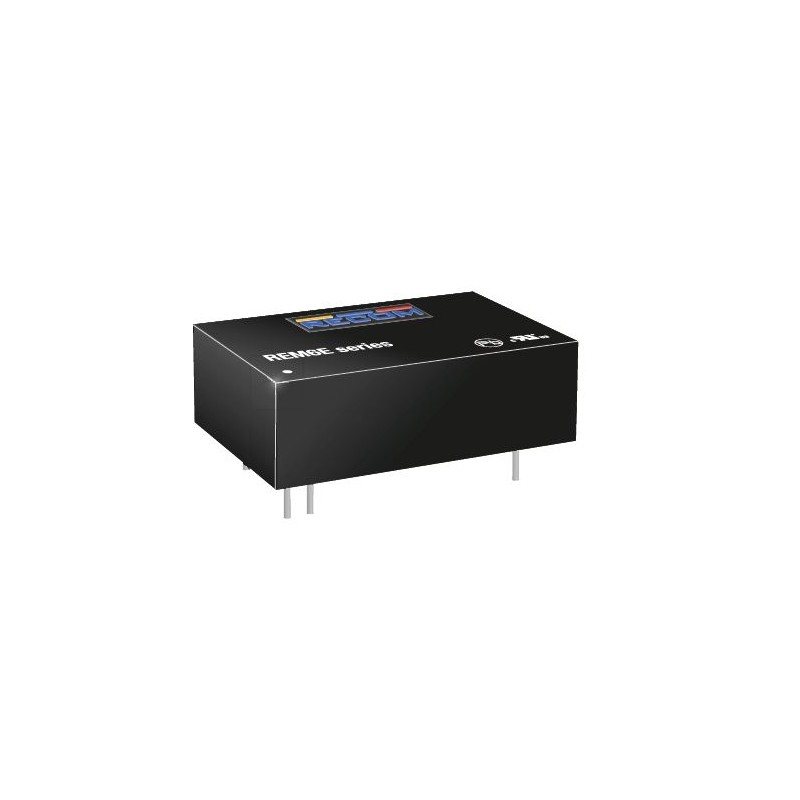

Recom DC/DC converter series REM6E

DC/DC converters by Recom in a DIL24 or SMD housing. These devices with a working voltage isolation (2MOPP, 250V AC) are suitable for medical applications and direct PCB mounting. They have an efficiency of up to 83%, an isolation of 8kV DC and a standard input voltage ratio of 2:1. We offer the types REM6E-1212S/R8/A, REM6E-1212S/R6/A/SMD and REM6E-2412S/R8/A, REM6E-2412S/R6/A/SMD of this series.

  • single output
  • output: 6W
  • voltage accuracy, typ.: ±1,5%
  • temperature range: -40 to +75°C
  • weight: 14g

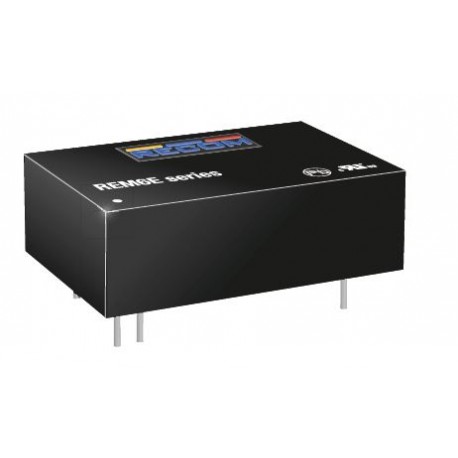

Recom REM6 series

REM6E-2412S/R8/A

112609 REM6E-2412S/R8/A REM6E-2412S/R8/A Recom DC/DC converter series REM6E. DC/DC converters by Recom in a DIL24 or SMD housing. These devices with a working voltage isolation (2MOPP, 250V AC) are suitable for medical applications and direct PCB mounting. They have an efficiency of up to 83%, an isolation of 8kV DC and a standard input voltage ratio of 2:1. We offer the types REM6E-1212S/R8/A, REM6E-1212S/R6/A/SMD and REM6E-2412S/R8/A, REM6E-2412S/R6/A/SMD of this series. single output output: 6W voltage accuracy, typ.: ±1,5% temperature range: -40 to +75°C weight: 14g

Specifications

manufacturer
Manufacturer's name REM6E-2412S/R8/A
Input voltage [V] 24
Output voltage [V] 12
Output current range [mA] 500
Efficiency [%] 83
Ripple [mVp-p] 150

Unit price

41,09 €

Stock: 60
Further delivery:
CW 12/2025
